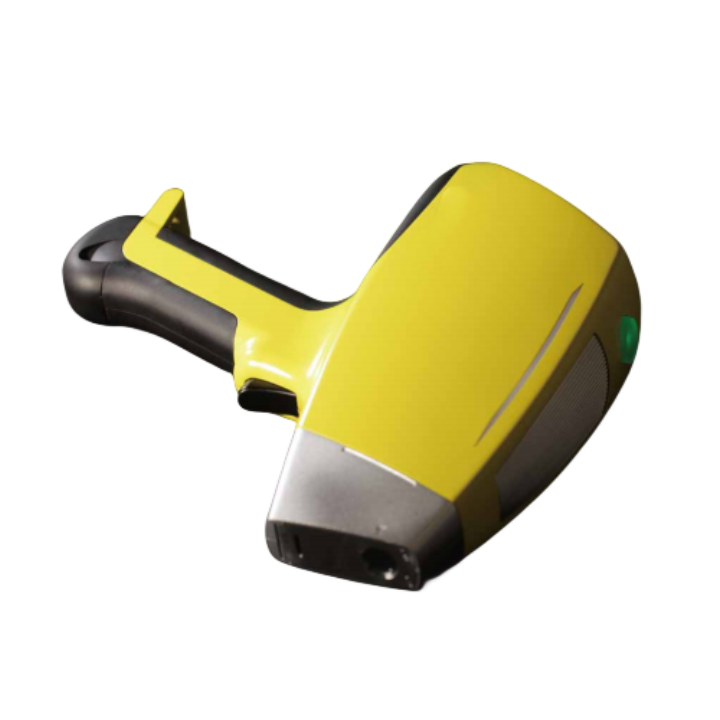

XRF Industrial Handheld Jewelry Environmental Assessment Analyzer
The handheld XRF analyzer is a powerful handheld XRF equipment launched by our company, featuring fast detection, ruggedness and small convenience. It can help users obtain laboratory - comparable results in the field environment. It is widely used in waste recycling, environmental assessment, RoHS compliance, consumer product safety, metal materials, metal jewelry and other fields.
Advantage
High performance configuration
Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.
High performance configuration
Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.
NDT
It does not damage or affect the performance of the tested object, does not damage the internal tissue of the tested object, and has no damage in the entire testing process.
Peltier refrigeration
The advanced Peltier electric refrigeration method does not require liquid nitrogen, which reduces the complexity of equipment use and saves manpower and equipment maintenance costs.
Data transmission
USB, WIFI, wireless Bluetooth and other methods for data transmission.
Custom
The files can be in EXCEL, PDF and other formats, and users can create custom test reports: including company logo, spectrum and other sample information.
Safety
Fully enclosed metal case and anti-leakage protection switch, more scientific in design, coordination of software and hardware, electromechanical linkage, radiation safety in line with the requirements of national standards GB18871-2002 and GBZ115-2002.
Application scenario
Metal materials
PMI, QA/QC, waste sorting, etc.
Environmental assessment
soil detection, solid waste detection
Consumable safety screening
RoHS compliance screening
Geology and chemistry
mineral exploration, ore detection
Precious metal detection
jewelry/precious metal identification, automobile catalyst detection
Product parameter
Weight
1.6KG (with battery)
Size
254×79×280mm（L×W×H）
Excitation source
Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional)
Detection Range
Mg—U
Display System
4.3 inches industrial grade resistance touch screen
Automatically adjust display brightness according to external environment
Data Processing
Built-in 32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Heat dissipation
T-slot radiator
Security
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection

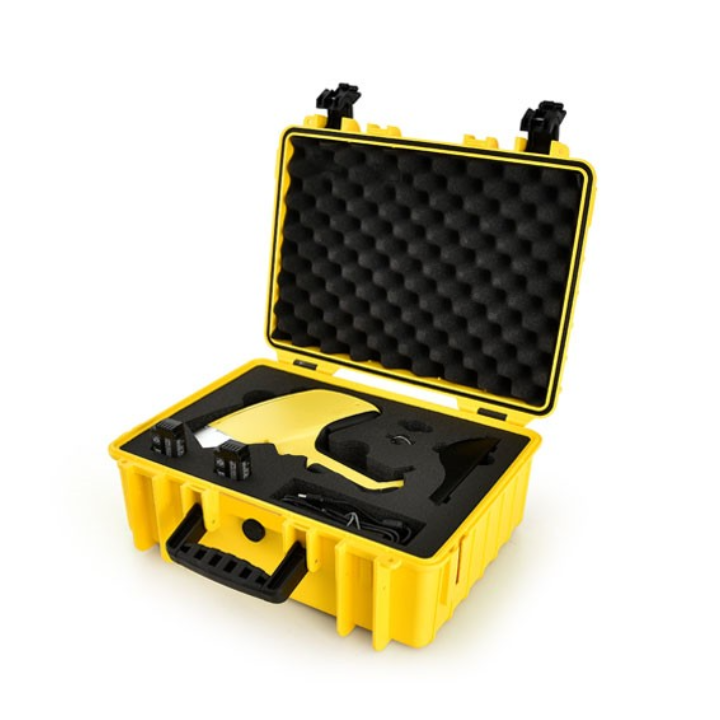

Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
Power Supply System
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
The handheld XRF analyzer is a powerful handheld XRF equipment launched by our company, featuring fast detection, ruggedness and small convenience. It can help users obtain laboratory - comparable results in the field environment. It is widely used in waste recycling, environmental assessment, RoHS compliance, consumer product safety, metal materials, metal jewelry and other fields.
Advantage
High performance configuration
Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.
High performance configuration
Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.
NDT
It does not damage or affect the performance of the tested object, does not damage the internal tissue of the tested object, and has no damage in the entire testing process.
Peltier refrigeration
The advanced Peltier electric refrigeration method does not require liquid nitrogen, which reduces the complexity of equipment use and saves manpower and equipment maintenance costs.
Data transmission
USB, WIFI, wireless Bluetooth and other methods for data transmission.
Custom
The files can be in EXCEL, PDF and other formats, and users can create custom test reports: including company logo, spectrum and other sample information.
Safety
Fully enclosed metal case and anti-leakage protection switch, more scientific in design, coordination of software and hardware, electromechanical linkage, radiation safety in line with the requirements of national standards GB18871-2002 and GBZ115-2002.
Application scenario
Metal materials
PMI, QA/QC, waste sorting, etc.
Environmental assessment
soil detection, solid waste detection
Consumable safety screening
RoHS compliance screening
Geology and chemistry
mineral exploration, ore detection
Precious metal detection
jewelry/precious metal identification, automobile catalyst detection
Product parameter
Weight
1.6KG (with battery)
Size
254×79×280mm（L×W×H）
Excitation source
Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional)
Detection Range
Mg—U
Display System
4.3 inches industrial grade resistance touch screen
Automatically adjust display brightness according to external environment
Data Processing
Built-in 32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Heat dissipation
T-slot radiator
Security
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
Power Supply System
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
The handheld XRF analyzer is a powerful handheld XRF equipment launched by our company, featuring fast detection, ruggedness and small convenience. It can help users obtain laboratory - comparable results in the field environment. It is widely used in waste recycling, environmental assessment, RoHS compliance, consumer product safety, metal materials, metal jewelry and other fields.
Advantage
High performance configuration
Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.
High performance configuration
Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.
NDT
It does not damage or affect the performance of the tested object, does not damage the internal tissue of the tested object, and has no damage in the entire testing process.
Peltier refrigeration
The advanced Peltier electric refrigeration method does not require liquid nitrogen, which reduces the complexity of equipment use and saves manpower and equipment maintenance costs.
Data transmission
USB, WIFI, wireless Bluetooth and other methods for data transmission.
Custom
The files can be in EXCEL, PDF and other formats, and users can create custom test reports: including company logo, spectrum and other sample information.
Safety
Fully enclosed metal case and anti-leakage protection switch, more scientific in design, coordination of software and hardware, electromechanical linkage, radiation safety in line with the requirements of national standards GB18871-2002 and GBZ115-2002.
Application scenario
Metal materials
PMI, QA/QC, waste sorting, etc.
Environmental assessment
soil detection, solid waste detection
Consumable safety screening
RoHS compliance screening
Geology and chemistry
mineral exploration, ore detection
Precious metal detection
jewelry/precious metal identification, automobile catalyst detection
Product parameter
Weight
1.6KG (with battery)
Size
254×79×280mm（L×W×H）
Excitation source
Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional)
Detection Range
Mg—U
Display System
4.3 inches industrial grade resistance touch screen
Automatically adjust display brightness according to external environment
Data Processing
Built-in 32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Heat dissipation
T-slot radiator
Security
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
Power Supply System
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
The handheld XRF analyzer is a powerful handheld XRF equipment launched by our company, featuring fast detection, ruggedness and small convenience. It can help users obtain laboratory - comparable results in the field environment. It is widely used in waste recycling, environmental assessment, RoHS compliance, consumer product safety, metal materials, metal jewelry and other fields.
Advantage
High performance configuration
Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.
High performance configuration
Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.
NDT
It does not damage or affect the performance of the tested object, does not damage the internal tissue of the tested object, and has no damage in the entire testing process.
Peltier refrigeration
The advanced Peltier electric refrigeration method does not require liquid nitrogen, which reduces the complexity of equipment use and saves manpower and equipment maintenance costs.
Data transmission
USB, WIFI, wireless Bluetooth and other methods for data transmission.
Custom
The files can be in EXCEL, PDF and other formats, and users can create custom test reports: including company logo, spectrum and other sample information.
Safety
Fully enclosed metal case and anti-leakage protection switch, more scientific in design, coordination of software and hardware, electromechanical linkage, radiation safety in line with the requirements of national standards GB18871-2002 and GBZ115-2002.
Application scenario
Metal materials
PMI, QA/QC, waste sorting, etc.
Environmental assessment
soil detection, solid waste detection
Consumable safety screening
RoHS compliance screening
Geology and chemistry
mineral exploration, ore detection
Precious metal detection
jewelry/precious metal identification, automobile catalyst detection
Product parameter
Weight
1.6KG (with battery)
Size
254×79×280mm（L×W×H）
Excitation source
Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional)
Detection Range
Mg—U
Display System
4.3 inches industrial grade resistance touch screen
Automatically adjust display brightness according to external environment
Data Processing
Built-in 32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Heat dissipation
T-slot radiator
Security
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
Power Supply System
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
The handheld XRF analyzer is a powerful handheld XRF equipment launched by our company, featuring fast detection, ruggedness and small convenience. It can help users obtain laboratory - comparable results in the field environment. It is widely used in waste recycling, environmental assessment, RoHS compliance, consumer product safety, metal materials, metal jewelry and other fields.
Advantage
High performance configuration
Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.
High performance configuration
Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyze key elements with high content such as Cr,Niand Mo.
NDT
It does not damage or affect the performance of the tested object, does not damage the internal tissue of the tested object, and has no damage in the entire testing process.
Peltier refrigeration
The advanced Peltier electric refrigeration method does not require liquid nitrogen, which reduces the complexity of equipment use and saves manpower and equipment maintenance costs.
Data transmission
USB, WIFI, wireless Bluetooth and other methods for data transmission.
Custom
The files can be in EXCEL, PDF and other formats, and users can create custom test reports: including company logo, spectrum and other sample information.
Safety
Fully enclosed metal case and anti-leakage protection switch, more scientific in design, coordination of software and hardware, electromechanical linkage, radiation safety in line with the requirements of national standards GB18871-2002 and GBZ115-2002.
Application scenario
Metal materials
PMI, QA/QC, waste sorting, etc.
Environmental assessment
soil detection, solid waste detection
Consumable safety screening
RoHS compliance screening
Geology and chemistry
mineral exploration, ore detection
Precious metal detection
jewelry/precious metal identification, automobile catalyst detection
Product parameter
|
Weight |
1.6KG (with battery) |
|
Size |
254×79×280mm（L×W×H） |
|
Excitation source |
Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional) |
|
Detection Range |
Mg—U |
|
Display System |
4.3 inches industrial grade resistance touch screen Automatically adjust display brightness according to external environment |
|
Data Processing |
Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
|
Heat dissipation |
T-slot radiator |
|
Security |
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope |
|
Power Supply System |
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations A single battery can work for about 8 hours |
IPv6 network supported
