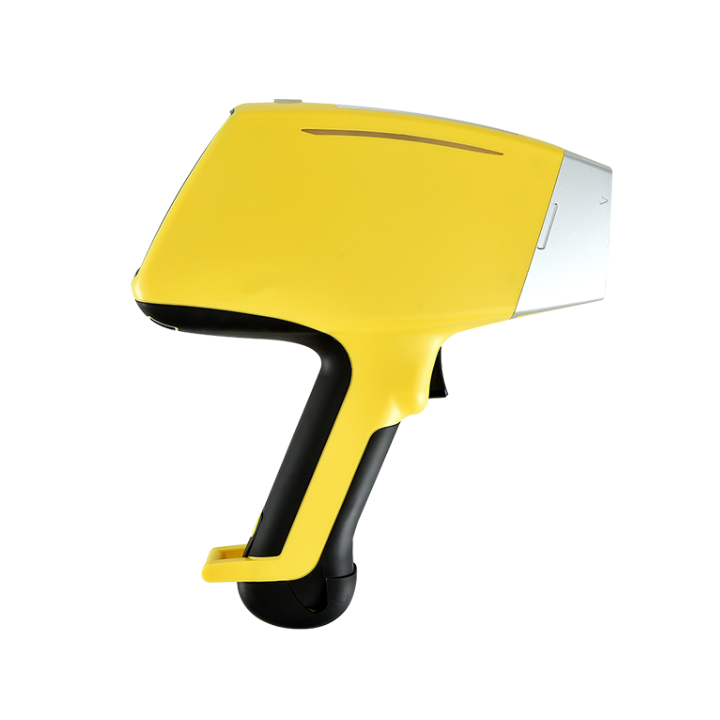

Industrial Handheld Car Catalyst Portable Analyzer
Product introduction
Most of catalyst for Pt and Pd, Rh, and other rare metals, different types of catalytic converter contains different levels and types of precious metals, due to which the value of precious metals, for it is very important for the quality detection and recovery appraisal, therefore the precious metal content of the ternary catalysts, test equipment is necessary.
TrueX handheld car catalyst analyzer can be used to accurately measure platinum, palladium, rhodium and other elements in terraditional catalytic converters, providing rapid material composition analysis information in the field, with high accuracy, speed, and nondestructive advantages.
Advantage
Fast and efficient
It can detect the element composition and content of sample in a few seconds.
Light and durable
The weight is only 1.6kg, specially designed for the site, easy to carry.
Easy to operate
Large and bright touch screen, user-friendly interface, simple operation, easy to use staff.
Transmission
Multiple methods for data transmission, support export report personalized Settings.
Application scenario
Catalytic products raw material testing
Ternary catalysis product identification
Quality control in catalytic product manufacturing
Recycling and evaluation of three-way catalytic converter
Product parameter
Weight
1.6KG (with Battery)
Size
254×79×280mm（L×W×H）
Excitation source
Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional)
Detection Range
Pt, Pd, Rh and other elements
Detector
Si-pin/SDD
Display
4.3 inches industrial grade resistance touch screen
Automatically adjust display brightness according to external environment
Data Processing
Built-in 32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Lauguage
Chinese, English, etc.
Security
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
Power Supply
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery
the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
Product introduction
Most of catalyst for Pt and Pd, Rh, and other rare metals, different types of catalytic converter contains different levels and types of precious metals, due to which the value of precious metals, for it is very important for the quality detection and recovery appraisal, therefore the precious metal content of the ternary catalysts, test equipment is necessary.
TrueX handheld car catalyst analyzer can be used to accurately measure platinum, palladium, rhodium and other elements in terraditional catalytic converters, providing rapid material composition analysis information in the field, with high accuracy, speed, and nondestructive advantages.
Advantage
Fast and efficient
It can detect the element composition and content of sample in a few seconds.
Light and durable
The weight is only 1.6kg, specially designed for the site, easy to carry.
Easy to operate
Large and bright touch screen, user-friendly interface, simple operation, easy to use staff.
Transmission
Multiple methods for data transmission, support export report personalized Settings.
Application scenario
Catalytic products raw material testing
Ternary catalysis product identification
Quality control in catalytic product manufacturing
Recycling and evaluation of three-way catalytic converter
Product parameter
Weight
1.6KG (with Battery)
Size
254×79×280mm（L×W×H）
Excitation source
Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional)
Detection Range
Pt, Pd, Rh and other elements
Detector
Si-pin/SDD
Display
4.3 inches industrial grade resistance touch screen
Automatically adjust display brightness according to external environment
Data Processing
Built-in 32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Lauguage
Chinese, English, etc.
Security
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
Power Supply
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery
the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
Product introduction
Most of catalyst for Pt and Pd, Rh, and other rare metals, different types of catalytic converter contains different levels and types of precious metals, due to which the value of precious metals, for it is very important for the quality detection and recovery appraisal, therefore the precious metal content of the ternary catalysts, test equipment is necessary.
TrueX handheld car catalyst analyzer can be used to accurately measure platinum, palladium, rhodium and other elements in terraditional catalytic converters, providing rapid material composition analysis information in the field, with high accuracy, speed, and nondestructive advantages.
Advantage
Fast and efficient
It can detect the element composition and content of sample in a few seconds.
Light and durable
The weight is only 1.6kg, specially designed for the site, easy to carry.
Easy to operate
Large and bright touch screen, user-friendly interface, simple operation, easy to use staff.
Transmission
Multiple methods for data transmission, support export report personalized Settings.
Application scenario
Catalytic products raw material testing
Ternary catalysis product identification
Quality control in catalytic product manufacturing
Recycling and evaluation of three-way catalytic converter
Product parameter
|
Weight |
1.6KG (with Battery) |
|
Size |
254×79×280mm（L×W×H） |
|
Excitation source |
Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional) |
|
Detection Range |
Pt, Pd, Rh and other elements |
|
Detector |
Si-pin/SDD |
|
Display |
4.3 inches industrial grade resistance touch screen Automatically adjust display brightness according to external environment |
|
Data Processing |
Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
|
Lauguage |
Chinese, English, etc. |
|
Security |
Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope |
|
Power Supply |
Intelligent battery with MSBUS, can directly check the remaining capacity of the battery the battery complies with the air dangerous goods transport regulations A single battery can work for about 8 hours |
