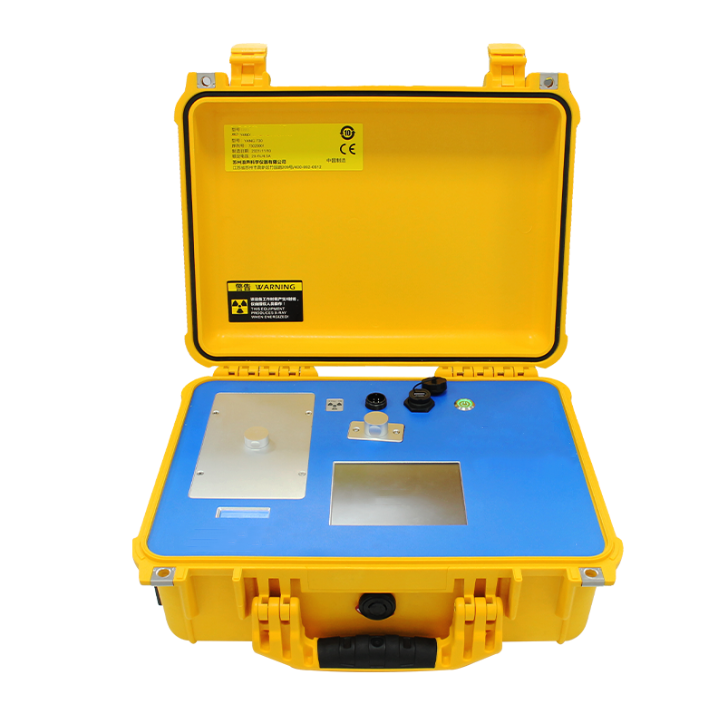

Industrial Portable Soil Heavy Metal Analyzer
XRF spectrometer is a new generation of XRF analytical instrument launched by LITH. Its blend of many years of XRF experience, crystal grating spectrometer technology and high intelligent XRF analysis software. It is small, portable, simple operation, fast, accurate, safe and reliable. It is ideal choice of soil heavy metal pollution monitoring, food safety.
Advantage
Portable
Waterproof and dustproof box (IP 67 waterproof and dustproof grade), portable test platform, so that the field detection and laboratory analysis in one, simple operation, automatic detection, no calibration, free laboratory/field scientific research.
Applicability
Specially developed for quick on-site analysis, the instrument has fog-proof, dust-proof, shock-proof, can adapt to the harsh environment.
Safety
With professional multiple protective radiation treatment (sample chamber radiation shielding, safety linkage lock device), no radiation leakage in all directions of the instrument during measurement.
Data printing
Equipped with portable Bluetooth printer, the data can be output in Excel and PDF format, and users can create customized reports.
Simple sample preparation
Simple sample preparation, and do not need to go through complex pre-processing. The instrument uses an integrated sample cup and sample film, which do not need to be manually attached on site, so as to avoid error in the sample preparation process and prevent sample contamination.
Heat dissipation
The instrument is equipped with a special two-way ventilation heat dissipation device to improve the heat dissipation performance of the instrument.
Cloud service
The device is equipped with mobile applications that can be controlled synchronously. The mobile application services can operate, transmit and manage data, labels and other information, easily realizing system data docking and sharing.
Application scenario
It can analyze and detect heavy metal elements in water (such as industrial waste water, municipal waste water, etc.), including lead, arsenic, cadmium, zinc and dozens of elements
Soil, clods, wet sediments, silt and liquid materials can be measured for the 8 metals specified in the RCRA (less than 10PPM) and for the contaminated metals that need priority detection
It can be used in the determination of sudden environmental pollution accidents and regional pollution monitoring.
Product parameter
Weight
12KG
Size
418 × 330 × 173mm（L×W×H）
Excitation source
Air cooled X-ray tube
X-ray tube target
Cu target or Co, Cr, Fe, Ni, Mo, Ag, W target (optional according to test sample)
X-ray tube voltage
The maximum is 50kV, and the equivalent rate of X-ray radiation measurement is less than 0.2μSv/h
X ray tube power
Maximum 50W, adjustable 0-50W
Crystal
Hyperboloid curved crystal
The detector
Stage 2 Peltier refrigeration SDD detector
Display
5.7-inch, industrial grade color touch screen
Scope of element
Mg—U
The battery
Equipped with lithium battery, can continuously test the number of samples ≥50, the laboratory environment can also be used through the adapter power supply.
Working temperature
-20℃~50℃
Working humidity
20%~90%RH
Data output
USB, Bluetooth, GPS, 4G communication
Measuring time
30-1800 - s
Resolution
optimal125 ev
Analytical Systems Language
Chinese, English and other languages
Analysis system language
Dedicated Analytics level Android embedded operating system
Based on the I. MX 6 Quad quad-core Cortex-A9 processor
80MHz ADC digital pulse processor
4096 MCA channel, 32 GB memory
