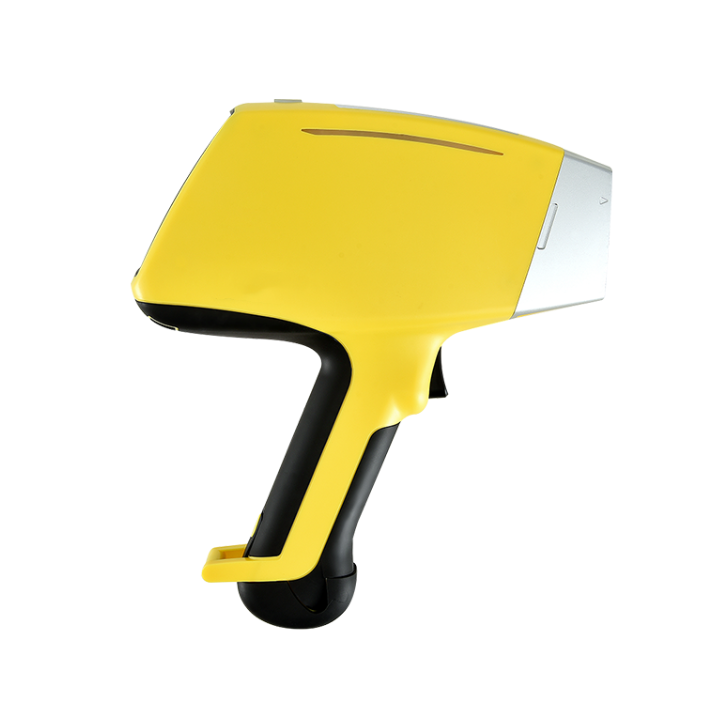

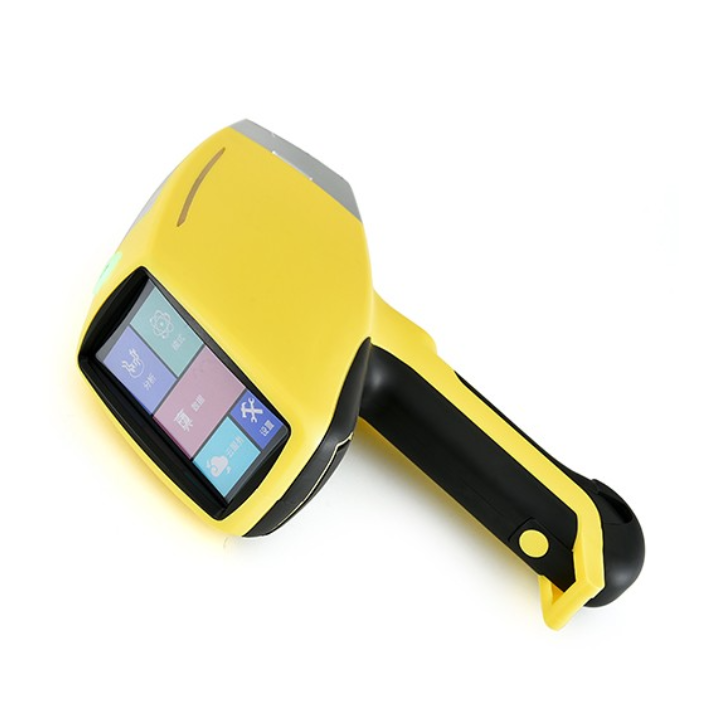

RoHS Industrial Toys Clothing Footwear Electronic Equipment Analyzer
The RoHS analyzer can be used to analyze the chemical composition of consumer products such as toys, clothing, footwear and electronic equipment in the field. It can quickly detect toxic elements such as lead Pb,Cd, Hg, Cr, Br and determine whether these consumer products comply with RoHS regulations. With the advantages of high sensitivity and high repeatability, it is the ideal choice for incoming material inspection, safety audit of finished products and storage products.
Advantage
Portable
The instrument is smaller in size and lighter in weight, so it is easy to carry.
Omnidirectional environmental sensing system
The built-in omnidirectional environmental sensing system enables it to sense changes in the surrounding environment in real time and automatically adjust parameters for element analysis under special conditions such as high and low temperature, dust, darkness and humidity.
Safety
Built-in DoubleBeam™ automatically detects samples in front of you for enhanced radiation safety and protection.
Low detection limit
Its new built-in net intensity fitting algorithm optimizes spectral resolution, enabling it to have a low detection limit comparable to large laboratory equipment.
Ultrashort™
Built-in Ultrashort™ optical path design significantly improves the excitation effect of light elements Mg, Al, Si, S, P without nitrogen filling.
High-performance configuration
High-speed processing chips, advanced algorithms and efficient software combine to make instrument analysis faster.
Industrial resistance touch screen
4.3-inch industrial resistance touch screen, compared with capacitor screen, has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.
Smart battery
A single battery can work for about 8 hours. It supports hot swap and can be replaced in working state without shutting down. It can also monitor the remaining capacity of the battery in real time, and the battery complies with the air dangerous goods transport regulations.
User-defined
Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.).
Application scenario
Restricted toxic elements in consumer products
Component analysis and brand identification of metal components/fasteners; Chlorine and bromine in polymer materials and plastics
Cadmium, lead and mercury in packaging materials
Cadmium, lead, bromine, mercury, chromium and other elements in electronic components, connectors, cables, etc.
Solder - the state of raw materials and the contents of tin, lead, copper, silver, bismuth, cadmium and other elements contained in the solder at different stages of use; High reliability electronic components contain adequate amounts of lead
Product parameter
Weight
1.6KG（with battery)
Size
254×79×280mm（L×W×H）
Excitation source
50kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detector
Si-Pin etector/SDD detector
Display system
4.3 "industrial grade resistance touch screen
Automatically adjust display brightness according to external environment brightness
Data processing
Built-in 32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Heat dissipation
T-slot radiator
Security
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
Power system
Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
The RoHS analyzer can be used to analyze the chemical composition of consumer products such as toys, clothing, footwear and electronic equipment in the field. It can quickly detect toxic elements such as lead Pb,Cd, Hg, Cr, Br and determine whether these consumer products comply with RoHS regulations. With the advantages of high sensitivity and high repeatability, it is the ideal choice for incoming material inspection, safety audit of finished products and storage products.
Advantage
Portable
The instrument is smaller in size and lighter in weight, so it is easy to carry.
Omnidirectional environmental sensing system
The built-in omnidirectional environmental sensing system enables it to sense changes in the surrounding environment in real time and automatically adjust parameters for element analysis under special conditions such as high and low temperature, dust, darkness and humidity.
Safety
Built-in DoubleBeam™ automatically detects samples in front of you for enhanced radiation safety and protection.
Low detection limit
Its new built-in net intensity fitting algorithm optimizes spectral resolution, enabling it to have a low detection limit comparable to large laboratory equipment.
Ultrashort™
Built-in Ultrashort™ optical path design significantly improves the excitation effect of light elements Mg, Al, Si, S, P without nitrogen filling.
High-performance configuration
High-speed processing chips, advanced algorithms and efficient software combine to make instrument analysis faster.
Industrial resistance touch screen
4.3-inch industrial resistance touch screen, compared with capacitor screen, has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.
Smart battery
A single battery can work for about 8 hours. It supports hot swap and can be replaced in working state without shutting down. It can also monitor the remaining capacity of the battery in real time, and the battery complies with the air dangerous goods transport regulations.
User-defined
Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.).
Application scenario
Restricted toxic elements in consumer products
Component analysis and brand identification of metal components/fasteners; Chlorine and bromine in polymer materials and plastics
Cadmium, lead and mercury in packaging materials
Cadmium, lead, bromine, mercury, chromium and other elements in electronic components, connectors, cables, etc.
Solder - the state of raw materials and the contents of tin, lead, copper, silver, bismuth, cadmium and other elements contained in the solder at different stages of use; High reliability electronic components contain adequate amounts of lead
Product parameter
Weight
1.6KG（with battery)
Size
254×79×280mm（L×W×H）
Excitation source
50kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detector
Si-Pin etector/SDD detector
Display system
4.3 "industrial grade resistance touch screen
Automatically adjust display brightness according to external environment brightness
Data processing
Built-in 32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Heat dissipation
T-slot radiator
Security
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
Power system
Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
The RoHS analyzer can be used to analyze the chemical composition of consumer products such as toys, clothing, footwear and electronic equipment in the field. It can quickly detect toxic elements such as lead Pb,Cd, Hg, Cr, Br and determine whether these consumer products comply with RoHS regulations. With the advantages of high sensitivity and high repeatability, it is the ideal choice for incoming material inspection, safety audit of finished products and storage products.
Advantage
Portable
The instrument is smaller in size and lighter in weight, so it is easy to carry.
Omnidirectional environmental sensing system
The built-in omnidirectional environmental sensing system enables it to sense changes in the surrounding environment in real time and automatically adjust parameters for element analysis under special conditions such as high and low temperature, dust, darkness and humidity.
Safety
Built-in DoubleBeam™ automatically detects samples in front of you for enhanced radiation safety and protection.
Low detection limit
Its new built-in net intensity fitting algorithm optimizes spectral resolution, enabling it to have a low detection limit comparable to large laboratory equipment.
Ultrashort™
Built-in Ultrashort™ optical path design significantly improves the excitation effect of light elements Mg, Al, Si, S, P without nitrogen filling.
High-performance configuration
High-speed processing chips, advanced algorithms and efficient software combine to make instrument analysis faster.
Industrial resistance touch screen
4.3-inch industrial resistance touch screen, compared with capacitor screen, has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.
Smart battery
A single battery can work for about 8 hours. It supports hot swap and can be replaced in working state without shutting down. It can also monitor the remaining capacity of the battery in real time, and the battery complies with the air dangerous goods transport regulations.
User-defined
Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.).
Application scenario
Restricted toxic elements in consumer products
Component analysis and brand identification of metal components/fasteners; Chlorine and bromine in polymer materials and plastics
Cadmium, lead and mercury in packaging materials
Cadmium, lead, bromine, mercury, chromium and other elements in electronic components, connectors, cables, etc.
Solder - the state of raw materials and the contents of tin, lead, copper, silver, bismuth, cadmium and other elements contained in the solder at different stages of use; High reliability electronic components contain adequate amounts of lead
Product parameter
Weight
1.6KG（with battery)
Size
254×79×280mm（L×W×H）
Excitation source
50kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detector
Si-Pin etector/SDD detector
Display system
4.3 "industrial grade resistance touch screen
Automatically adjust display brightness according to external environment brightness
Data processing
Built-in 32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Heat dissipation
T-slot radiator
Security
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
Power system
Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
The RoHS analyzer can be used to analyze the chemical composition of consumer products such as toys, clothing, footwear and electronic equipment in the field. It can quickly detect toxic elements such as lead Pb,Cd, Hg, Cr, Br and determine whether these consumer products comply with RoHS regulations. With the advantages of high sensitivity and high repeatability, it is the ideal choice for incoming material inspection, safety audit of finished products and storage products.
Advantage
Portable
The instrument is smaller in size and lighter in weight, so it is easy to carry.
Omnidirectional environmental sensing system
The built-in omnidirectional environmental sensing system enables it to sense changes in the surrounding environment in real time and automatically adjust parameters for element analysis under special conditions such as high and low temperature, dust, darkness and humidity.
Safety
Built-in DoubleBeam™ automatically detects samples in front of you for enhanced radiation safety and protection.
Low detection limit
Its new built-in net intensity fitting algorithm optimizes spectral resolution, enabling it to have a low detection limit comparable to large laboratory equipment.
Ultrashort™
Built-in Ultrashort™ optical path design significantly improves the excitation effect of light elements Mg, Al, Si, S, P without nitrogen filling.
High-performance configuration
High-speed processing chips, advanced algorithms and efficient software combine to make instrument analysis faster.
Industrial resistance touch screen
4.3-inch industrial resistance touch screen, compared with capacitor screen, has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.
Smart battery
A single battery can work for about 8 hours. It supports hot swap and can be replaced in working state without shutting down. It can also monitor the remaining capacity of the battery in real time, and the battery complies with the air dangerous goods transport regulations.
User-defined
Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.).
Application scenario
Restricted toxic elements in consumer products
Component analysis and brand identification of metal components/fasteners; Chlorine and bromine in polymer materials and plastics
Cadmium, lead and mercury in packaging materials
Cadmium, lead, bromine, mercury, chromium and other elements in electronic components, connectors, cables, etc.
Solder - the state of raw materials and the contents of tin, lead, copper, silver, bismuth, cadmium and other elements contained in the solder at different stages of use; High reliability electronic components contain adequate amounts of lead
Product parameter
|
Weight |
1.6KG（with battery) |
|
Size |
254×79×280mm（L×W×H） |
|
Excitation source |
50kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional) |
|
Detector |
Si-Pin etector/SDD detector |
|
Display system |
4.3 "industrial grade resistance touch screen Automatically adjust display brightness according to external environment brightness |
|
Data processing |
Built-in 32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
|
Heat dissipation |
T-slot radiator |
|
Security |
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope |
|
Power system |
Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations A single battery can work for about 8 hours |
IPv6 network supported
