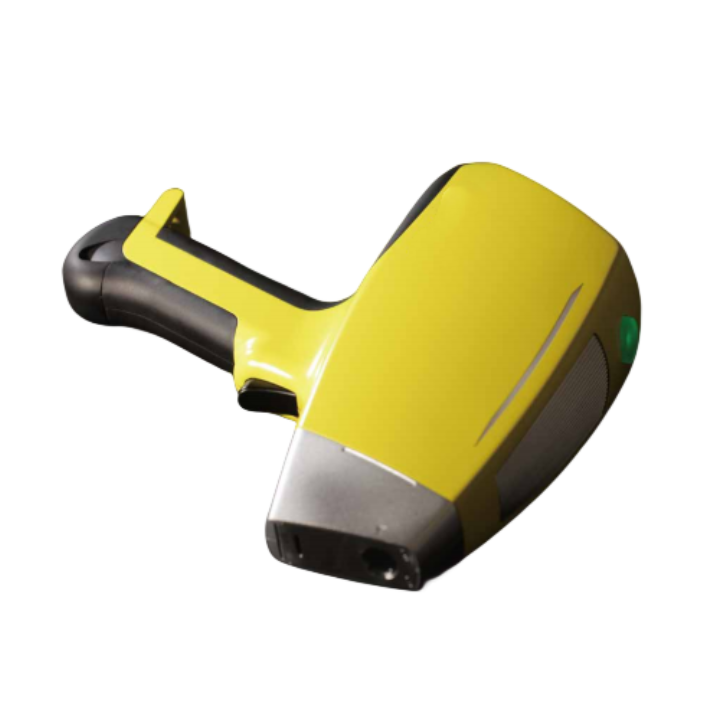

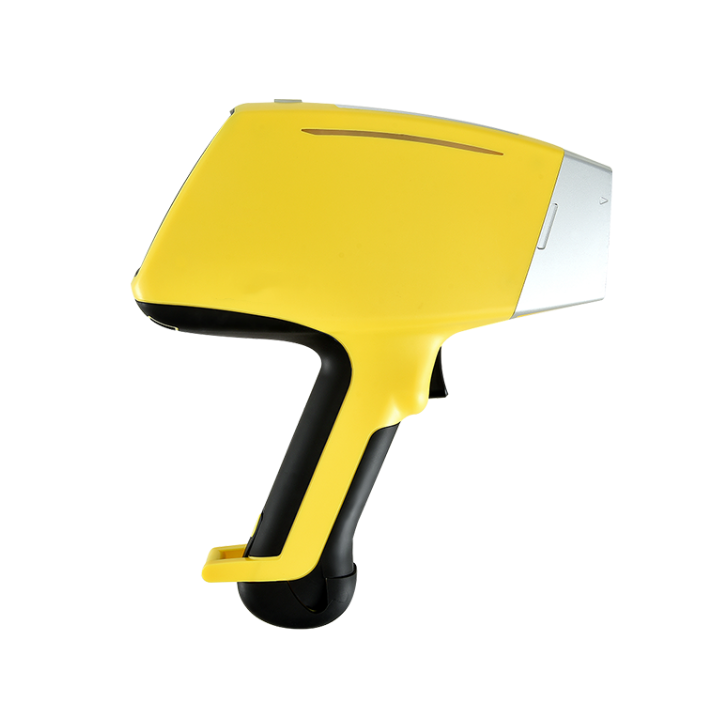

Handheld Portable Soil Heavy Metal Analyzer
Product introduction
Handheld soil heavy metals analyzer, portable light, just one key operation, can be for a variety of soil and sediment samples (tested can be solid, dust, powder, solid, debris, mud filter material, tangible objects, such as thin film layer) multielement analysis and detection, and can quickly get reliable analysis data, Assist in real-time strategy development, testing costs are much lower than laboratory analysis.
Excellent performance
Element symbol Chinese and English display, high precision, fast speed, close to the laboratory level of analysis, can intuitively display element percentage content (elements can reach three decimal points) and PPM content.
One-click operation
The entire analysis process takes only a few seconds to complete. In the field, the soil can be analyzed directly without preparing samples
Single, even non-technical people can easily master.
Non-destructive Testing (NDT)
No damage, do not affect the performance of the tested sample, the whole test process without any damage.
Easy customization
On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.
Wave analysis software
Professional management and analysis software allows you to easily set the security user password, customized, personalized and with the company LOGO analysis report, easy to achieve remote control of the instrument; Open the instrument calibration method for users, users can calibrate the instrument and carry out energy calibration for the instrument; Automatic calibration, diagnosis instrument failure; Software can be upgraded through the Internet.
Data processing
USB, WIFI, wireless Bluetooth and other methods for data transmission, the file can be EXCEL, PDF and other formats, users can customize the test report: including company logo, company address, test results, spectral spectrum and other sample information (such as product description, origin, batch number, etc.); Can provide cloud data services. Organization and enterprise resource Planning (ERP) production resource planning management.
Application scenario
Site monitoring of metals involved in RCRA and priority control of contaminated metals
Can be: sand, sludge, solid waste, soil, mud; Analysis of dust, dust, filter, film layer, etc
The original land, polluted water, waste water, and other harmful substances on-site disposal and pollution control, remedial methods to provide a theoretical basis for in-depth analysis
Product parameter
Weight
1.6KG (with battery)
Size
254×79×280mm（L×W×H）
Excitation source
50kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detector
Si-PIN detector/SDD detector
Detection range
Mg—U
Display system
4.3 "industrial grade resistance touch screen
Automatically adjust display brightness according to external environment brightness
Data processing
Built-in 32GB storage
USB,can connect the device to the Internet, remote setting and maintenance of the instrument
Security
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
Power system
Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
Language
Chinese, English, etc
Product introduction
Handheld soil heavy metals analyzer, portable light, just one key operation, can be for a variety of soil and sediment samples (tested can be solid, dust, powder, solid, debris, mud filter material, tangible objects, such as thin film layer) multielement analysis and detection, and can quickly get reliable analysis data, Assist in real-time strategy development, testing costs are much lower than laboratory analysis.
Excellent performance
Element symbol Chinese and English display, high precision, fast speed, close to the laboratory level of analysis, can intuitively display element percentage content (elements can reach three decimal points) and PPM content.
One-click operation
The entire analysis process takes only a few seconds to complete. In the field, the soil can be analyzed directly without preparing samples
Single, even non-technical people can easily master.
Non-destructive Testing (NDT)
No damage, do not affect the performance of the tested sample, the whole test process without any damage.
Easy customization
On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.
Wave analysis software
Professional management and analysis software allows you to easily set the security user password, customized, personalized and with the company LOGO analysis report, easy to achieve remote control of the instrument; Open the instrument calibration method for users, users can calibrate the instrument and carry out energy calibration for the instrument; Automatic calibration, diagnosis instrument failure; Software can be upgraded through the Internet.
Data processing
USB, WIFI, wireless Bluetooth and other methods for data transmission, the file can be EXCEL, PDF and other formats, users can customize the test report: including company logo, company address, test results, spectral spectrum and other sample information (such as product description, origin, batch number, etc.); Can provide cloud data services. Organization and enterprise resource Planning (ERP) production resource planning management.
Application scenario
Site monitoring of metals involved in RCRA and priority control of contaminated metals
Can be: sand, sludge, solid waste, soil, mud; Analysis of dust, dust, filter, film layer, etc
The original land, polluted water, waste water, and other harmful substances on-site disposal and pollution control, remedial methods to provide a theoretical basis for in-depth analysis
Product parameter
Weight
1.6KG (with battery)
Size
254×79×280mm（L×W×H）
Excitation source
50kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detector
Si-PIN detector/SDD detector
Detection range
Mg—U
Display system
4.3 "industrial grade resistance touch screen
Automatically adjust display brightness according to external environment brightness
Data processing
Built-in 32GB storage
USB,can connect the device to the Internet, remote setting and maintenance of the instrument
Security
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
LANScientific special safety rope
Power system
Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations
A single battery can work for about 8 hours
Language
Chinese, English, etc
Site monitoring of metals involved in RCRA and priority control of contaminated metals
The original land, polluted water, waste water, and other harmful substances on-site disposal and pollution control, remedial methods to provide a theoretical basis for in-depth analysis
|
Weight |
1.6KG (with battery) |
|
Size |
254×79×280mm（L×W×H） |
|
Excitation source |
50kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional) |
|
Detector |
Si-PIN detector/SDD detector |
|
Detection range |
Mg—U |
|
Display system |
4.3 "industrial grade resistance touch screen Automatically adjust display brightness according to external environment brightness |
|
Data processing |
Built-in 32GB storage USB,can connect the device to the Internet, remote setting and maintenance of the instrument |
|
Security |
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case LANScientific special safety rope |
|
Power system
|
Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations A single battery can work for about 8 hours |
|
Language |
Chinese, English, etc |
