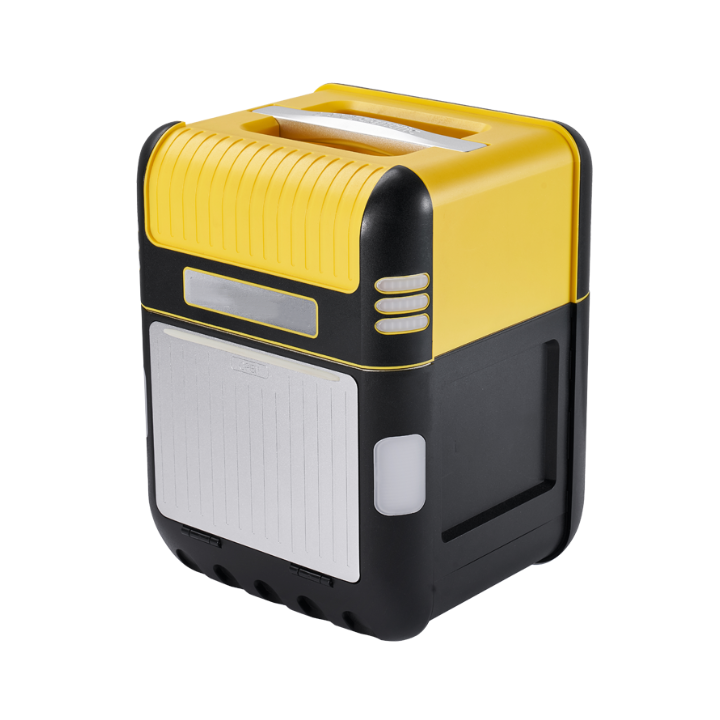

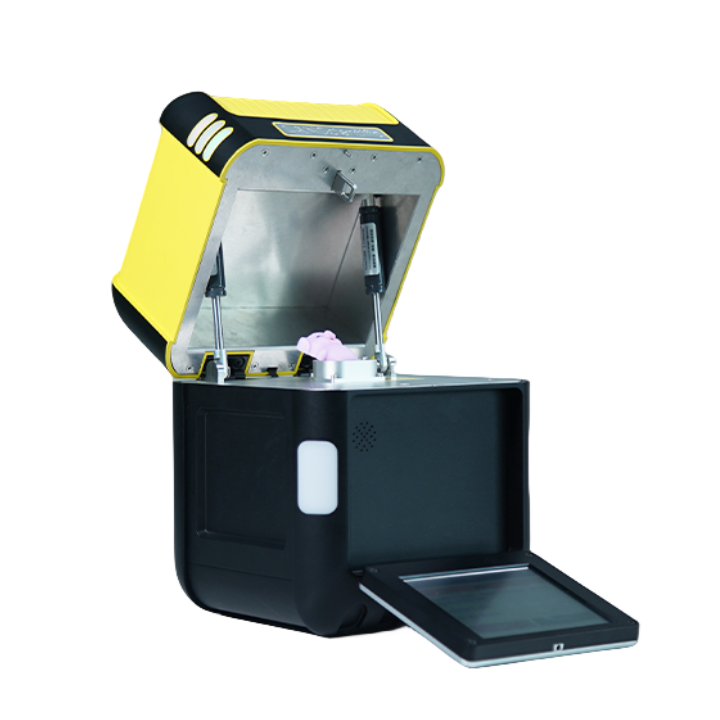

Industrial XRF Portable Hydrocarbons Sulphur Oil Analyzer
Product introduction
PeDX OIL is a portable XRF analyzer that provides sulfur analysis methods for the energy industry. It can analysis of lubricating oil, diesel fuel, kerosene, jet fuel, other distillation oil, volatile oil, residual oil, hydraulic oil, crude oil, unleaded gasoline, ethanol gasoline, biodiesel, and other similar elements content in petroleum products such as oil and wear elements, pollutants, and the existence of the sulfur content within a few minutes . Analysis of sulfur content in safe, high-quality liquid, solid or gas samples can be carried out elsewhere where oil products are used.
Advantage
One-click intelligent operation
The whole analysis process can be completed in just a few seconds. The operation is simple and even non-technical people can easily use it.
Easy customization
On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.
Multiple forms of data output
Analytical data reports can be made in PDF format or Excel format. When exporting data in Excel format, you can also confirm and edit the data in detail in the table. Users can also create customized professional reports, including company logo, company address, test results, spectrogram and other sample information (such as product description, origin, batch number, etc.).
Accurate and reliable qualitative and quantitative methods
It integrates advanced algorithms such as super-FP algorithm and correction curve method of LANScientific's front, making the instrument not only faster, higher accuracy and stronger consistency of measurement.
Application scenario
Analysis of sulphur content in Marine Fuels
Petroleum refining industry
Refinery
Oil pipeline
Analysis of Wear Elements/Additives/Hydrocarbons in Oils
Product parameter
Weight
4.1KG
Size
200×200×268mm（L×W×H）
Size of Sample Room
170×130×60mm（L×W×H）
Excitation source
Up to 50kV, 200uA X-ray tube, upper excitation power 4W, Ag/Rh target
Detector
BOOST Si-pin/SDD(Optional)
Operation System
Based on the I. MX 6 Quad， quad-core Cortex-A9 processor
Dedicated analytics operating system, 32GB of system memory
Data Processing
Built-in 32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Target
W/Ag/Rh(Optional)
Resolution
<136eV
Data Transfer
USB, Bluetooth
Operating Ambient Temperature
-20℃~50℃
Operating Ambient Humidity
10%~90% relative humidity, non-condensing
Display
5.7-inch absorbable color touch screen display
Test Time
User customize
Optional
Built-in 5 million pixel high-definition camera
Language
Chinese, English, etc.
Air mode
Air mode, helium mode, vacuum mode (optional)
