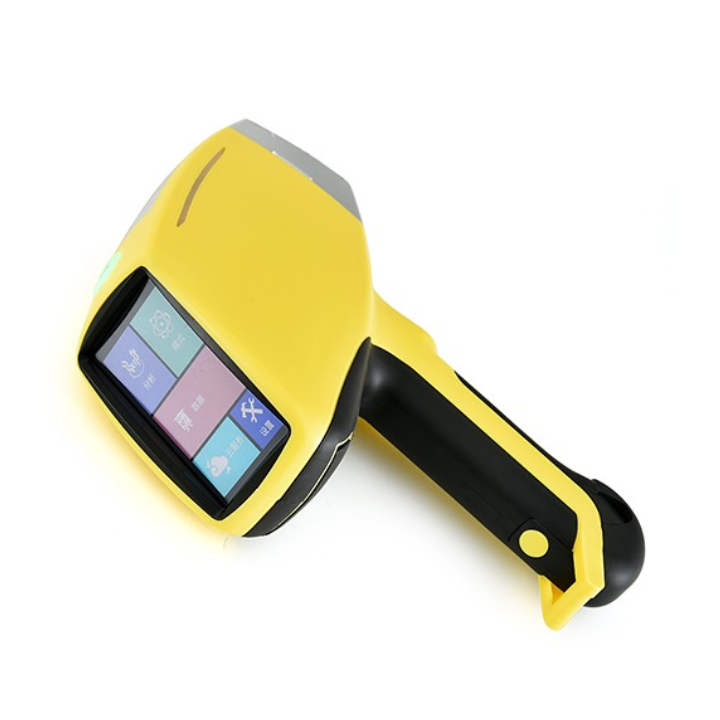

Mini Handheld Portable High Precision Mineral Analyzer
Product introduction
The Mineral Analyzer provides rapid and accurate elemental analysis results with little or no sample preparation at all stages of a mining operation, from grassroots exploration and development, to ore grade control, and even environmental investigations. Sample density increases compared to traditional laboratory methods. Save time, worry and effort.
Advantage
Portable
The instrument is smaller in size and lighter in weight, so it is easy to carry.
Industrial resistance touch screen
4.3-inch industrial resistance touch screen, compared with capacitor screen, has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.
User-defined
Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.
High precision
Imported high-performance X-ray tubes and high-resolution detectors, combined with digital multi-channel processing technology, make TrueX handheld ore analyzer with higher analysis accuracy.
GPS system
It can combine the built-in GPS latitude and longitude data and altitude data and import third-party GIS analysis software to build three-dimensional geographical distribution map of element content, so as to quickly assess mineral reserves or geological environmental disaster areas.
Application scenario
Analysis of mineral processing grade in geological prospecting
Mineral research
Tailings processing
Slag reuse
Product parameter
Weight
1.6KG (with battery)
Size
254 x 79 x 280 mm (L x W x H)
Excitation source
550kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detector
Si-Pin/SDD
Detection range
Mg—U
Display system
4.3 "industrial grade resistance touch screen
Automatically adjust display brightness according to external environment brightness
Data processing
32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Security
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection

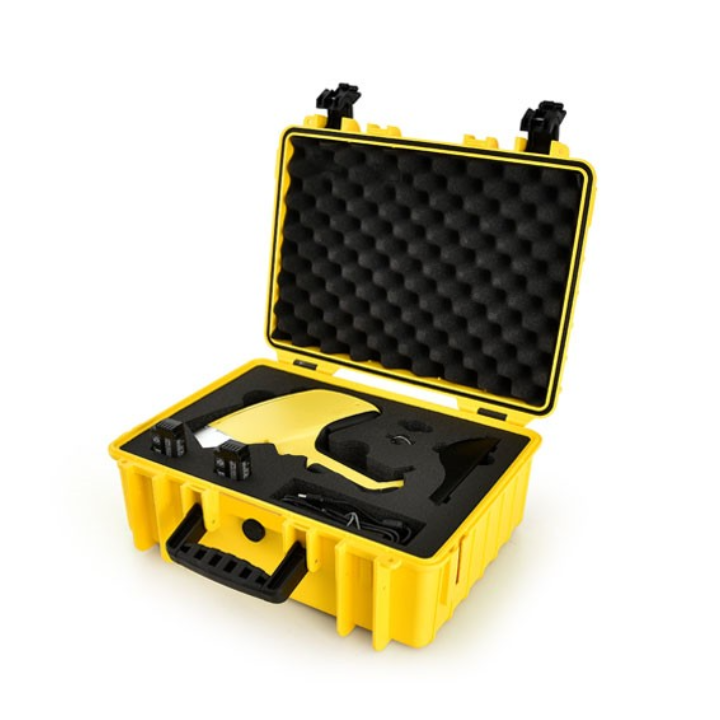

Waterproof, dustproof and shockproof carrying case
Safety rope
Power system
Intelligent battery with MSBUS, real-time monitoring battery, can directly check the remaining capacity of the battery, the battery complies with the air transport of dangerous goods regulations
A single battery can work for about 8 hours
Language
Chinese, English, etc.
Product introduction
The Mineral Analyzer provides rapid and accurate elemental analysis results with little or no sample preparation at all stages of a mining operation, from grassroots exploration and development, to ore grade control, and even environmental investigations. Sample density increases compared to traditional laboratory methods. Save time, worry and effort.
Advantage
Portable
The instrument is smaller in size and lighter in weight, so it is easy to carry.
Industrial resistance touch screen
4.3-inch industrial resistance touch screen, compared with capacitor screen, has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.
User-defined
Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.
High precision
Imported high-performance X-ray tubes and high-resolution detectors, combined with digital multi-channel processing technology, make TrueX handheld ore analyzer with higher analysis accuracy.
GPS system
It can combine the built-in GPS latitude and longitude data and altitude data and import third-party GIS analysis software to build three-dimensional geographical distribution map of element content, so as to quickly assess mineral reserves or geological environmental disaster areas.
Application scenario
Analysis of mineral processing grade in geological prospecting
Mineral research
Tailings processing
Slag reuse
Product parameter
Weight
1.6KG (with battery)
Size
254 x 79 x 280 mm (L x W x H)
Excitation source
550kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detector
Si-Pin/SDD
Detection range
Mg—U
Display system
4.3 "industrial grade resistance touch screen
Automatically adjust display brightness according to external environment brightness
Data processing
32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Security
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
Safety rope
Power system
Intelligent battery with MSBUS, real-time monitoring battery, can directly check the remaining capacity of the battery, the battery complies with the air transport of dangerous goods regulations
A single battery can work for about 8 hours
Language
Chinese, English, etc.
Product introduction
The Mineral Analyzer provides rapid and accurate elemental analysis results with little or no sample preparation at all stages of a mining operation, from grassroots exploration and development, to ore grade control, and even environmental investigations. Sample density increases compared to traditional laboratory methods. Save time, worry and effort.
Advantage
Portable
The instrument is smaller in size and lighter in weight, so it is easy to carry.
Industrial resistance touch screen
4.3-inch industrial resistance touch screen, compared with capacitor screen, has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.
User-defined
Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.
High precision
Imported high-performance X-ray tubes and high-resolution detectors, combined with digital multi-channel processing technology, make TrueX handheld ore analyzer with higher analysis accuracy.
GPS system
It can combine the built-in GPS latitude and longitude data and altitude data and import third-party GIS analysis software to build three-dimensional geographical distribution map of element content, so as to quickly assess mineral reserves or geological environmental disaster areas.
Application scenario
Analysis of mineral processing grade in geological prospecting
Mineral research
Tailings processing
Slag reuse
Product parameter
Weight
1.6KG (with battery)
Size
254 x 79 x 280 mm (L x W x H)
Excitation source
550kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detector
Si-Pin/SDD
Detection range
Mg—U
Display system
4.3 "industrial grade resistance touch screen
Automatically adjust display brightness according to external environment brightness
Data processing
32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Security
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
Safety rope
Power system
Intelligent battery with MSBUS, real-time monitoring battery, can directly check the remaining capacity of the battery, the battery complies with the air transport of dangerous goods regulations
A single battery can work for about 8 hours
Language
Chinese, English, etc.
Product introduction
The Mineral Analyzer provides rapid and accurate elemental analysis results with little or no sample preparation at all stages of a mining operation, from grassroots exploration and development, to ore grade control, and even environmental investigations. Sample density increases compared to traditional laboratory methods. Save time, worry and effort.
Advantage
Portable
The instrument is smaller in size and lighter in weight, so it is easy to carry.
Industrial resistance touch screen
4.3-inch industrial resistance touch screen, compared with capacitor screen, has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.
User-defined
Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.
High precision
Imported high-performance X-ray tubes and high-resolution detectors, combined with digital multi-channel processing technology, make TrueX handheld ore analyzer with higher analysis accuracy.
GPS system
It can combine the built-in GPS latitude and longitude data and altitude data and import third-party GIS analysis software to build three-dimensional geographical distribution map of element content, so as to quickly assess mineral reserves or geological environmental disaster areas.
Application scenario
Analysis of mineral processing grade in geological prospecting
Mineral research
Tailings processing
Slag reuse
Product parameter
Weight
1.6KG (with battery)
Size
254 x 79 x 280 mm (L x W x H)
Excitation source
550kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detector
Si-Pin/SDD
Detection range
Mg—U
Display system
4.3 "industrial grade resistance touch screen
Automatically adjust display brightness according to external environment brightness
Data processing
32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Security
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection
Waterproof, dustproof and shockproof carrying case
Safety rope
Power system
Intelligent battery with MSBUS, real-time monitoring battery, can directly check the remaining capacity of the battery, the battery complies with the air transport of dangerous goods regulations
A single battery can work for about 8 hours
Language
Chinese, English, etc.
|
Weight |
1.6KG (with battery) |
|
Size |
254 x 79 x 280 mm (L x W x H) |
|
Excitation source |
550kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional) |
|
Detector |
Si-Pin/SDD |
|
Detection range |
Mg—U |
|
Display system |
4.3 "industrial grade resistance touch screen Automatically adjust display brightness according to external environment brightness |
|
Data processing |
32GB storage USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
|
Security |
Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection Waterproof, dustproof and shockproof carrying case Safety rope |
|
Power system |
Intelligent battery with MSBUS, real-time monitoring battery, can directly check the remaining capacity of the battery, the battery complies with the air transport of dangerous goods regulations A single battery can work for about 8 hours |
|
Language |
Chinese, English, etc. |
