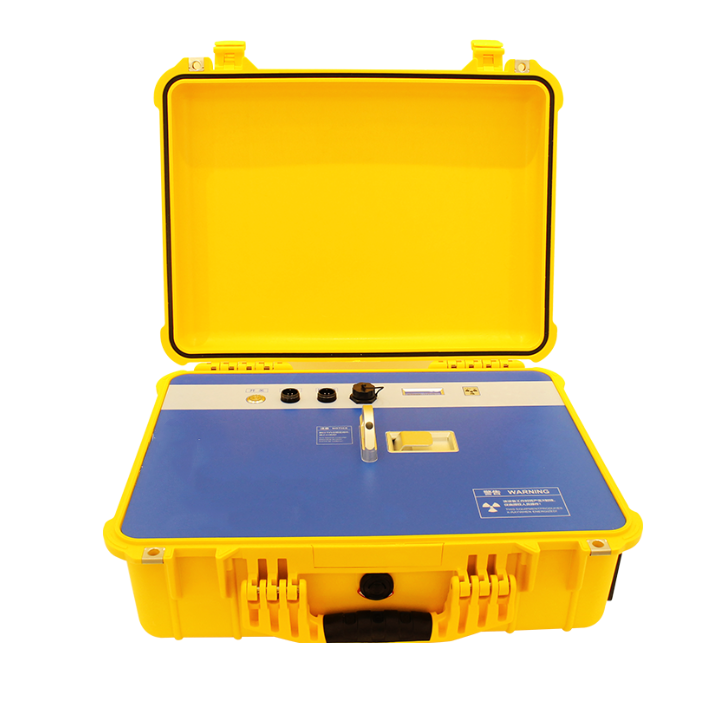

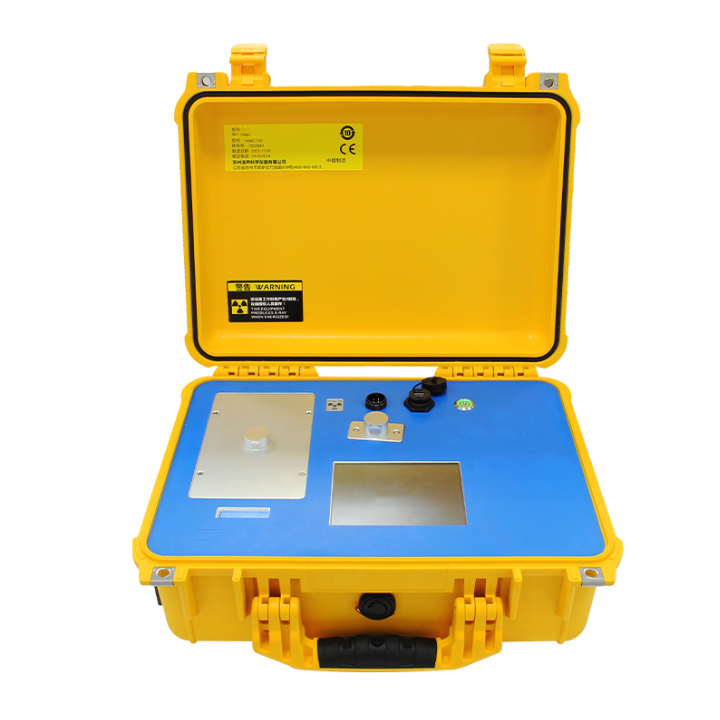

Portable Mineral Rocks Edition X Ray Diffractometer
Portable X-ray diffractometer (Mineral & Rocks Edition) is a portable X-ray diffractometer specially developed for mineral phase analysis in the field. It integrates XRD, XRF and computer software and other technologies, which can quickly conduct qualitative and quantitative analysis, crystal structure analysis, material structure analysis and crystallinity determination of mineral samples. It has the advantages of fast testing speed, low price and high precision.
It in the X-ray beam through the sample position using transmission geometry technology, micro focus X-ray tube emission X-ray beam through the collimator irradiation powder particles in the sample pool, unique vibration system allowed more of the crystal powder particles were exposed to X-ray beam when meet the Bragg's law on CCD acquisition by the diffraction phenomenon of diffraction pattern. The sample size in the sample pool is fixed, so changes in sample density do not affect the resolution. This feature is especially important for low-density materials, such as drug samples, where higher resolution can be achieved with fixed penetration compared to instruments based on reflective geometry.
Advantage
Portable
The instrument adopts waterproof and dustproof box all-in-one machine design, without any mechanical moving parts, light and compact, easy to carry, can freely conduct laboratory/field field scientific research.
Integration
XRD and XRF technology integration, in each test, can simultaneously collect XRD and XRF X-ray photon data, provide material composition, phase and structure information, so as to promote more accurate test results.
Simplicity
Instrument one-key operation, no correction, automatic detection, no extra attention to the high pressure system and water circulation cooling system (instrument without additional high pressure and water circulation cooling system).
Sample preparation is simple
A single analysis only needs about 20 mg of samples to obtain high-quality test results, sample preparation without making, pressing, scraping equality, 3 minutes to complete sample preparation (crushing, screening, sample loading).
Data transmission
The instrument through USB, Bluetooth, WIFI and laptop computer to achieve high-speed connection, real-time SHINE instrument control and phase analysis.
Good environmental adaptability
Specially developed for geological investigation, the instrument can be fog-proof, dust-proof, shock-proof, can adapt to the bad use environment.
Safety
Professional multiple protective radiation treatment, measuring instrument without any radiation leakage in all directions.
Application scenario
Geological exploration/Track ore deposit
Mineral research, grade identification
Lithium ore, beryllium ore grade analysis, etc.
Tailings recycling and reuse
Mineral smelting and manufacture
Titanium dioxide, fluorite, etc.
Product parameter
XRD resolution
0.2°@2θ FWHM
Scope of XRD
5-55°2θ
The detector
2000 X 256 pixel, 2d, level 3 Pelter refrigeration CCD
X-ray tube target
Cluster microfocal spot X-ray tube, Cu or Co, Cr, Fe, Ni, Mo, Ag, W target (optional according to test sample)
X-ray tube voltage
Maximum 50kV, 0-50kV adjustable
X ray tube power
Maximum 50W, 0-50W adjustable
XRF energy resolution
127eV@8keV
XRF detection range
Mg—U
Cooling Method
Air Cooling
Sample particle size
Sample particle <150um (100 mesh sieve)
Sample weight
about 20mg
Working temperature
-10°C-35°C
Weight
15KG
The power supply
Lithium ion battery or power adapter
Size
50×40×18.8cm（L×W×H）
CrystalX analysis software language
Chinese, English and other languages
