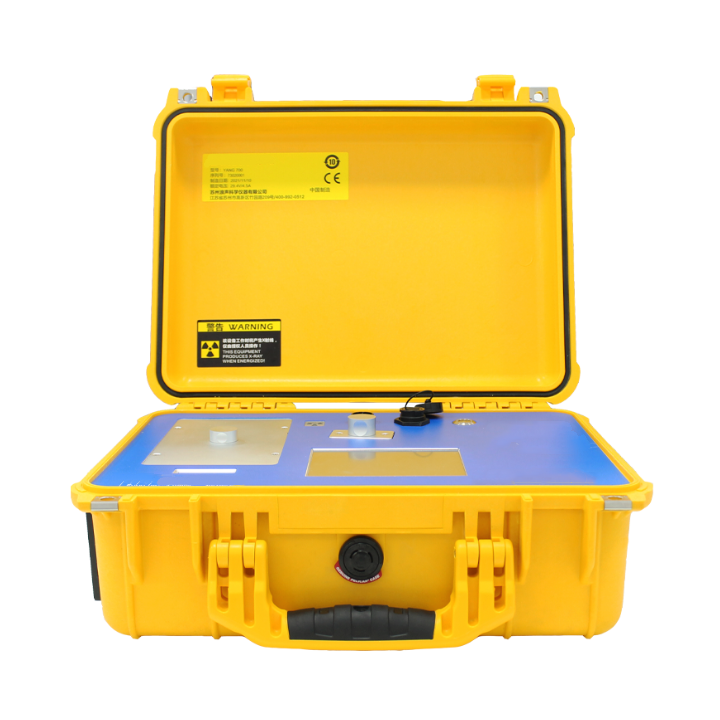

Portable Food Heavy Metal Analyzer
Food heavy metal rapid analyzer is an XRF analytical instrument specially launched in the field of food security, used for rapid detection of cadmium, lead, mercury and other heavy metal elements in food. Its integration of LITH years of XRF research and development technology, crystal grating spectroscopic technology and basic parameter method and a number of high-end technologies, with small and portable, simple operation, fast and accurate advantages, can quickly improve the efficiency of on-site detection, escort for food security.
Advantage
Portable
Waterproof and dustproof box (IP 67 waterproof and dustproof grade) all-in-one machine design, portable test platform, so that the field detection and laboratory analysis in one, one-button test, simple operation, automatic detection, no correction, free laboratory/field scientific research.
Applicability
Specially developed for quick on-site analysis, the instrument can be fog-proof, dust-proof, shock-proof, can adapt to the harsh environment.
Heat dissipation
The instrument is equipped with a special two-way ventilation heat dissipation device to improve the heat dissipation performance of the instrument.
Safety
With professional multiple protective radiation treatment (sample chamber radiation shielding measures, safety linkage lock device), no radiation leakage in all directions of the instrument during measurement.
Cloud service
The device is equipped with a mobile application service that can be controlled synchronously. The mobile application service can operate data, labels and other information. Transmission and management, easily realize system data docking and sharing.
Data printing
Equipped with portable Bluetooth printer, the data can be output in Excel and PDF format, and users can create customized reports.
Sampling system
The equipment adopts the sample side injection detection method (the plane of detector beryllium window is perpendicular to gravity direction) to reduce the risk of detector beryllium window being damaged by grain, small particles and detector surface contamination.
Application scenario
Food reserves and circulation
Grain production link
Government Agency Regulation
Food safety certification
Product parameter
Weight
12KG
Size
418 × 330 × 173mm（L×W×H）
Excitation source
Air cooled X-ray tube
X-ray tube target
Cu, Co, Cr, Fe, Ni, Mo, Ag, W target (optional)
X-ray tube voltage
The maximum is 50kV, and the equivalent rate of X-ray radiation measurement is less than 0.2μSv/h
X ray tube power
Maximum 50W, adjustable 0-50W
Crystal
Hyperboloid curved crystal
The detector
Stage 2 Peltier refrigeration SDD detector
Display
5.7-inch, industrial grade color touch screen
Scope of element
Mg—U
The battery
Equipped with lithium battery, can continuously test the number of samples ≥50, the laboratory environment can also be used through the adapter power supply.
Working temperature
-20℃~50℃
Working humidity
20%~90%RH
Data output
USB, Bluetooth, GPS, 4G communication
Measuring time
80-300S
Resolution
The optimal 125 ev
Analytical Systems Language
Chinese, English and other languages
Analysis system language
Dedicated Analytics level Android embedded operating system
Based on the I. MX 6 Quad quad-core Cortex-A9 processor
80MHz ADC digital pulse processor
4096 MCA channel, 32 GB memory
