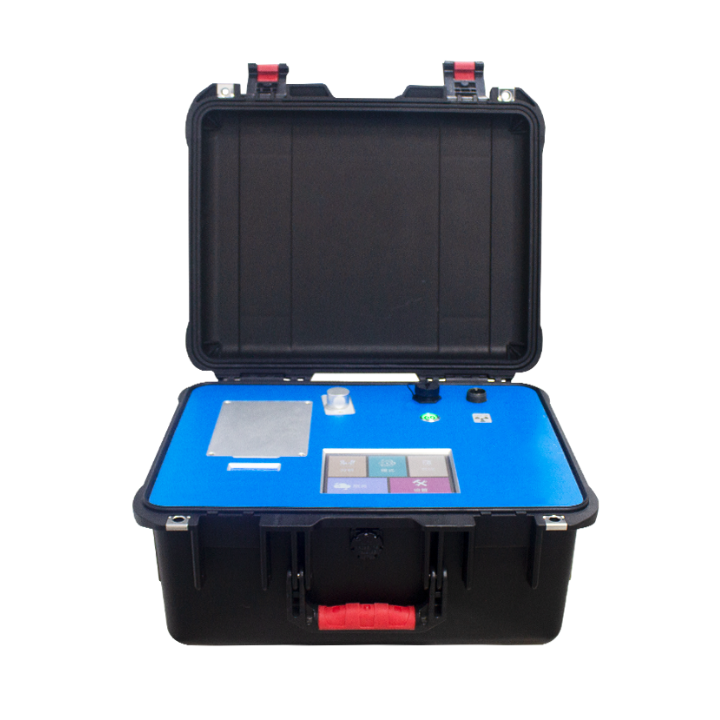

Portable Industrial Ultra Low Sulfur Oil Analyzer
Ultra-low sulfur OIL analyzer is an XRF analysis instrument specially designed for OIL detection by LITH. It integrates wave acoustic multi-year XRF research and development technology, crystal grating spectroscopic technology and highly intelligent XRF analysis software. It has the advantages of small, portable, simple operation, fast and accurate. It can quickly detect the sulfur content in gasoline, diesel, distillate, jet fuel, ethanol gasoline, residual oil, lubricating oil, crude oil and other oil products. It is an ideal tool for law enforcement and detection of ecological environment departments and transportation departments.
Advantage
Portable
Waterproof and dustproof box (IP67 waterproof and dustproof grade) all-in-one machine design, portable test platform, so that the field detection and laboratory analysis in one, one-button test, simple operation, automatic detection, no correction, free laboratory/field scientific research.
Strong adaptability
Specially developed for quick on-site analysis, the instrument can be fog-proof, dust-proof, shock-proof, can adapt to the harsh environment.
Heat dissipation
The instrument is equipped with a special two-way ventilation heat dissipation device to improve the heat dissipation performance of the instrument.
Safety
It has professional multiple protective radiation treatment (sample chamber radiation shielding measures, safety linkage lock device), no radiation leakage in all directions of the instrument during measurement.
Data printing
It is equipped with a portable Bluetooth printer, while the data can be EXCEL, PDF format output, users can create custom reports.
Application scenario
Oil analysis
It is mainly used to analyze the sulfur content of automobile gasoline, diesel oil, distillate, jet fuel, kerosene, biodiesel, biodiesel blending fuel, ethanol gasoline, naphtha, residual oil, lubricating oil, crude oil and other liquid oil products
Chemical testing
suitable for petrochemical enterprises raw material screening, finished products, quality control and other links
Law enforcement detection
suitable for environmental protection supervision departments, quality supervision departments to screen the quality of oil, including but not limited to heavy road cargo transport vehicles, non-road mobile machinery, gas stations, petrochemical enterprises, ship fuel and other law enforcement testing
Product parameter
Weight
8.9KG
Size
400*340*195mm（L×W×H）
Excitation source
Air cooled X-ray tube
X-ray tube target
Cu target or Co, Cr, Fe, Ni, Mo, Ag, W target (optional according to test sample)
X-ray tube voltage
Maximum 50kV, 0-50kV adjustable
X ray tube power
Maximum 50W, 0-50W adjustable
Crystal
Hyperboloid curved crystal
The detector
level 2 Pelter refrigeration CCD
Display
5.7 inch
Detection range
Mg—U
The battery
Equipped with intelligent lithium battery, a single battery can work for 4 hours, the laboratory environment can also be powered by adapter.
Working temperature
-20℃~50℃
Working humidity
20%~90%RH
Data output
USB, GPS，4Gcommunication
Measuring time
30~600s
Detection limit
optimal125eV
Repetitive
≤5%
System processor
Based on the I. MX 6 Quad quad-core Cortex-A9 processor
Dedicated analysis-level operating system
80MHz ADC digital pulse processor
4096 MCA channel, 32 GB memory
