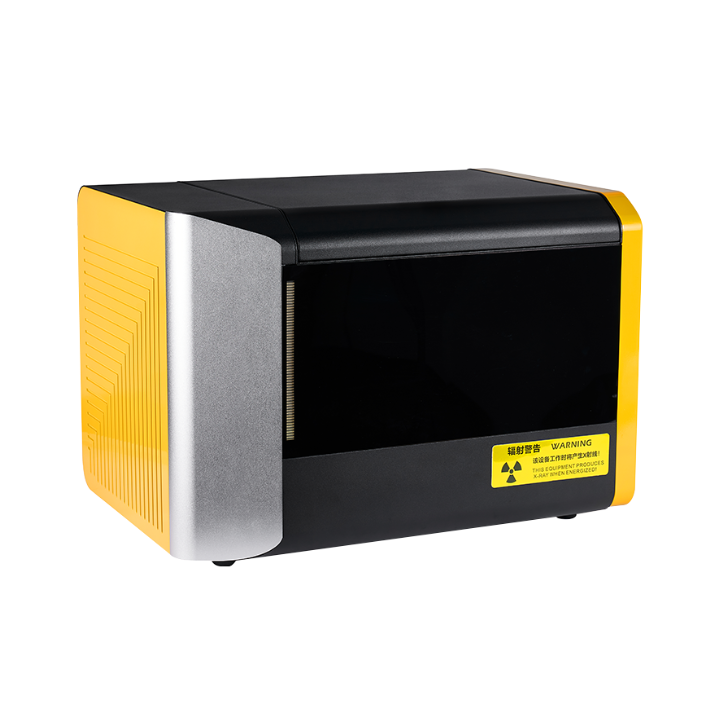

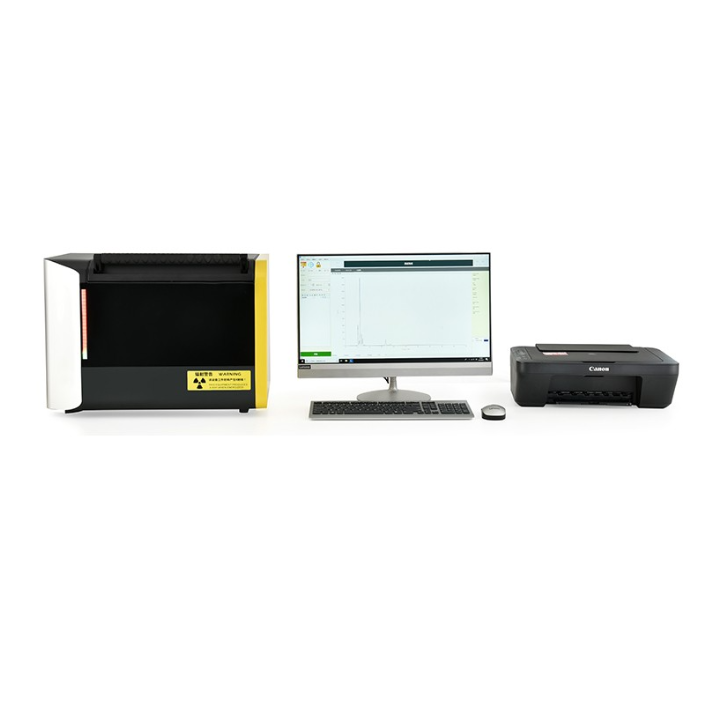

Industrial Benchtop Coal ASH Analyzer
ScopeX ASH analyzer is designed for coal ash composition analysis in coking enterprises. Equipped with intelligent software and high-quality hardware, the ScopeX ASH ASH analyzer features wide linear range, fast analysis, high reproducibility and high accuracy. It is widely used in cement, iron and steel smelting, mineral development smelting, refractory materials, powder metallurgy, petroleum exploration, logging analysis, rare earth materials, environmental monitoring, non-ferrous metals, food, agriculture, scientific research institutes, universities, industrial and mining enterprises and other fields.
Advantage
High performance configuration
Low energy X-ray with intelligent vacuum system, Si, P, S, Al, Mg and other light elements have a good excitation effect, XRF technology can be used to analyze the high content of Cr, Ni, Mo and other key elements.
A variety of collimator, filter automatic switch
5mm, 3mm, 1mm, 0.5mm four kinds of collimator, collimator and filter can be automatically switched by the software, save time and effort, through the appropriate combination of collimator and filter can improve the detection accuracy and sensitivity.
Nondestructive testing
Without damaging or affecting the performance of the tested object, the whole test process without any damage.
Peltier refrigeration
Peltier electric refrigeration without liquid nitrogen. Reduce the complexity of the device, and save manpower and equipment maintenance costs.
Data transmission
USB, WIFI, wireless Bluetooth and other methods for data transmission.
Application scenario
Coal mining, coal washing, coal blending
Coking, coal gasification
Coal power, petrochemical industry
Ore exploration and development, rock, core, rare earth element analysis
Metal alloy analysis, iron and steel smelting
Cement, limestone
Product parameter
Test object
Coal ash, coking coal, raw coal, etc.
Range of element
Na—U
Sample room size
304×368×78mm（L×W×H）
Sample weight range
0-2.5KG
Cover open
Automatic
Mainframe size
570×400×400mm（L×W×H）
Mainframe weight
64KG
X-ray tube
High power side window X-ray tube
Voltage
Up to 50kV
Current
Maximum 1mA
Cooling Method
Air cooling
Detector
SDD
Test environment
Air mode、Helium mode、Vacuum mode
Sampling Method
Hand sampling、Autoinjection
Sample Observation
5 megapixel HD industrial camera
PC(CPU)
CPU is I3-7100 with the same main frequency or above
RAM
DDR4 4 GB memory or above
ROM
1TB HDD or 256GB SSD or above
OS
Windows 10
Temperature conditions
10°C~35°C
Relative humidity
40%-70% （No condensation）
Power supply
220VAC
Rated power
600W
