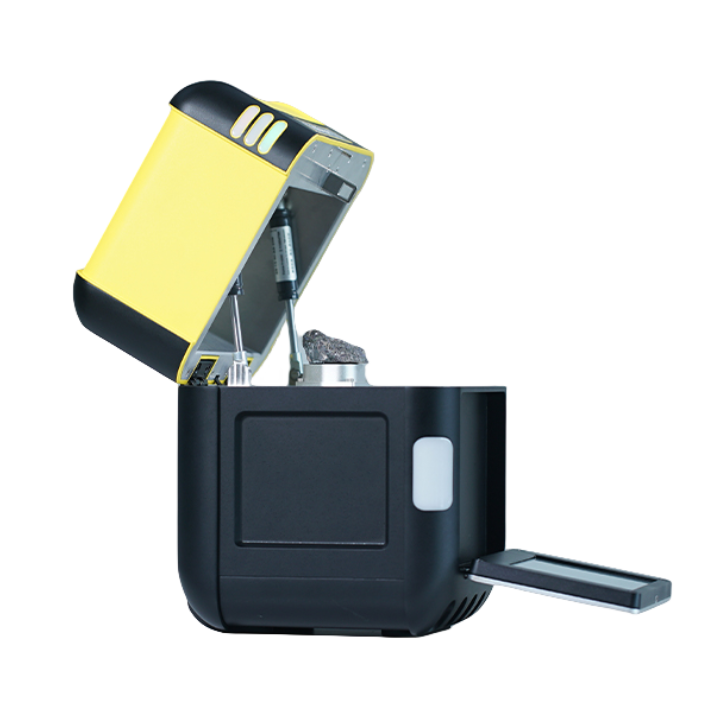

PeDX Portable Metal Jewelry Industrial XRF Analyzer
PeDX is a portable X-ray fluorescence (XRF) analyzer designed by LITH according to the analysis needs of users. It has the advantages of portability, fast analysis speed, good stability and high accuracy. It is mainly used in waste recycling, environmental assessment, consumer product safety, metal materials, metal jewelry, petrochemical industry, geological and mineral exploration and other fields, providing value judgment basis for product trade, processing, quality testing, safety audit and recycling in these fields.
Advantage
One-click intelligent operation
The whole analysis process can be completed in just a few seconds. The operation is simple and even non-technical people can easily use it.
Easy customization
On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.
Multiple forms of data output
Analytical data reports can be made in PDF format or Excel format. When exporting data in Excel format, you can also confirm and edit the data in detail in the table. Users can also create customized professional reports, including company logo, company address, test results, spectrogram and other sample information (such as product description, origin, batch number, etc.).
Accurate and reliable qualitative and quantitative methods
It integrates advanced algorithms such as super-FP algorithm and correction curve method of LITH's front, making the instrument not only faster, higher accuracy and stronger consistency of measurement.
Application scenario
Alloy applications
Positive Material identification , QA/QC, waste sorting
Environmental assessment
soil detection, solid waste detection
Consumer compliance and safety screening
RoHS compliance screening
Geology and Chemistry
mineral exploration, ore detection
Precious metal detection
jewelry/precious metal identification, automobile catalyst detection
Oil analysis
detection of wear metal in oil
Product parameter
Weight
4.1KG
Size
200×200×268mm（L×W×H）
Sample Room Size
170×130×60mm（L×W×H）
Excitation Source
Up to 50kV, 200uA X-ray tube, upper excitation power 4W, Ag/Rh target(Optional)
Detector
BOOST Si-pin/SDD(Optional)
Detection Range
Mg—U
Data Processing
Built-in 32GB storage
USB, can connect the device to the Internet, remote setting and maintenance of the instrument
Air mode
Air mode、Helium mode、Vacuum mode(Optional)
Safety
Built-in X-ray protection (automatic cut-off)
Safety interlock, can only open the instrument under the condition of power (closed performance)
Radiation indicator light
Resolution
<136eV
Operating ambient temperature
-20℃~50℃
Operating ambient humidity
10%~90% relative humidity, non-condensing
Display
5.7-inch absorbable color touch screen display
Test Time
User customize
Optional
Built-in 5-megapixel HD camera
Language
Chinese, English, etc.
