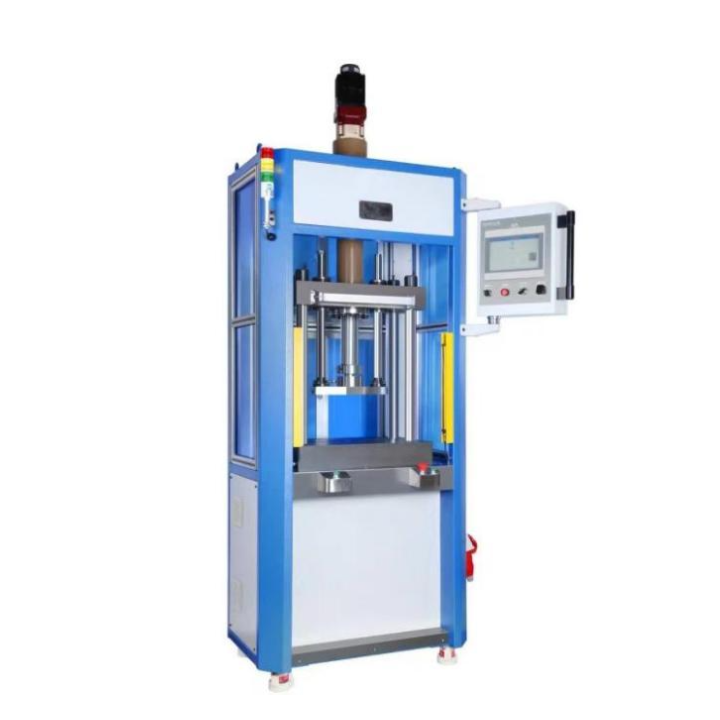

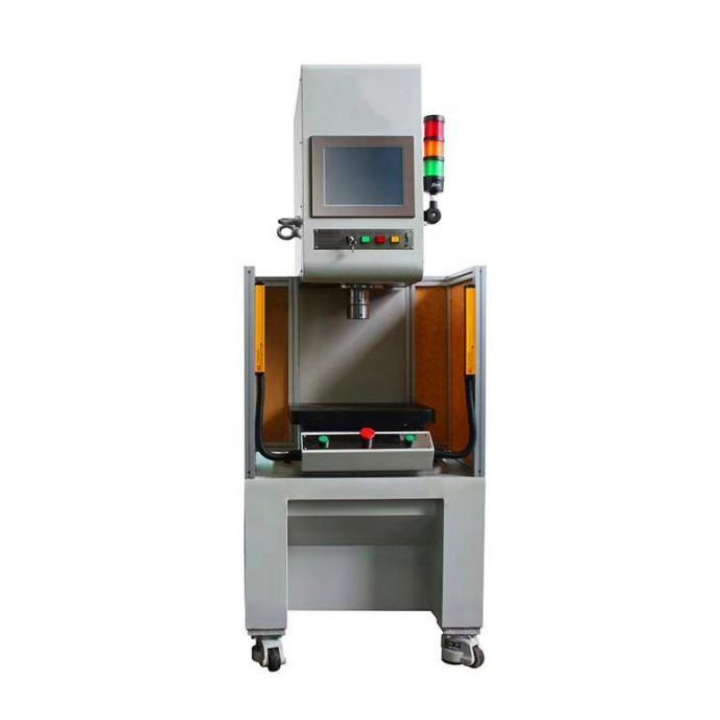

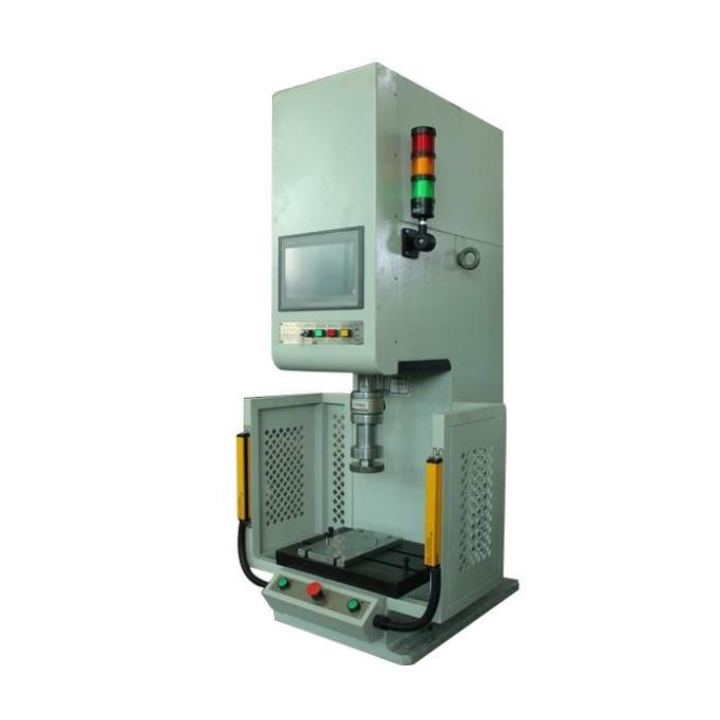

Automatic CNC Powder Forming Hydraulic Press Machine for Punching or Molding Alumina Ceramic Powder

Introduction

Precision CNC Servo Press its working

principle is the high precision ball screw driven by servo motor precision pressure assembly operations ,can be implemented of the whole process of the closed loop control ,so as to realize the online quality control precision of the pressure equipment .The main structure of servo press can be divided into C type, arch, two columns and four columns.

Product parameters

Model		BSW08-0.5T	BSW08-1T	BSW08-2T	BSW08-5T	BSW08-10T	BSW08-20T
Nominal pressure（T）		0.5	1	2	5	10	20
Surface height(E) mm		850	850	850	850	850	850
Maximum opening distance（H）mm		300	350	350	400	500	500
Deep throat(s) mm		150	150	175	200	225	250
Maximum stroke(mm)		200	200	200	200	200	200
Work bench size	Left and right(L) mm	400	400	400	500	550	600
Work bench size	Before and after(W) mm	300	300	350	400	450	500
Speed	Rated load speed(mm/s)	≤160	≤160	≤160	≤100	≤100	≤100
Speed	Working speed(mm/s)	≤35	≤35	≤35	≤35	≤35	≤35
Main frame size(mm)		600x700x1800	650x750x1950	650x850x2100	680x950x2300	850x1000x2500	950x1100x3200
Power （Kw）		0.75 Kw	1.3 Kw	3Kw	4.4 Kw	7.5 Kw	15 Kw

Features

1. Pressing loading depth, press-fit depth, holding time, etc. can be input on the operation panel, friendly interface and simple operation.

2. Compared with the traditional pneumatic and hydraulic presses, the energy saving effect is over 80%, and it is more environmentally friendly and safe, which can meet the requirement in the dustless workshop.

3. It can be customized, stored and called 100 sets of pressure assembly .The three kinds of pressure loading modes can be seleted to meet your different process requirements.

4. Through the USB interface, the data can be stored in the flash disk,so as to ensure the traceability of product processing data and facilitate the management of production quality control.

5. Since the machine itself has precise pressure and displacement control functions, it is not necessary to impose a hard limit on the tooling. when processing different ,we can only call different pressure programs specifications, so we can easily realize the multi-purpose and flexible line .

6. Press of force and displacement, being connected graph can be displayed in the lCD touch screen, the whole process control can be automatically determine whether the product is qualified in any of the stage, 100% implementation of removing bad product, so as to realize the on-line quality control.

Dimension
