40T CNC Servo Metal Deep Draw Punching Hydraulic Press Machine
Introduction
The servo hydraulic press is a new type of energy-saving and high-efficiency hydraulic press that uses a servo motor to drive the main drive oil pump to reduce the control valve circuit and control the hydraulic press slider head.
The servo hydraulic press is a smart press that has been newly designed by Bussie Machinery R&D personnel through computer-aided design technology combined with years of design and development experience.
Product parameters
Model
BSW07S -10T
BSW07S -20T
BSW07S -30T
BSW07S -40T
BSW07S -50T
BSW07S
-60T
Nominal pressure（T）
10
20
30
40
50
60
Maximum working pressure of liquid（Mpa）
21
21
21
21
21
21
Surface height(E) mm
850
850
850
850
850
850
Maximum opening distance（H）mm
500
500
500
550
550
600
Deep throat(s) mm
200
200
225
225
250
250
mm
Maximum stroke
300
300
300
300
300
400
Work bench size
Left and right(L) mm
500
500
550
550
650
650
Before and after(W) mm
400
400
450
450
500
500
Speed
Rated load speed (mm/s)
165
165
165
165
155
155
Working speed(mm/s)
3-25
3-25
3-25
3-18
3-15
3-15
Return speed(mm/s)
140
140
140
125
125
125
Main frame size(mm)
700x950x2160
750x1000x2250
760x1000x2300
780x1050x2350
800x1060x2500
830x1100x2600
Power（Kw）
3.7 Kw
3.7 Kw
5.5Kw
7.5 Kw
7.5 Kw
11 Kw
Features
1. This series of hydraulic presses is powered by 2-20MPA hydraulic pressure, with external three-phase AC380V 50HZ or three-phase AC220 60HZ AC power supply.
2. Energy saving: hydraulic and electric control adopt intelligent servo energy saving system, saving 30%-60% compared with traditional hydraulic machine.
3. Safety and precision: Each machine is equipped with infrared safety grating to effectively protect the operator and servo CNC precision control to ensure the repeatability of the machine can reach ±0.03mm and the pressure error is ±1%.
4. Low failure rate: servo control system, no useless work, oil temperature is not easy to rise, and there is no negative pressure in the oil circuit system, which greatly reduces the fault and prolongs the service life of the hydraulic components. Key reset function.
5. Stable and durable: the frame adopts the whole frame structure, the slider adopts the precision guide rail to run, the shock resistance and the anti-side pressure are strong, the whole machine is stable, precise and durable, suitable for precision press fitting, assembly, blanking, forming and extrusion. And many other process uses.
6. Convenient maintenance: The whole machine is designed according to different function modes and designed into a module structure. It is easy to disassemble and assemble. The general fault can be directly viewed through the touch screen, and the maintenance is simple.

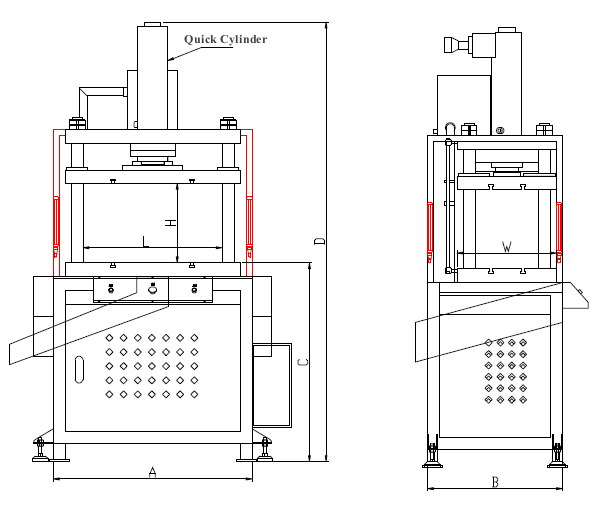

Dimension
Application

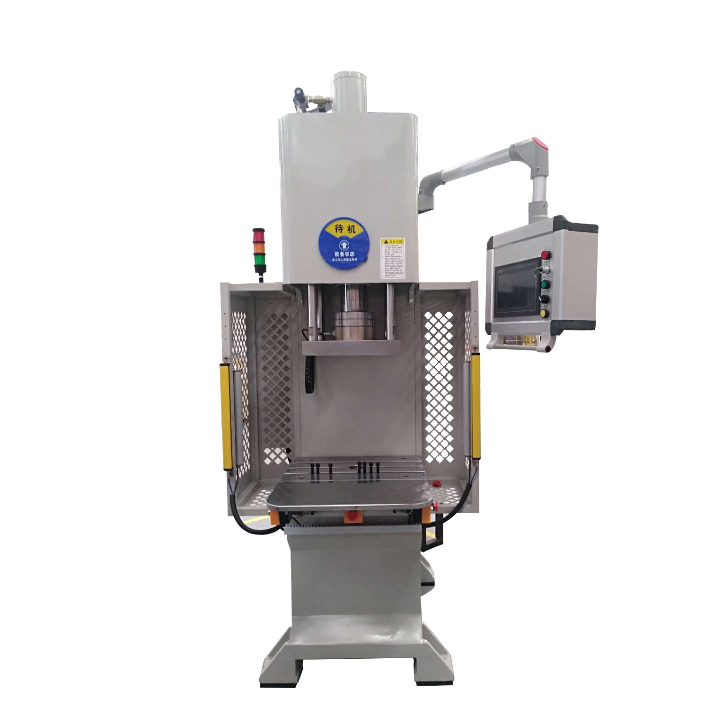

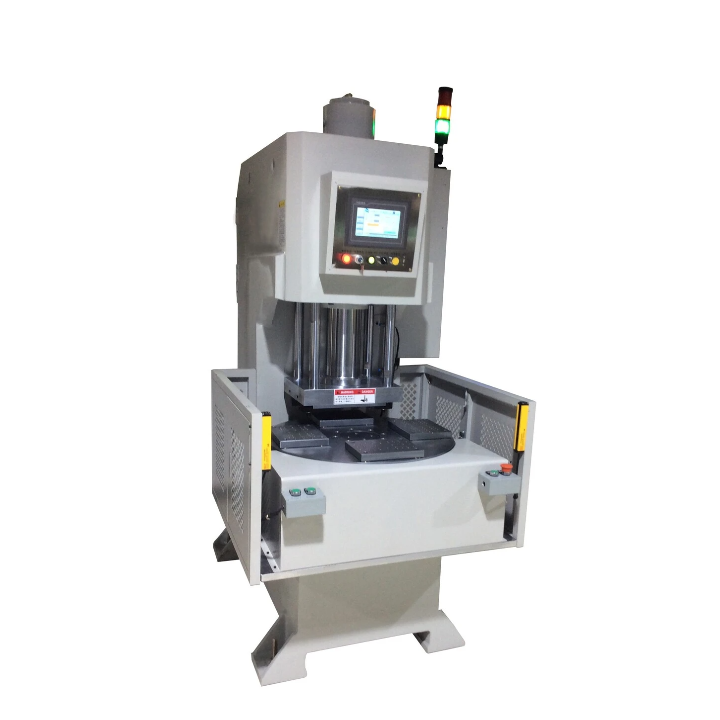

Pictures
