30T Manual Double Action Hydraulic Oil Press Metal Sheet Forming Machine
Introduction

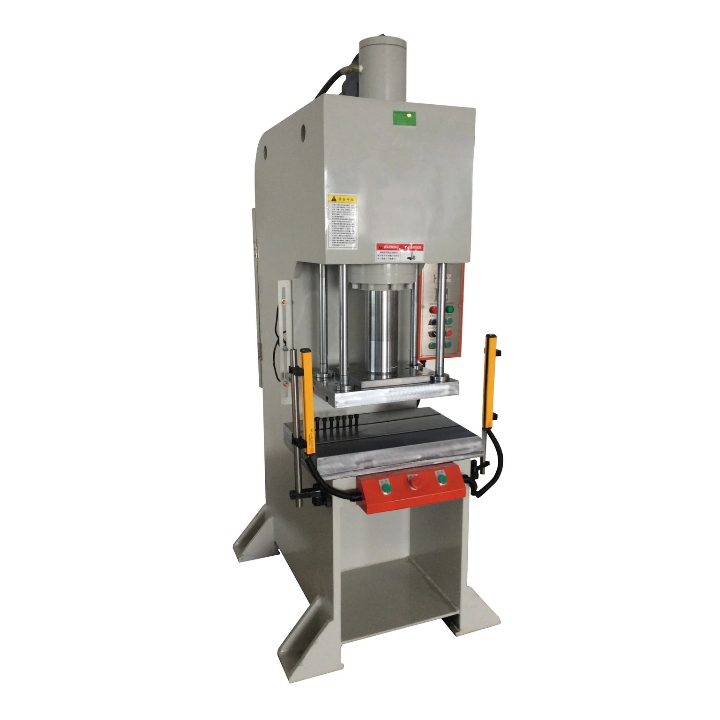

The single-column hydraulic machine body is a C-type floor-standing structure, open on three sides, easy to operate, and tempered after welding to ensure that the frame will never deform. It is mainly used for press fitting, assembly, shallow drawing of metal products, and forming pressing. , embossing, is a general-purpose equipment for motors, shafts, auto parts, electronic hardware products, internal combustion engines, textile machinery, washing machines, electrical appliances and other factories.
Product parameters
Model
BSW07
-10T
BSW07
-20T
BSW07
-30T
BSW07 -40T
BSW07 -50T
BSW07
-60T
Nominal pressure（T）
10
20
30
40
50
60
Maximum working pressure of liquid（Mpa）
21
21
21
21
21
21
Surface height (E) mm
850
850
850
850
850
850
Maximum opening distance（H）mm
400
400
500
550
550
600
Deep throat (s) mm
200
200
225
225
250
250
Maximum stroke(mm)
300
300
300
300
300
400
Work bench size
Left and right (L) mm
500
500
550
550
650
650
Before and after (W) mm
400
400
450
450
500
500
Speed
Rated load speed (mm/s)
165
165
165
165
155
155
Working speed(mm/s)
24
24
24
18
15
15
Return speed(mm/s)
140
140
140
125
125
125
Main frame size(mm)
700x950x2050
700x950x2060
760x950x2100
780x950x2150
800x950x2150
830x1000x2350
Power（Kw）
2.2Kw
3.7 Kw
3.7Kw
3.7 Kw
5.5 Kw
5.5 Kw
Features
1. Floor-standing hydraulic press has the characteristics of good rigidity, stability and high speed because it is a welding mechanism as a whole.
2. This series of hydraulic presses uses 2-20MPA liquid pressure as the power source, and external three-phase AC380V 50HZ or three-phase AC220 60HZ AC power supply.
3. This series of equipment uses liquid as the medium to transfer energy. It adopts advanced sub-cylinder hydraulic circuit, the oil temperature is low, the idle speed is above 150MM/sec, and the working speed is below 30 MM/sec.
4. The equipment is on standby, and the noise does not exceed 75 decibels when moving up and down.
5. It can be divided into manual and semi-automatic control modes. Manually, the press-fit upper mold can be stopped in any stroke range. It can be equipped with an emergency rebound button or an infrared hand guard device.
6. The press-fit stroke of this series of presses is generally controlled by a timer, pressure switch, position sensor, or the customer's own mold.
7. The height of the press-fit spindle can be adjusted by the timer or the position sensor within any stroke range.
8. Pressure, stroke, holding time, closing height can be adjusted by the customer for easy operation; with automatic counting function, can also be equipped with force measuring display, intelligent temperature controller, can be customized according to customer requirements.
9. The hydraulic mechanical output range of this series is available in various specifications of 15tf-100 tf. (1tf=1000kgf=9.8KN).
Dimension
Application

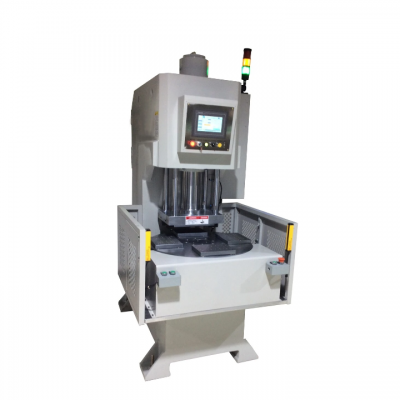

Pictures
