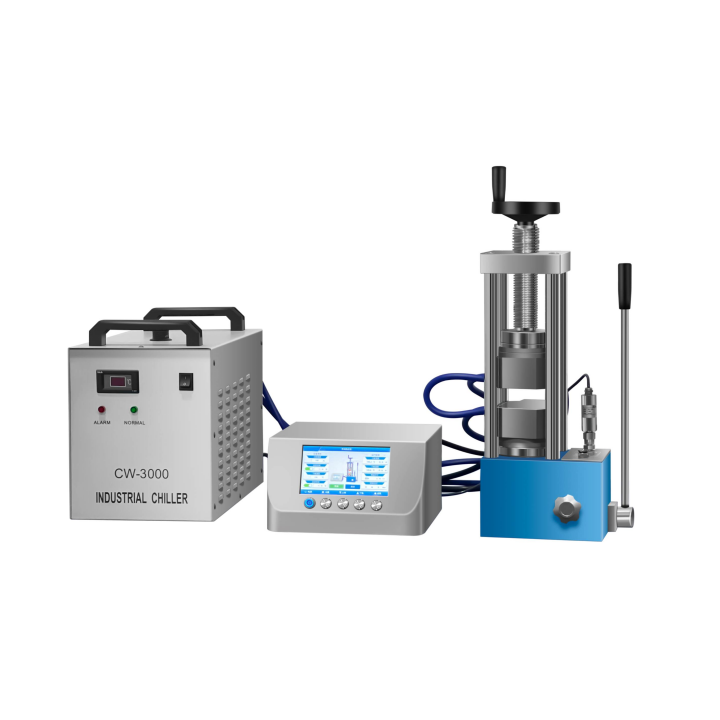

Lab 600W 300C or 600C Double Plate Programmable Manual Hot Press Machine

Operation interface

Standard interface: The heating temperature and constant temperature time of the upper and lower plates can be set separately on the interface.

Clear button:Calibrate the pressure to zero.

Upper plate button: Heat the upper heating plate.

Lower plate button: Heat the lower heating plate.

Timing switch: The timing function can be turned on and off.

Operation interface

Start button: It can be pressurized according to the multi-stage pressurization program.

Stop button:Press the stop button to stop the heating process.

List/Curve: The current display state can be switched between list and curve

Settings interface

Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"

Settings interface

Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen

Settings interface

Sample shape: Round, circular, square and other shapes can be selected.

Sample size: The size of the sample can be entered.

Rapid cooling: If the device is connected with a water cooler, the water cooler can be turned on during the rapid cooling procedure to quickly drop to the temperature we set. The device can automatically control the opening and closing of the water cooler.

Cooling range: "5" indicates that the current temperature is greater than the set temperature, and the value begins to cool down.

300 indicates that the set temperature starts to heat up when the value is lower than the set temperature.

Settings interface

Data management interface, saved data records can be invoked or deleted.

Settings interface

Temperature - pressure coefficient setting

Maximum temperature:300 indicates that the upper limit of the device temperature is 300℃

Temperature range:600 represents the range of the thermocouple

Upper temperature deviation: represents the difference between the displayed temperature and the actual temperature of the upper heating plate, and the temperature can be calibrated

Lower temperature deviation: represents the difference between the displayed temperature and the actual temperature of the lower heating plate, and the temperature can be calibrated

Maximum pressure: The highest usable pressure of the equipment.

Pressure range: The range of the pressure sensor.

Pressure coefficient: The coefficient of the cylinder.

Pressure deviation: The actual pressure value and the actual pressure error can be adjusted by adjusting the pressure deviation

Temperature-pids control

P stands for what value is executed as this parameter.

I indicates the device pause time. A larger value indicates a slower speed

D represents the entire working cycle of the motor, and D is greater than I

S represents the number of distance set values, start to start the PID speed regulation program.

Display Settings

Language: Convert the language.

Display brightness: 0-100%.

Key beep: Whether to open.

Touch screen test: Touch screen calibration is possible.

Operation steps

Technical parameter
