Lab Adjustable Automatic Edger Optional Equipment for Cylindrical Cell Production

Product overview:

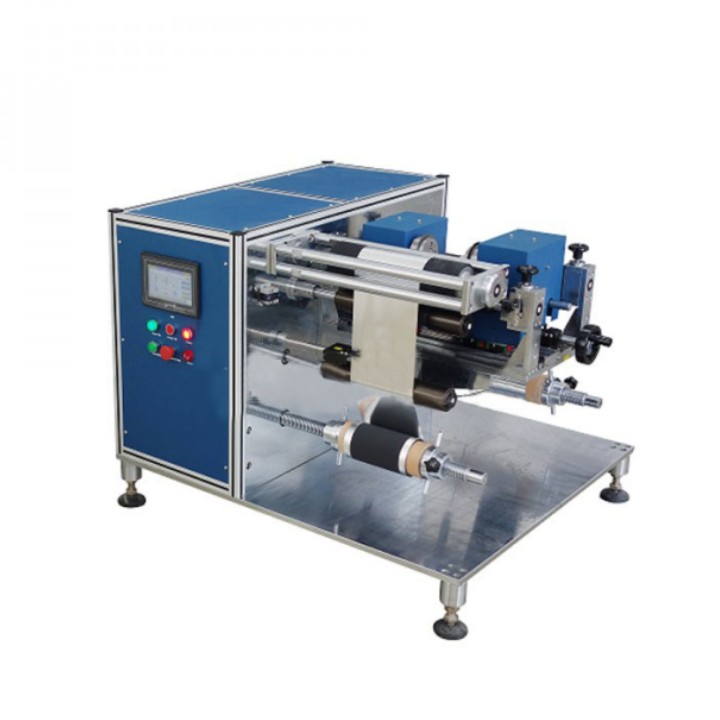

MSK-540 automatic edging machine can achieve continuous precision edging of coiled materials within 300mm width, the width is stepless adjustable, especially suitable for the width often need to adjust the single strip precision cutting occasion.The machine is widely used in the lithium-ion battery, metallic foil, optical film and other functional film industries.

Product features:

Single-stand plate structure, precision cutting tool holder;

Upper and lower round knife structure, cutting width stepless adjustable, width parameter digital display;

Ultra-fine tungsten steel blade, good slitting quality, super long service life;

The cutting quantity is adjustable, the ratio of cutting speed to material linear speed is adjustable;

By adjusting the inlet and outlet Angle, can adapt to different material and thickness value of the material cutting;

Automatic control of winding tension, up and down axis within 50N independent adjustable;

PLC control, HMI operation, easy to use;

Technical parameters:
