Model

LITH-SYP-2TI

Pressure range

0-2T(30Mpa)

Piston diameter

28mm(d)

The biggest piston itinerary

5mm(T)

Stability of pressure

≤1MPa/10min

Diameter of working table

Φ45mm(D)

Column number

2 columns

Column spacing

54*55(M*N)

Overall dimensions

100*220*220(W*L*H)

Weight

4.8Kg

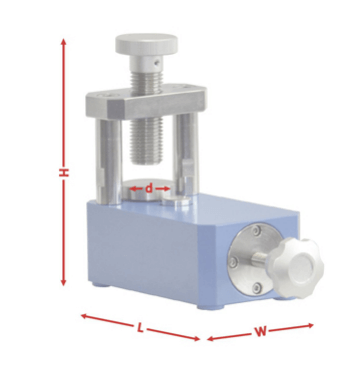

Dimension diagram of tablet press
