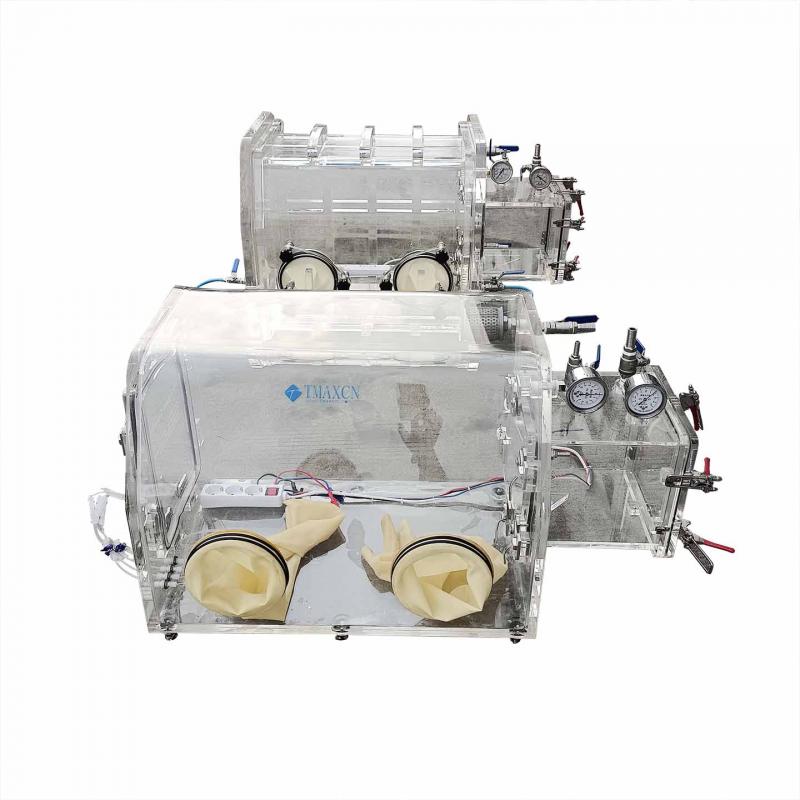

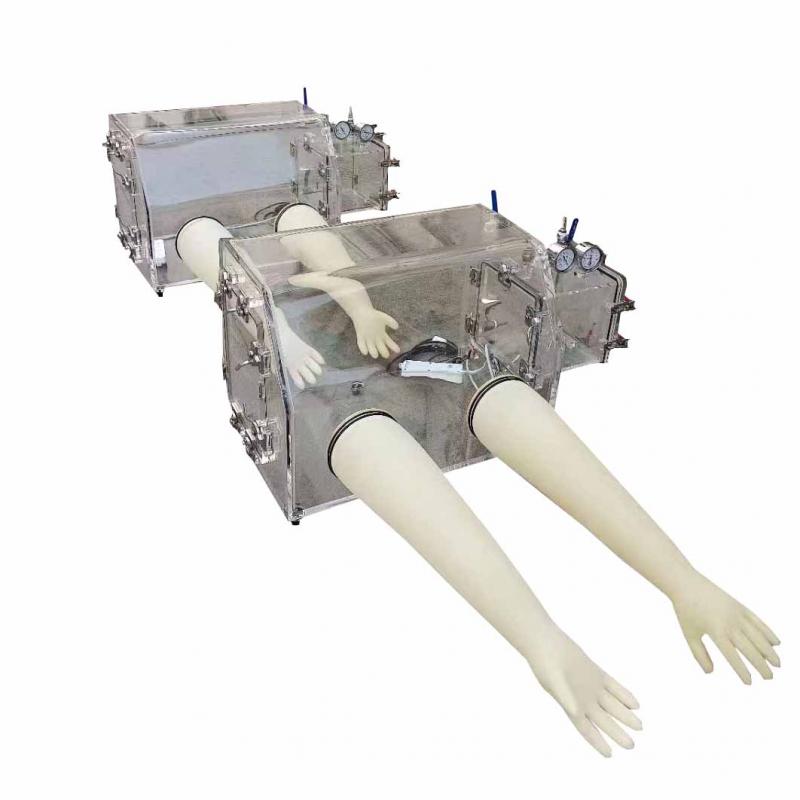

Lab Transparent Acrylic Glove Box with Vacuum DeviceB
|
|
Item |
Specifications |
|
Main box |
Plexiglass operating box GBT-10B |
1000*500*500 （thickness 10 mm） |
|
Main box |
Plexiglass operating box GBT-15B |
1000*500*500 （ thickness 15 mm） |
|
Main box |
Plexiglass operating box GBT-30B |
1000*500*500 （ thickness 30 mm） |
1. Description
During the scientific experiment, some substances are easily oxidized and deliquescent in the atmospheric state, which makes the chemical reaction of the test substance and the pre-treatment of the sample very difficult, affecting the test process and test results. The vacuum glove box (also known as the vacuum inert gas operating box) effectively solves these problems. The device allows the test sample to be safely placed and removed, and is freely operated, reacted and tested in an oxygen-free and anhydrous state. The normal conduct of scientific experiments.
2. Features
1) The structure is simple, convenient to use, transparent to ultraviolet light, and light in weight;
2) Under normal conditions, its shape is stable, highly transparent, chemically resistant and climate change;
3) The box is equipped with a porous electric socket for scientific experiments;
4) Good sealing performance, and can shield and absorb the α-ray and low-energy β-ray emitted by the radioactive material to protect the human tissue from ionizing radiation damage;
5) The inert gas replacement method can be performed to maintain the anaerobic and water-repellent operating environment.
3. Technical parameters and requirements
|
NO. |
Item |
Specification（GBT-10B） |
Specification（GBT-15B） |
Specification（GBT-30B） |
|
1 |
Box size |
1000*500*500mm |
1000*500*500mm |
1000*500*500mm |
|
2 |
Transition size |
240*240*240mm |
240*240*240mm |
240*240*240mm |
|
3 |
Material |
Acrylic material (PMMA) |
Acrylic material (PMMA) |
Acrylic material (PMMA) |
|
4 |
Thickness |
10mm |
15mm |
30mm |
|
5 |
Interface |
Two. One is the air inlet and one is the air outlet. |
Two. One is the air inlet and one is the air outlet. |
Two. One is the air inlet and one is the air outlet. |
|
6 |
Outlet |
The box is equipped with 1 socket plate, 4 sockets, 2 holes, 3 holes can be universal |
The box is equipped with 1 socket plate, 4 sockets, 2 holes, 3 holes can be universal |
The box is equipped with 1 socket plate, 4 sockets, 2 holes, 3 holes can be universal |
|
7 |
Gloves |
Durable, yellow gloves, arm part fixed glove box glove mouth. |
Durable, yellow gloves, arm part fixed glove box glove mouth. |
Durable, yellow gloves, arm part fixed glove box glove mouth. |
|
8 |
Vacuum degree |
Micro vacuum ±3000pa |
Micro vacuum ±3000pa |
Vacuum -0.1mpa |
