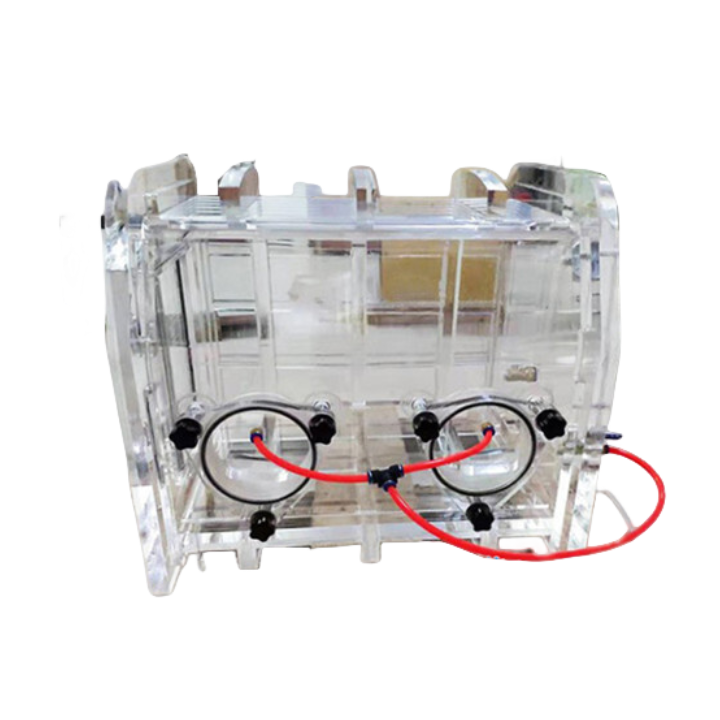

Bench Top Transparent Acrylic Glove Box with Porous Electric Socket
Plexiglass glove box model naming instructions
A - plexiglass glove box size model (A type, B type, C type, D type)
10--Plexiglass Glove Box material thickness (box thickness 10--40mm)
GBP - product code (Plexiglass Glove Box abbreviation)
All series of products transition chamber, the left side of the door are optional accessories, (i.e., you can not choose to match the transition chamber) according to the customer's specific use needs to be determined.
Model number |
Box size(m) |
Material |
Box thickness |
Transition chamber |
Left side opening door (WxH)(m) |
Remark |
GBP—10A |
700×450×500 |
P |
10 |
240×240×240 |
245*325 |
Isolated dustproof, micro-vacuum |
GBP—15A |
15 |
|||||
GBP-30A |
30 |
252*330 |
Vacuum to -0.1MPA, replacement deoxidizing and dewatering |
|||
GBP—10B |
1000×500×500 |
10 |
260*340 |
Isolated dustproof, micro-vacuum |
||
GBP—15B |
15 |
|||||
GBP-30B |
30 |
Vacuum to -0.1MPA, replacement deoxidizing and dewatering |
||||
GBP—10C |
1200×600×600 |
10 |
358*422 |
Isolated dustproof, micro-vacuum |
||
GBP—15C |
15 |
|||||
GBP—40C |
40 |
350*450 |
Vacuum to -0.1MPA, replacement deoxidizing and dewatering |
|||
GBP—10D |
1200×800×700 |
10 |
528*488 |
Isolated dustproof, micro-vacuum |
||
GBP—15D |
15 |
|||||
GBP—40D |
40 |
515*525 |
Vacuum to -0.1MPA, replacement deoxidizing and dewatering |
Characteristics
1. Simple structure, easy to use, UV transmittable, light weight;
2. Under normal conditions, it is stable, highly transparent and resistant to chemical corrosion and climate change.
3. The box is equipped with porous electric socket, which is convenient for scientific test.
4. It has good sealing performance and can shield and absorb α-ray and low energy β-rays radiated by radioactive substances to protect human tissues from damage caused by ionizing radiation, so it can cooperate with scientific research units to carry out experimental work on low-energy radioactive substances, aseptic operation of microorganisms inoculation and qualitative and quantitative analysis of chemicals and other related confined isolation operations, which are all carried out inside the operation box.
Scope of application
Plexiglass glove box is widely used in biochemistry, metallurgy, electronics, chemical industry, geology, minerals, and electronic materials, magnetic materials, equipment batteries, biological cultivation, food vacuum packaging, battery materials and so on.
