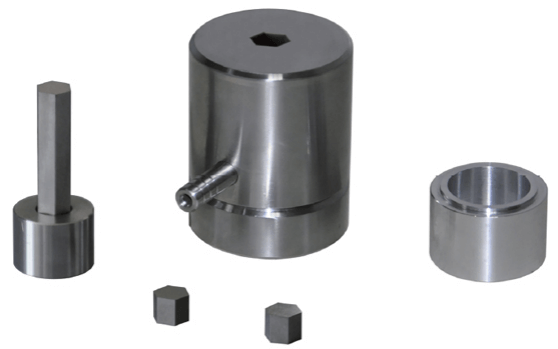

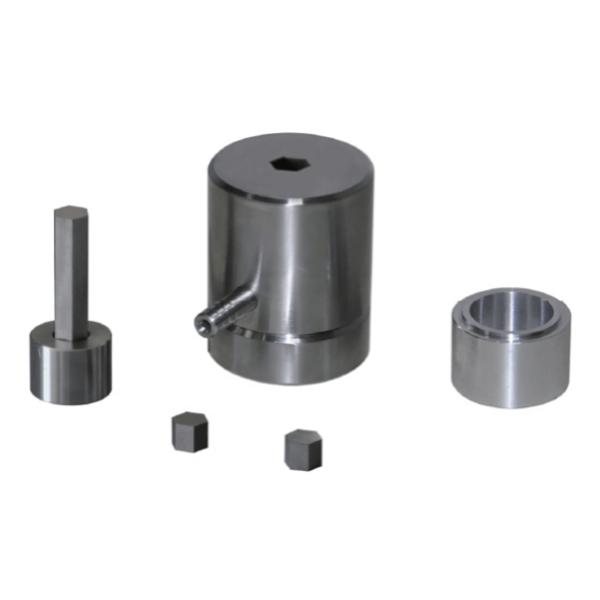

Lab Polygon Punch Press Die with Mold Material of Alloy Tool Steel
Parameter
|
Model |
LITH-PMD |
|
Compressed sample shape |
|
|
Mold material |
Alloy tool steel: Cr12MoV |
|
Indenter hardness |
HRC60-HRC62 |
|
Sample size |
5*5、10*10、15*15、20*20mm(M) |
|
Cavity depth |
40mm(N) |
|
Dimensions |
Φ53*120mm(L*H) |
|
Mold weight |
1.4kg |
|
Dimension diagram |
|

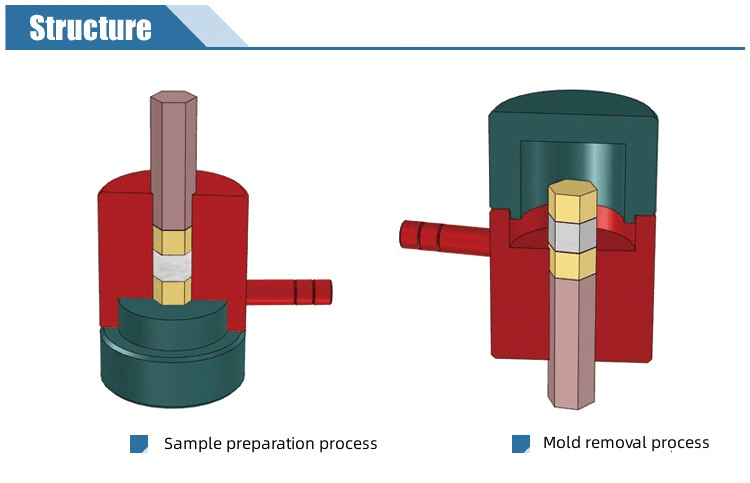

Schematic Diagram of Mold Operation

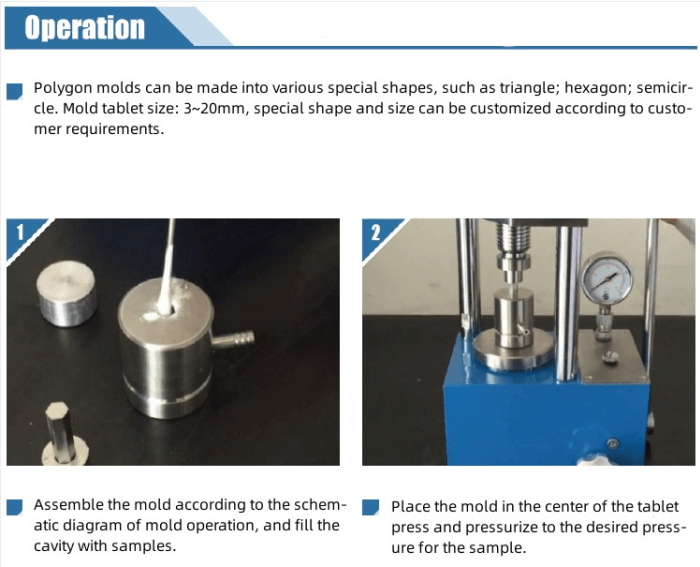

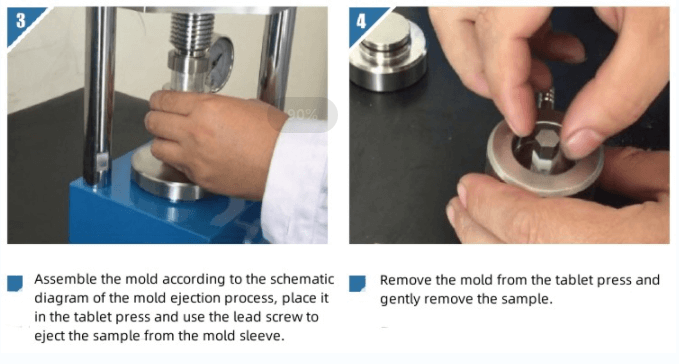

Mold sample preparation operation steps
Mold use and maintenance
