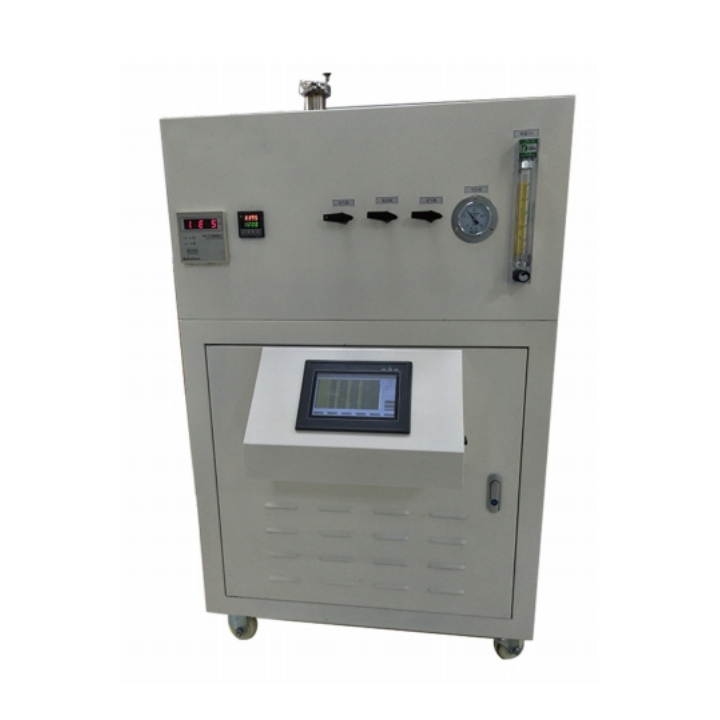

Lab 1200C Multi-functional Double Heat Source Microwave Tube Furnace with 2.45GHz Microwave Frequency
Summarize
1200℃ double heat source vertical tube furnace is a standardized multi-heat source vertical atmosphere tube furnace, resistance, microwave and mixed three heating modes switch to each other, multi-functional application scenarios, can meet the needs of various process research, especially suitable for a variety of solid phase/gas reaction, synthesis reaction and decomposition reaction
Main feature
1) Industrial brand microwave source, high quality resistance components, various heating methods;
2) Furnace body and vacuum system integrated design, simple structure, safe and reliable;
3) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved;
4) Vertical structure, intelligent switching of heating mode, more widely used.
Technical parameter
|
Model
Parameter |
HY-LZG1512E |
HY-LZG3012E |
|
|
Voltage |
220±10V，50Hz |
380±10V，50Hz |
|
|
Microwave output power |
0.01~1.40kW, continuously adjustable (Panasonic) |
0.01~2.80kW, continuously adjustable (Panasonic) |
|
|
Electric power |
3kw |
4kw |
|
|
Heating space (diameter x length) |
φ40x130mm |
φ60x140mm |
|
|
Microwave frequency |
2.45GHz |
||
|
Operating temperature |
<1200℃ |
||
|
Temperature measurement method |
Thermocouple/infrared |
||
|
Static limit vacuum |
≤100Pa |
||
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
||
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
||
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
||
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
||
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
||
|
Main body (L x W x H) |
About 700x550x900mm |
About 800x600x1000mm |
|
