Overview

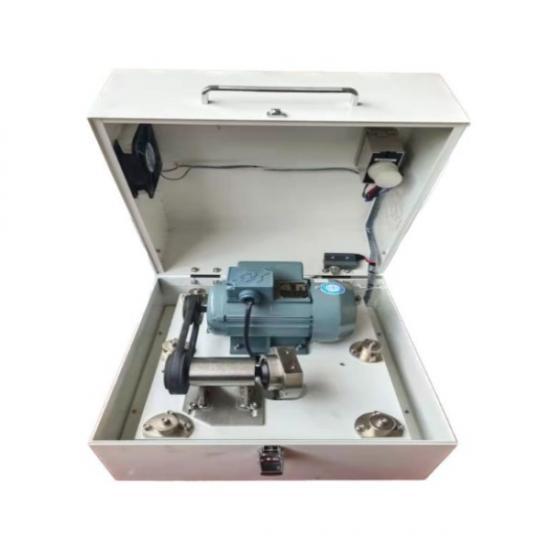

JT-80 high-speed vibrating ball mill is a high-efficiency small-scale instrument used for laboratory sample (small and trace) preparation.

Working principle

The instrument has rotational oscillation and vibration three-dimensional motion during grinding，and the collision energy is higher than other types of ball mills.

Advantage

 The instrument is small in size, light in weight, high in efficiency and cheap in price.

Scope of application

High-speed vibrating ball mill can use dry and wet methods to ball mill or mix various solids, suspensions and pastes with different particle sizes and materials. It can be used for material grinding, mixing and mechanical alloying.

Model Specifications

JT-80

Specification

50ml,80ml

Technical indicators

Maximum filling volume per tank: one third of the volume of the ball mill tank

Feed particle size

<1mm

Discharge particle size

Minimum to 0.1um

Swing frequency

1200 weeks/min

Timing range

0~9999 seconds and normally open

Motor Specifications

Single phase 220v 180W

Motor frequency

50Hz

Dimensions

405×365×260 (mm)

Features

The high-speed vibrating ball mill has an eccentric pendulum shaft. When the motor runs at a high speed, the tank body swings eccentrically; it drives the entire bracket to vibrate up and down, so that the grinding process is completed in a three-dimensional space of high-speed swing and vibration. Greatly improve the speed and efficiency of grinding.

Ball mill jar material type


80ml stainless steel（1Cr18NiTi）

50ml agate jar

50ml ceramic jar

50ml nylon jar

50ml teflon tank

50ml zirconia tank

80ml stainless steel vacuum tank

Stainless steel ordinary jacket

Vacuum stainless steel jacket

Standard number of grinding balls per jar

Φ10 20 pcs, Φ20 4 pcs
