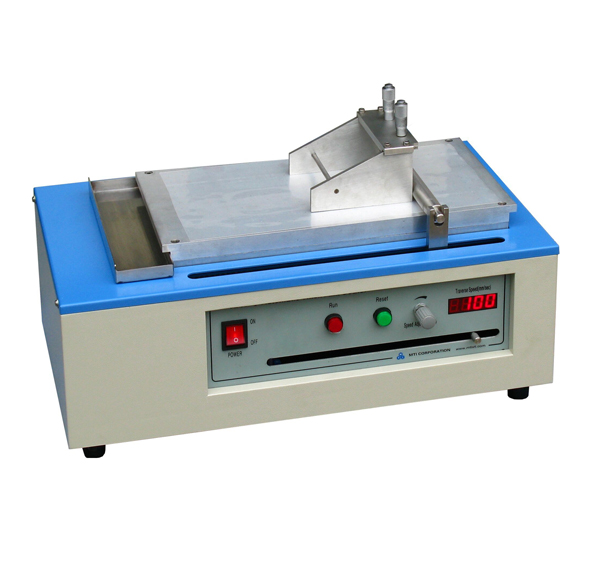

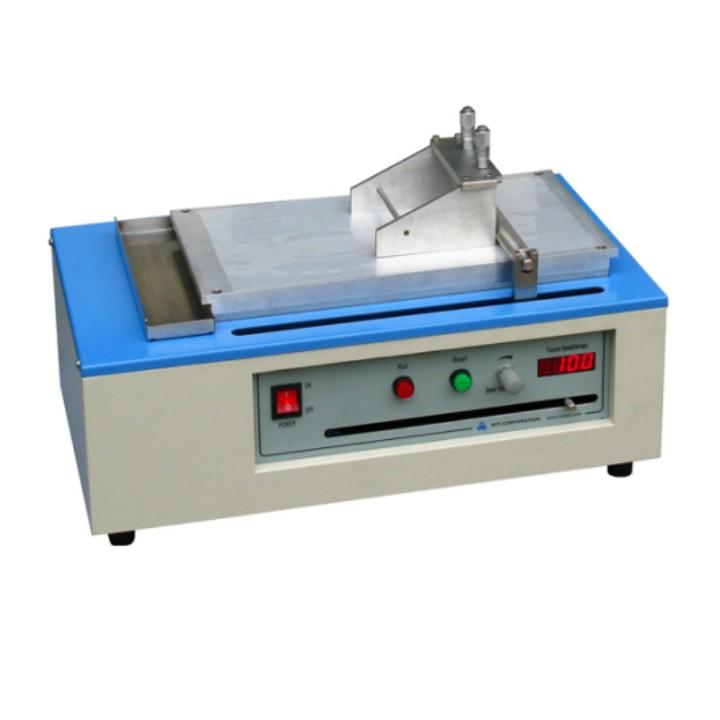

Laboratory High Temperature Automatic Coater Device with Digital Display
Product Name: Automatic Coater
MSK-AFA-I automatic coater is widely used in various high temperature coating research, such as ceramic film, crystal film, battery material film, special nano-film, and can adapt to the future development of film forming technology under high temperature conditions. MSK-AFA-I automatic coating machine adopts vacuum adsorption method to fix the substrate, so that the substrate is free of wrinkles during the coating process, thus making the coating process is even and smooth. The film thickness can be adjusted according to the micrometer above the squeegee, and the film thickness is thin if the gap between the squeegee and the substrate is small, and thick if the gap between the squeegee and the substrate is large. The film length can be controlled according to the squeegee stroke, which can be adjusted in the range of 10-290mm. MSK-AFA-I automatic coater is compact and suitable for use in various laboratories.
Features:
1. Adjustable coating speed with digital display.
2. Adjustable limit switch to control the coating stroke.
3. Using vacuum adsorption method to fix the substrate, can quickly pick and place the substrate. 4. It has passed CE certification.
Technical parameter:
|
Product Name |
MSK-AFA-I Automatic coater |
|
Model Number |
MSK-AFA-I |
|
Mounting Conditions |
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity. 1. Water: without 2. Electricity: AC220V 50Hz, must be well grounded 3. Gas: without 4. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more 5. Ventilation device: without |
|
Main Parameters |
1. Power supply: AC 220V, 50HZ 2. Total power: 50W 3. Coating speed: 10mm/s-100mm/s adjustable 4. Coating stroke: 10mm-290mm 5. Vacuum aluminum plate: 360mm×200mm (length×width) 6. Vacuumable size: 300mm×150mm(L×W) 7. Film maker: 150mm micron level adjustable (other sizes are available), adjustment range 0.01mm-5mm
8. Membrane thickness accuracy: ±0.01㎜ |
|
Product Specification |

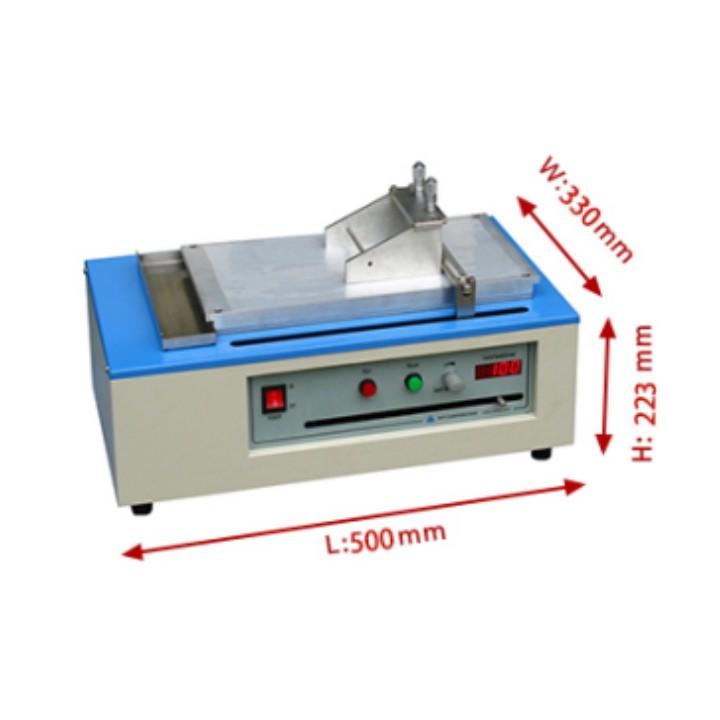

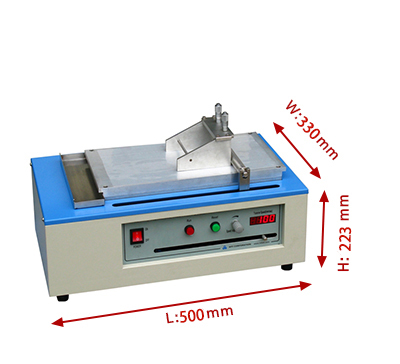

Size: 500mm x 330mm x 223mm.
Weight: 50kg |
Standard Accessories：
|
No. |
Name |
Amount |
Picture |
|
1 |
Pusher bar |
1 |
|
|
2 |
Aggregate box |
1 |
|
|
3 |

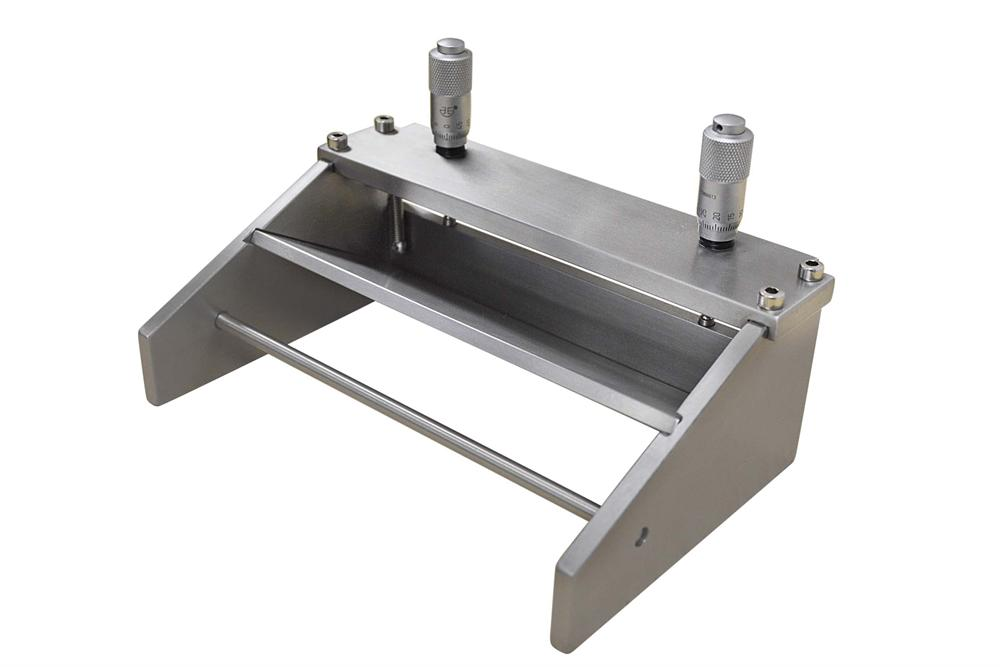

150mm micrometer modifiable membranes |
1 |
|
|
4 |

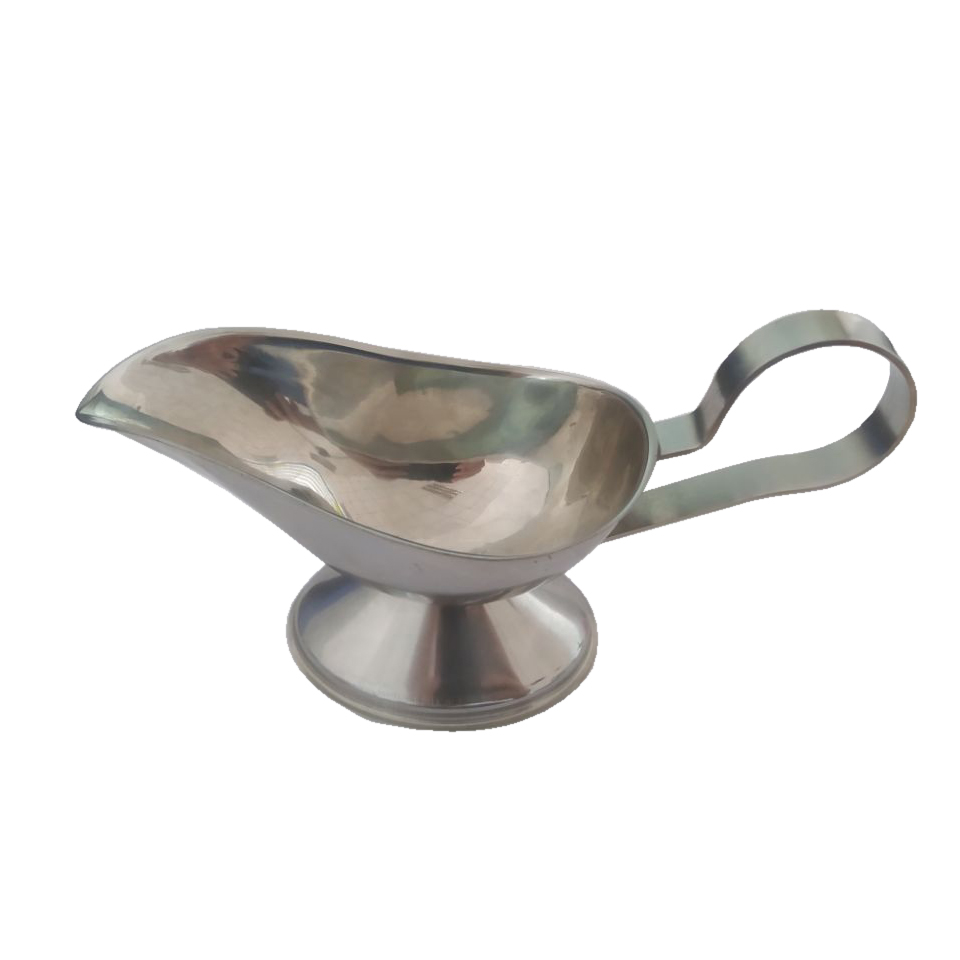

Ingredient cup |
1 |
|
Optional Accessories：
|
No. |
Name |
Function Category |
Picture |
|
1 |

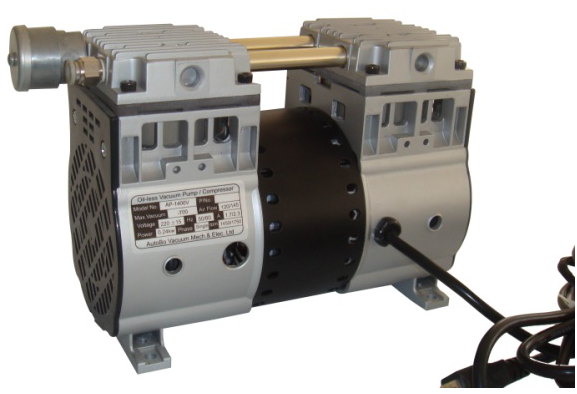

Vacuum pump (AP-1400V oil-free vacuum pump) |
（avaliable） |
|
|
2 |

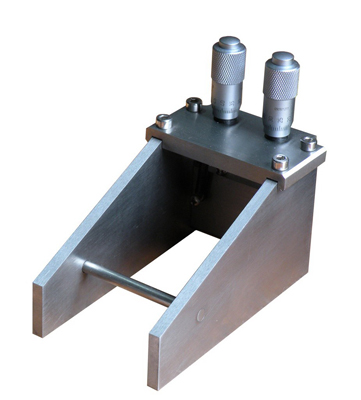

Micrometer modifiable membrane-50mm |
（avaliable） |
|
|
3 |

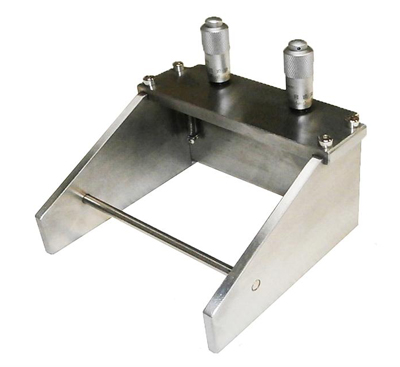

Micrometer modifiable membrane-100mm |
（avaliable） |
|
|
4 |

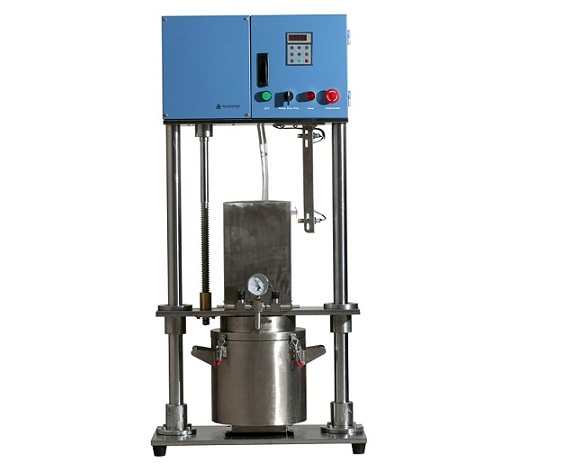

Vacuum Mixer |
（avaliable） |
|
|
5 |

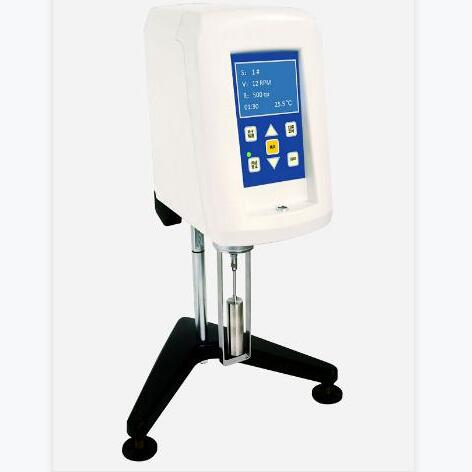

Viscometer |
（avaliable） |
|
|
6 |

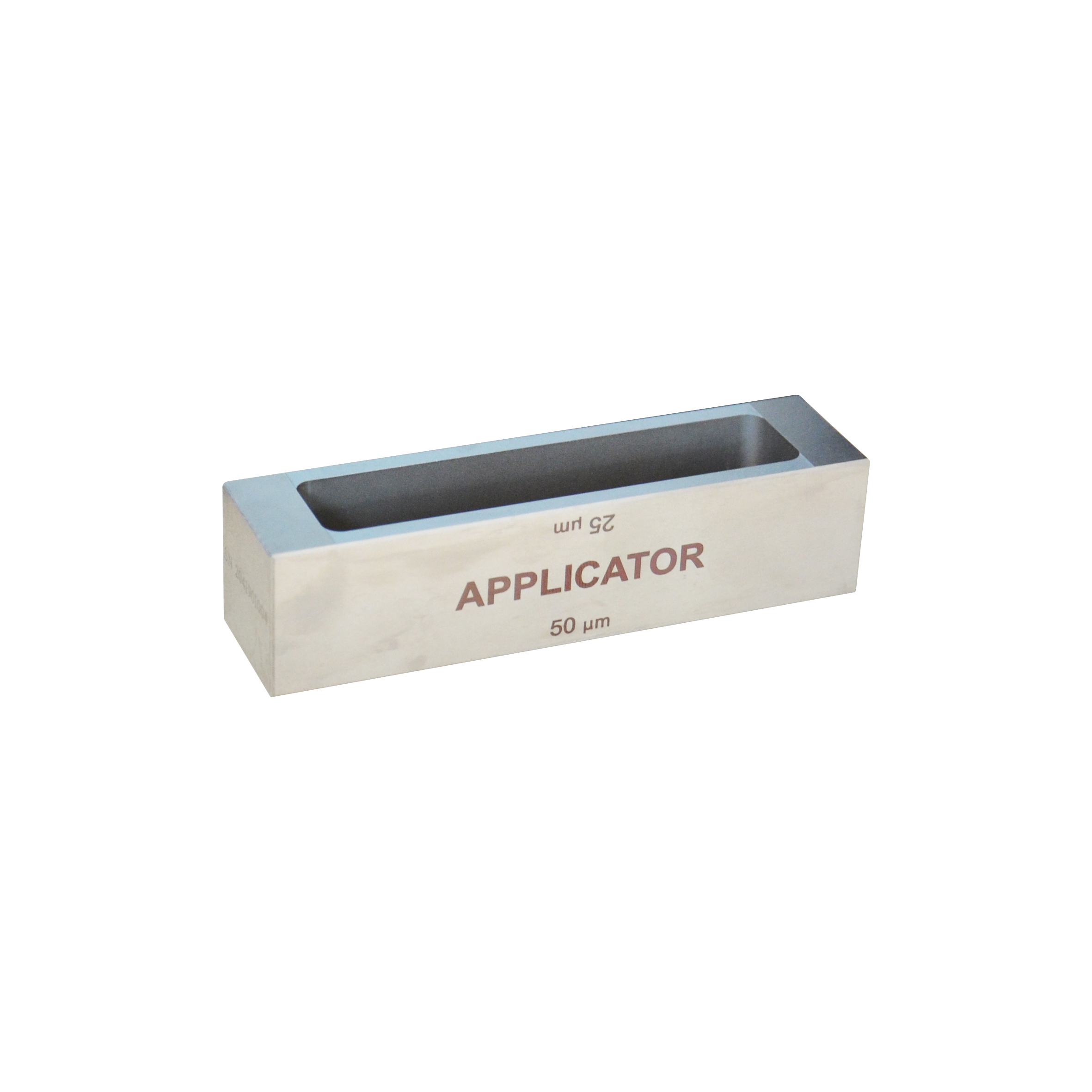

Four-sided precision film maker (4 types of film thickness can be prepared) |
（avaliable） |
|
|
7 |
Frame Preparer |
（avaliable） |
|
