Model

LITH-DYP-150TFZ

Pressure range

0-150T

Piston diameter

Chrome cylinder diameter 250mm(d)

Pressurization process

Program pressurization - program pressure maintenance - timed pressure relief

Compress time

0-999.59 minutes

Pressure conversion

The program automatically converts the pressure on the sample

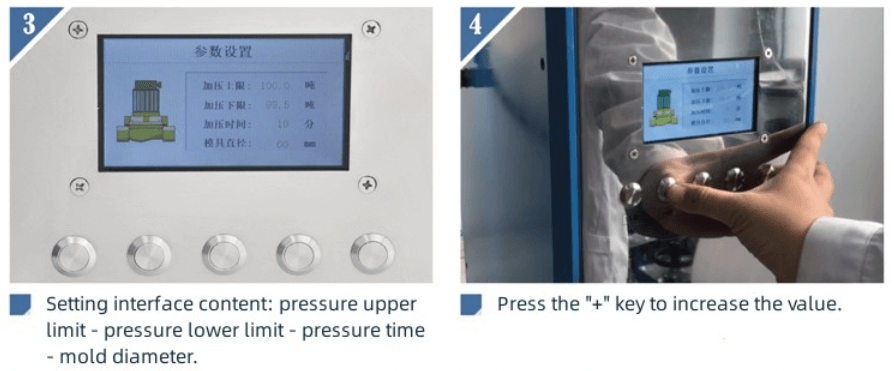

LCD

4.3 inch LCD screen

Equipment protection

Steel protectionwith plexiglass door

Cylinder stroke

50mm (T)

Space size

285*290mm(M*N) can be equipped with heightened column

Dimensions

950*600*1000(L*W*H)

Device power

220V(50Hz/60Hz)

Equipment weight

620kg

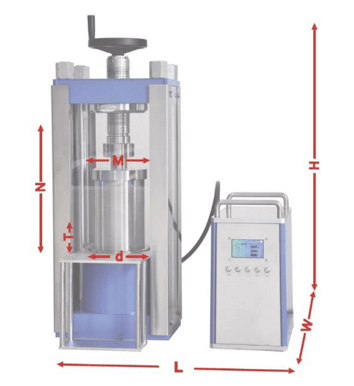

Tablet press size diagram
