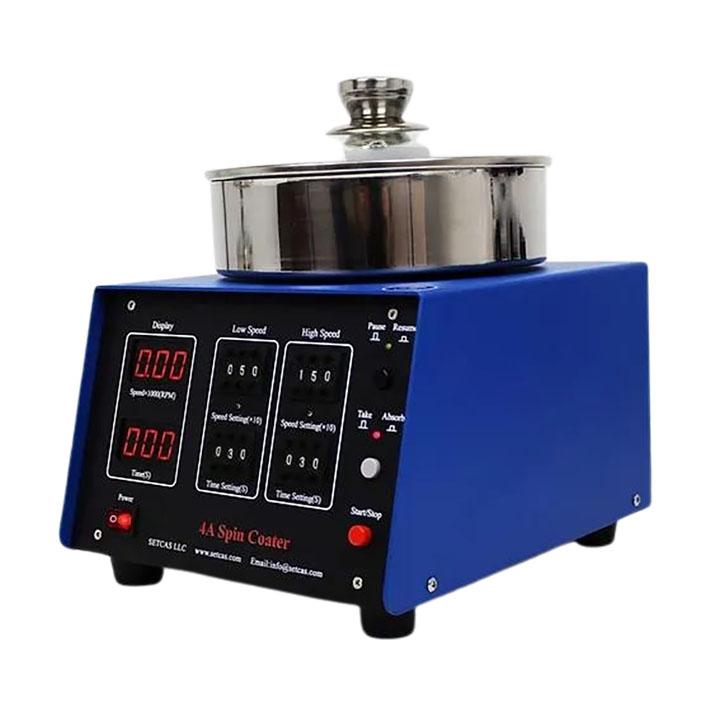

Lab Programmable Benchtop Vacuum Spin Coater with Vacuum Pressure Display Gauge

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna

  • Item no.:

    LITH-4B
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab Programmable Benchtop Vacuum Spin Coater with Vacuum Pressure Display Gauge




Spin Coater


Key Features:

1.  Prevent the process chemicals and solvents contact with the motor.

2.  Support two user-defined program steps for each recipe.

3.  Set speed and time with the keypad, convenient and accurate.

4.  Single button control spin start/ pause/ reset and vacuum pump on/off.


Spin Coater Specifications

Substrate size

5mm to 120mm( 5 inches)

Plate holder type

Specially designed plate holder to prevent glue from entering

Speed range

50rpm to 10000rpm

Spin time

0s to 999s

Dual LED digital display

1.  Speed display 2.  Countdown time display.

Control method

Set speed and time with the keypad

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Operating voltage (Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

200W

Pump power

180W

Dimensions(Spin Coater)

210mm(W)X220mm(D)X160mm(H)

Dimensions (Pump)

185 x 100 x 210 mm (L x W x H)

Weight(Spin Coater)

10KG

Weight(Pump)

4.5KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year








PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
