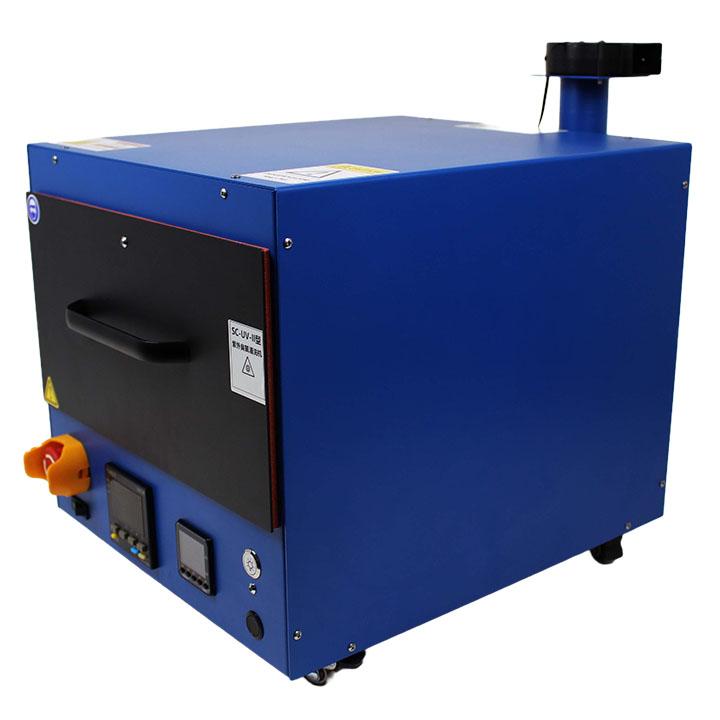

Lab Desktop UV Ozone Cleaning Equipment Optional Heating Functipn for Perovskite Solar Cell Assembly Line

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna

  • Item no.:

    LITH-SC-UV-II
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab Desktop UV Ozone Cleaning Equipment Optional Heating Functipn for Perovskite Solar Cell Assembly Line









Key Features

1. Super large cleaning area, super power, cleaning area up to 300 ×300mm.

2. Drawer-type sample stage, easy and convenient to pick up and place substrates.

3. Dual-band cleaning 185nm and 254nm, ultraviolet and ozone cleaning at the same time, the effect is excellent.

4. Function: Countdown display, accurate timing, optional ozone neutralizer to avoid ozone harm.

5. The interior of the fuselage is made of stainless steel, which is anti-acid, anti-alkali and anti-corrosion.

6. Optional heating system can effectively avoid contaminating the substrate during cleaning. The room temperature can be adjusted to -200 degrees (SC-UV-II+ model).


UV Ozone Cleaner Specifications SC-UV-II SC-UV-II+

Material

Made  of  stainless  steel , which  is  resistant  to  acid  and  alkali, anti-corrosion

Structure

Drawer type sample stage, easier to take and place substrate

Air channel

Reserved intake port, a wide variety of cleaning equipment

Protection

The drawer opening and closing are interlocked with the UV lamp to avoid UV damage

Timer

Button timer, digital countdown, easy to look at it

Operation

The cleaning process can be manually terminated at any time

Accessories

Optional ozone neutralizer to avoid ozone damage

Cleaning wave band

185nm and 254nm

Average light intensity at a distance  of  3-5mm  from the UV lamp



28~32mW/cm²

Light tube

Dual wave low pressure mercury tube ×2

Light tube power

300W

Irradiation area

300mm×300mm

Adjustable irradiation

distance

5~60mm

Timer range

0~99min99s   with automatic countdown function

Heating area

Room temperature–200℃ (suitable for SC-UV-II+model)

Air intake,Air outlet

Air intake: φ8mm, Air outlet: φ50mm

Outer   dimension   of   the device

380mm(W)×430mm(D) ×320mm(H)

Tray outer dimension

300mm(W)×300mm(D) ×5~ 100mm(H)

Product Weight

26 KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year
