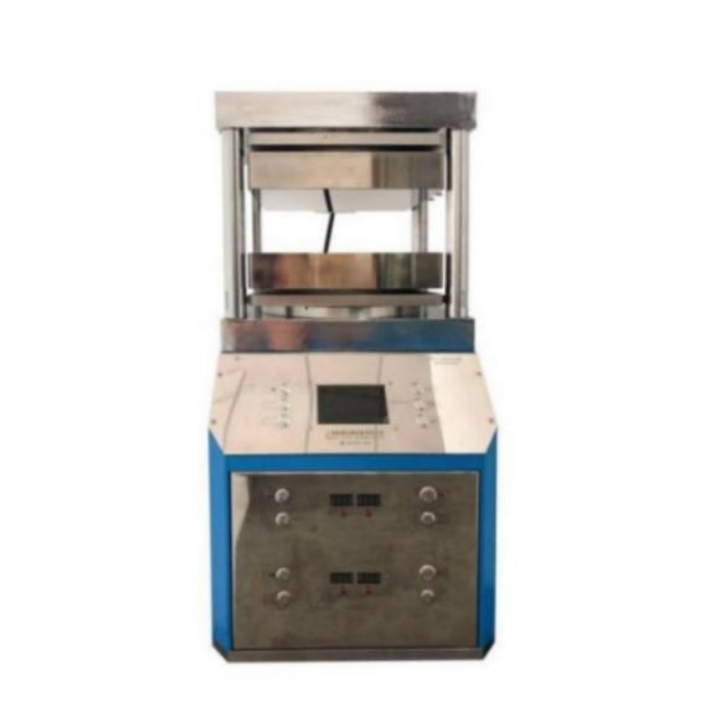

3000W 4000W 8000W Fully Automatic Heat Press with PLC Program Temperature Controller
The new "RYJ-600ZG" series of automatic heat presses are based on the original RYJ-600Z model. The mold heating system is upgraded and improved. The maximum temperature can reach 500 degrees. The equipment is cooled by a stainless steel water-cooled heat insulation board to prevent the mold temperature from being too high. The sealing parts of the main machine cause damage and aging. This machine meets the needs of some users for high temperature testing. It is an ideal supporting equipment for engineering and technical personnel such as universities, research institutes, etc. to perform spectroscopy detection and analysis. It has been widely used in catalysis, rubber, plastics, films, polymers, metallurgical powders, Research and development of new power sources and new materials.
Main Parameter
|
Product name |
RYJ-600ZG1 |
RYJ-600ZG2 |
RYJ-600ZG3 |
RYJ-600ZG4 |
|
Pressure range |
1-25.0T |
1-30.0T |
1-50.0T |
|
|
Precision of pressure adjust |
0.1t |
0.1t |
0.1t |
|
|
Compression process |
fully automatic, program pressure/slow pressure - program pressure holding - program pressure replenishing - timing pressure relief |
|||
|
The holding time |
0-999.59(Min/Second) 999 minutes and 59 seconds |
|||
|
Type of thermostat |
PLC program temperature controller |
|||
|
Temperature control range |
RT-600.0℃,0.1 accuracy |
|||
|
Heating temperature of die |
RT-500.0℃ |
|||
|
Cooling method of die |
Water cooling (water cooler is optional) |
|||
|
Equipment Insulation Mode |
Imported insulation plate+Stainless steel water-cooled heat shield |
|||
|
Equipment structure |
Integrated structure, automatic program pressure control, temperature control |
|||
|
Die type |
Up and down 2 heating plates, polishing surface |
|||
|
Die size |
180*180mm |
200*200mm |
300*300mm |
400*400mm |
|
Overall size |
280*420*620mm |
280*420*620mm |
400*500*750mm |
500*600*780mm |
|
Power supply |
220/3000W |
220/3000W |
220/4000W |
220/8000W |
|
Equipment weight |
About 160kg |
About170kg |
About360kg |
About460kg |
|
Note |
A hot press, water cooling machine optional! Heating die can be customized according to user demand!!! |
|||
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
