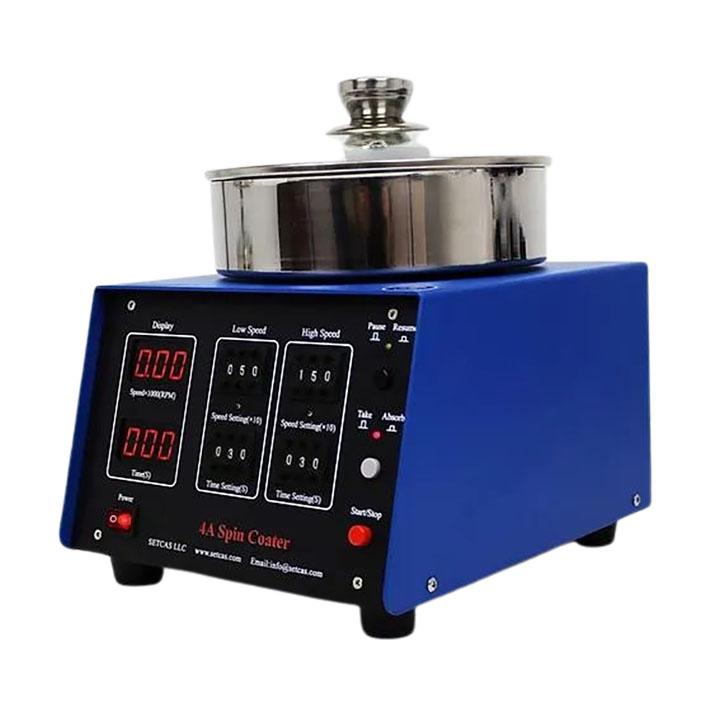

Lab Programmable Benchtop Vacuum Rotary Coater Machine with Vacuum Chunk


Key Features:

1.  Take/Absorb button controls the start and stop of the pump, reduce the pump noise pollution and extend the pump life.

2.  With  countdown  display  function:  accurate  timing,  improve repeatability,  and ensure  the consistency of film thickness in multiple batches.

3.  Take/Absorb button and Start/Stop button interlock, prevent the substrate flying out.

4.  Prevent the process chemicals and solvents contact with the motor.

5.  Support two user-defined program steps for each recipe.

6.  Set speed and time with the keypad, convenient and accurate.

7.  Pause/Resume button control the pause and resume of the spin.

8.  Take/Absorb button controls the start and stop of the pump, reduce the pump.


Spin Coater Specifications

;

Substrate size

5mm to 100mm( 4 inches)

Plate holder type

Specially designed plate holder to prevent glue from entering

Low Speed range

500-8500rpm

High Speed range

1000-8500rpm

Spin time

0-999s

Dual LED digital display

1.  Speed display,2.  Countdown time display.

Control method

Set speed and time with the keypad

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

200W

Pump power

180W

Dimensions(Spin Coater)

210mm(W)X220mm(D)X160mm(H)

Dimensions (Pump)

185 x 100 x 210 mm (L x W x H)

Weight(Spin Coater)

10KG

Weight(Pump)

4.5KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year
