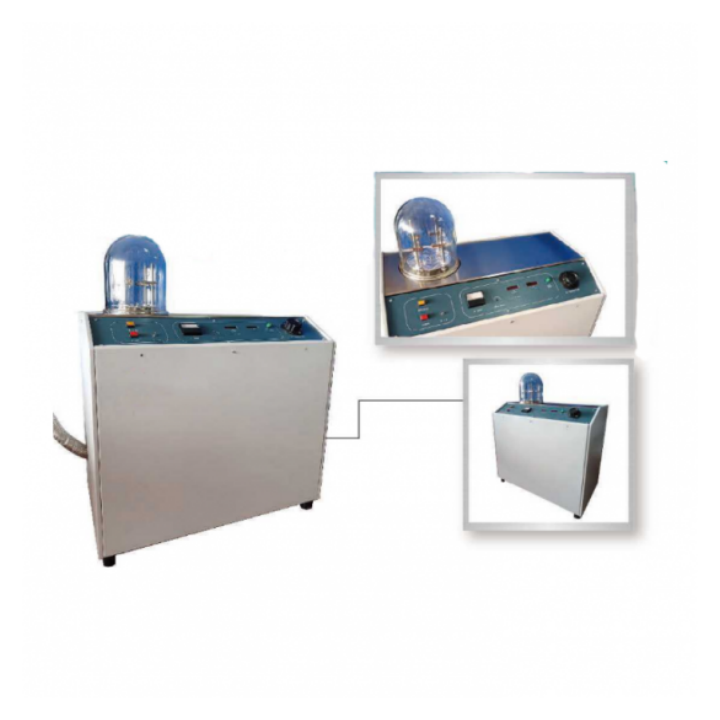

Lab Desktop Vacuum Thermal Evaporation Carbon Coater with Scratch Resistant Quartz Glass Chamber
Model： SD-100AF
Technical specifications
|
Vacuum Pump |
(Oil required) Rotary Vacuum Pump |
|
Rotary Pumping Speed |
50 Hz: 16 m3/h (4.4 L/s) / 60 Hz: 19.2m3/h (5.2 L/s) |
|
Turbo Molecular Pumping Speed |
600 L/S |
|
Vacuum Limit |
5x10-4Pa |
|
Max Evaporation Current |
100A |
|
Working Pressure |
5x10-3Pa |
|
Vacuuming Time |
5 Min ( 2 Pa ) |
|
Vacuum Measure |
Measuring range from atmosphere to 1x10-5 pa |
|
Chamber Size |
(p250*300mm(height) Scratch Resistant Quartz Glass |
|
Evaporation Target Source |
Target material: Carbon Rod ((p5mm) / Target source: Carbon Rod |
|
Operation Method |
Instruction Manual |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
