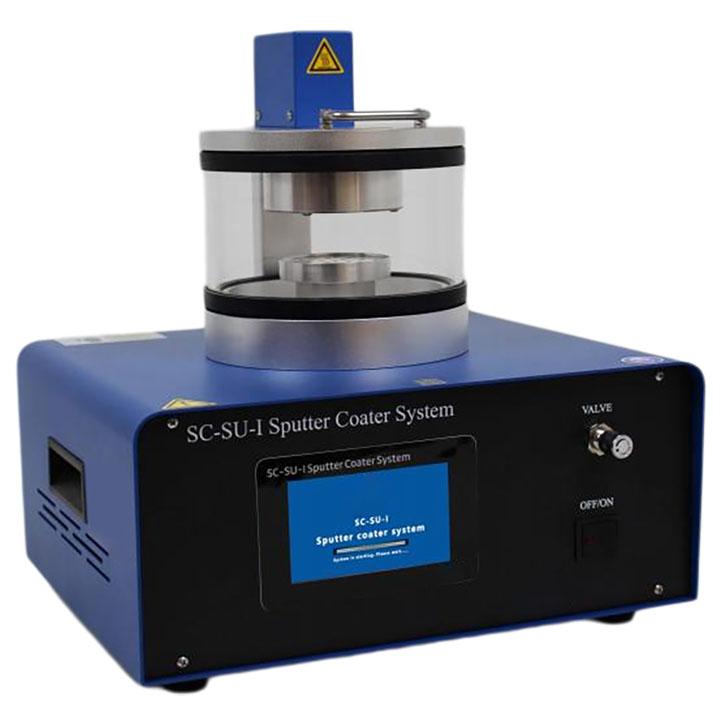

Perovskite Solar Cell Lab Line Vacuum Desktop Magnetron Sputtering Instrument with 150X120mm Quartz Chamber

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna

  • Item no.:

    LITH-SC-SU-I
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Perovskite Solar Cell Lab Line Vacuum Desktop Magnetron Sputtering Instrument with 150X120mm Quartz Chamber






Key Features

1. 4.3-inch full-color touch  screen design, LCD screen real-time vacuum degree display, real-time display of sputtering current, voltage, vacuum degree and other parameters.

2. Suitable for various metal targets, with a diameter of 50mm and a thickness of 1-2mm. It is convenient to replace the target. The formula is saved by default for next operation.

3. It can pass various inert gases, nitrogen, argon, etc., and the air intake volume is adjustable.


Magnetron Sputtering Specifications SC-SU-I

Size of quartz chamber

150X120MM

Sample size

70mm

Sputtering size

50mm

Maximum vacuum

5pa

Gas usable

Inert gases such as hydrogen, nitrogen, etc.

Maximum sputtering speed

8nm/min

Power

200W

Dimension

360(W)X310(D)X150mm(H)

Relative humidity

< 85%

Ambient temperature

0-40

Warranty

1 year
