Lab 500C Temperature Controlled Type Hydraulic Plate Hot Press Using in Perovskite Synthesis





Product introduction

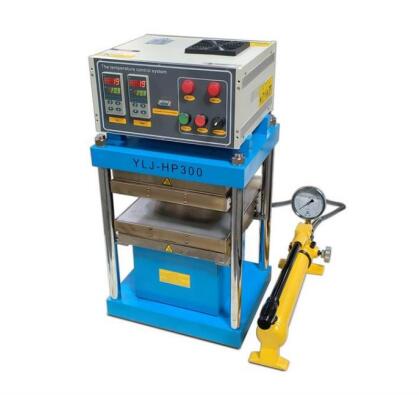

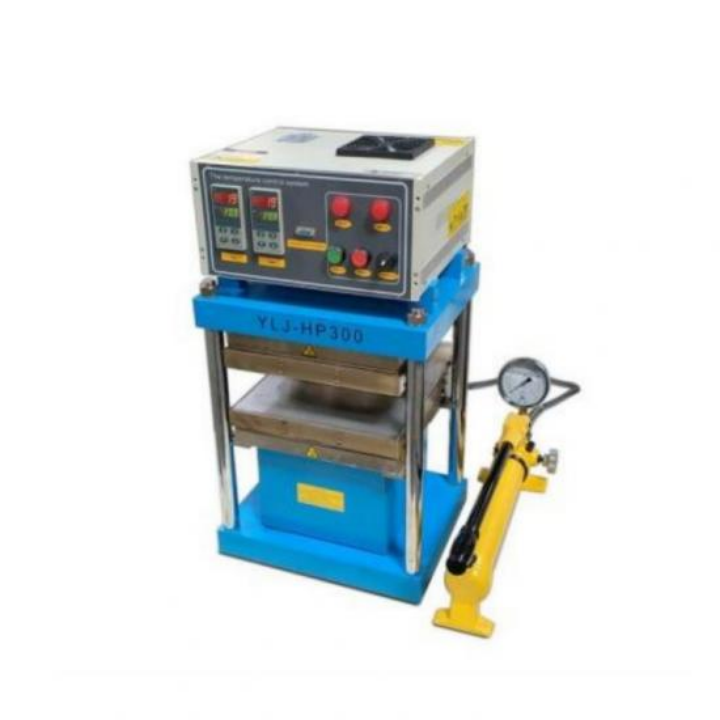

YLJ-HP300 is a CE certified 500℃ temperature controlled type hydraulic plate hot press, which is composed of 30T hydraulic press and two hot plates.Hot pressing plate by two digital display temperature controller to control the temperature, the highest temperature can reach 500℃, the size of hot pressing plate is 30cm*30cm, the material is hard Cr12MoV alloy.The interior of the hot pressing plate is designed with water-cooled sandwich, which can ensure the rapid cooling of the plate;At the same time, a pressure gauge is provided for measuring the pressure of the hot pressing plate.This type of press is ideal for the preparation of polymer and ceramic samples.



 Technical parameters

Equipment name and model

Hot press YLJ-HP300

30T hydraulic press

-Split design for easy maintenance

-Maximum pressure: 30T

-Manual operation

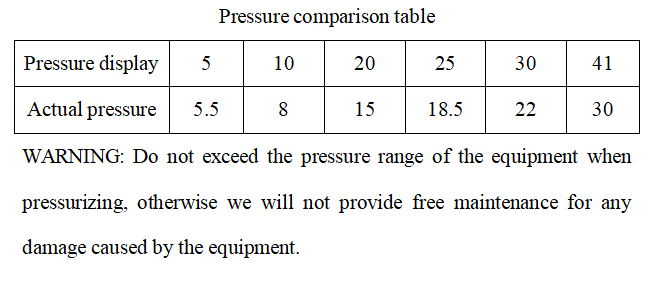

Pressure comparison table



Pressure gauge measurement accuracy

Measurement accuracy: 2.5

Hot pressing plate

Hot pressing area: 300mm*300mm (effective area: 280*280mm)

Material: heat-resistant mold steel

Surface: Grinding machine processing

Cold state, flatness of upper and lower heating plate <0.04mm (within the effective area of 280mm*280mm)

Maximum cylinder lift

80mm

Do not exceed this lift during the experiment

Temperature control system

Upper and lower heating zones

There is a separate temperature control box to control the temperature, with two sets of temperature control

Maximum temperature: 450℃ (continuous), 500℃ (<30min)

Temperature rise rate:0-400℃≤3℃/min, 400-500℃≤2℃/min

Temperature control precision: ±8℃

Heating rate

≤2℃/min

Water-cooled section

Water-cooled upper and lower heating plates

Water cooler: KJ-5300 water cooler (optional)

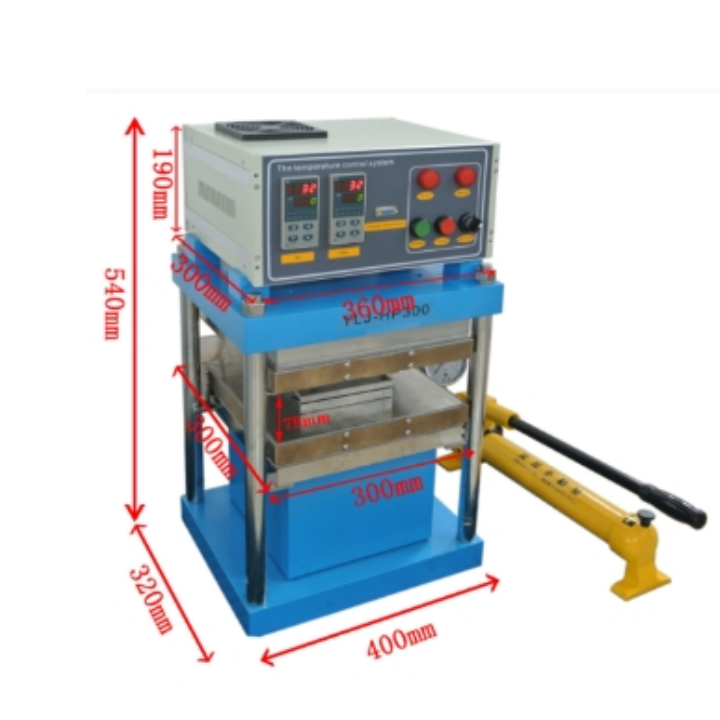

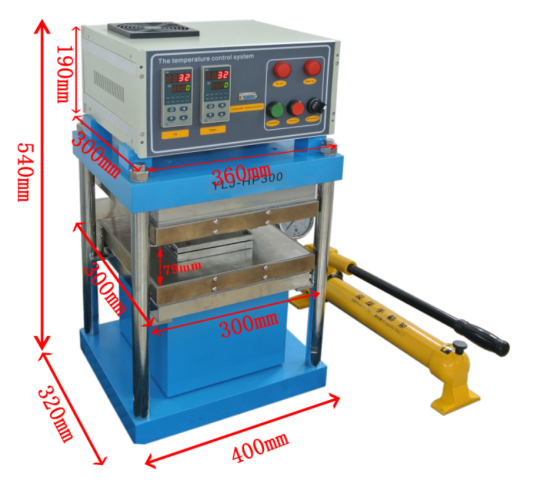

Overall dimensions

External dimensions of temperature control system: 360 (L) x 300 (W) x 190 (H) mm

Press dimensions: 400 (L) x 320 (W) x 540 (H) mm

Thickness of materials that can be put in

≤75mm

Switchboard power supply

220V/50HZ

Wattage

4.5KW

Weight

240KG

Warranty

One year warranty, lifetime technical support

Precautions for use

-No overpressure and over-temperature use, the preset temperature is 500 degrees, the highest preset pressure can not be greater than 24Mpa.

-Please make sure to pass the water cooling before heating to prevent damage to the press, please check the water level of the water cooler before use.

- When the material size is too fine, the gap between the middle extruding bar of the mold and the material extruding wall is 0.005mm, some fine materials will fall into the gap, which will cause damage to the mold. Therefore, it is recommended to sieve the powder (200 mesh and 800 mesh sieve) before pressing the material to remove small and large particles (only take the powder between 200-800 mesh), due to the powder is too fine or the mold is not clean and caused by the damage of the mold, the company does not assume the corresponding responsibility.

-If the machine is not in use for a long time, please run the press to 2-3Mpa (at room temperature) and tighten the screws of the oil drain valve and oil filling valve.



Items

Requirement

Provider

Remark



Electricity supply

Single-phase AC 220V ± 10%, frequency 50/60HZ, power 4.5KW

Client provided

Client provided



Need to prepare a single-phase voltage AC 220V 50HZ, maximum current 10A plug board

Need to prepare a single-phase voltage AC 220V 50HZ, the maximum current 10A plug board







Client provided



Earth (electric connection)

Ground wire with resistance less than 4Ω

Client provided



Water chiller









The equipment needs to be connected to water cooling when working, a water cooler is needed.

Customer options



Packing list


Equipment No.



Destination



Serial number

Accessory name

Specification

Unit

Amount

Remark

1

Hot press machine

YLJ-HP300

Piece

1

Mainframe

2

Temperature control box



Set

1

Installed

3

Polyurethane hose (white transparent)

Outer diameter φ12*inner diameter φ8mm



Set

1



4

Allen wrench

M2.5 M3 M4 M5 M6

Piece

5



5

Instruction manual



Book

1












PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
