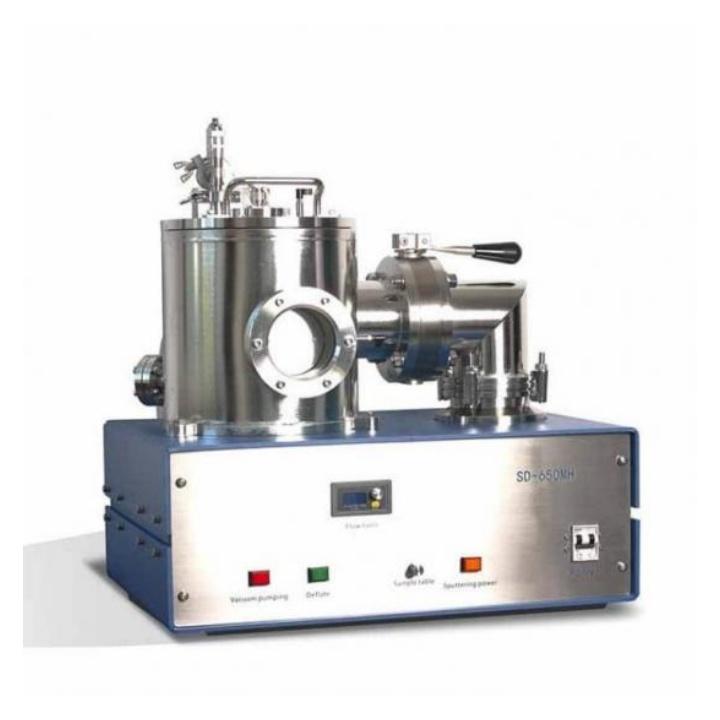

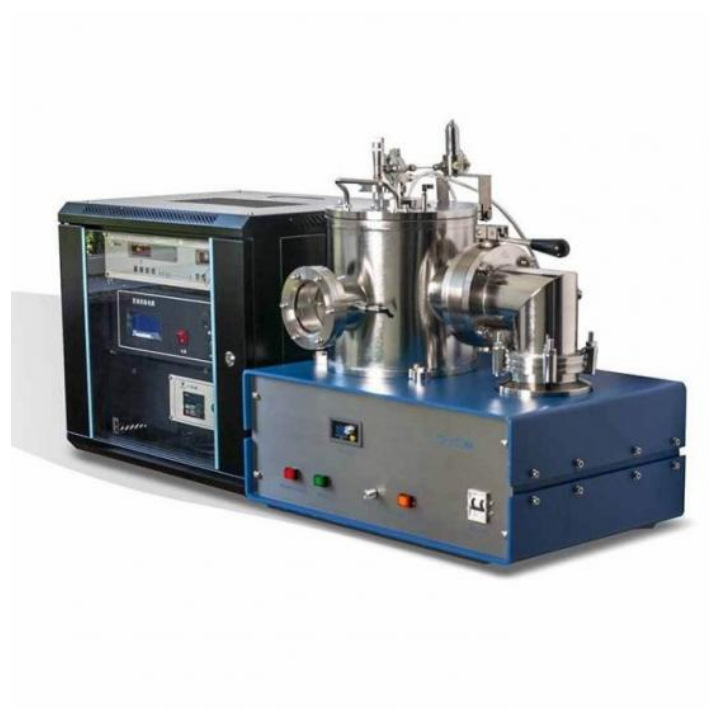

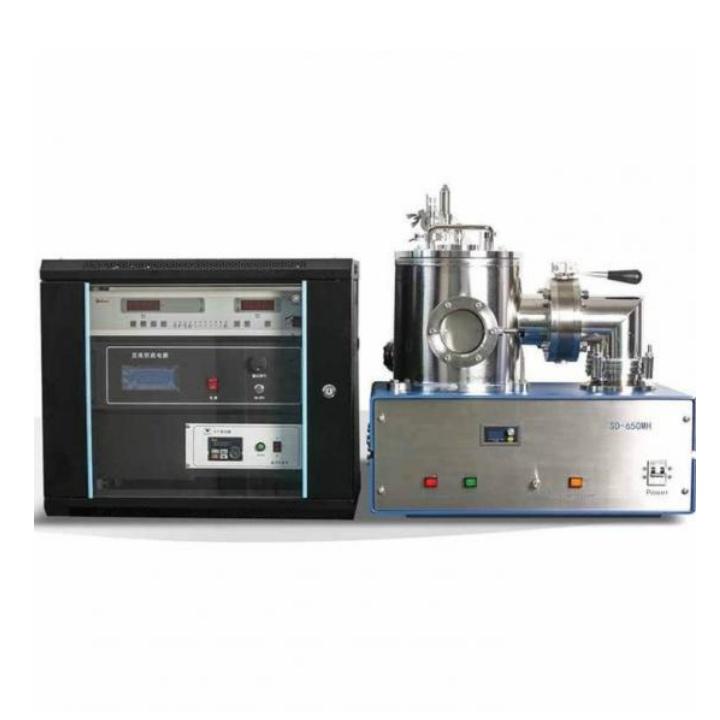

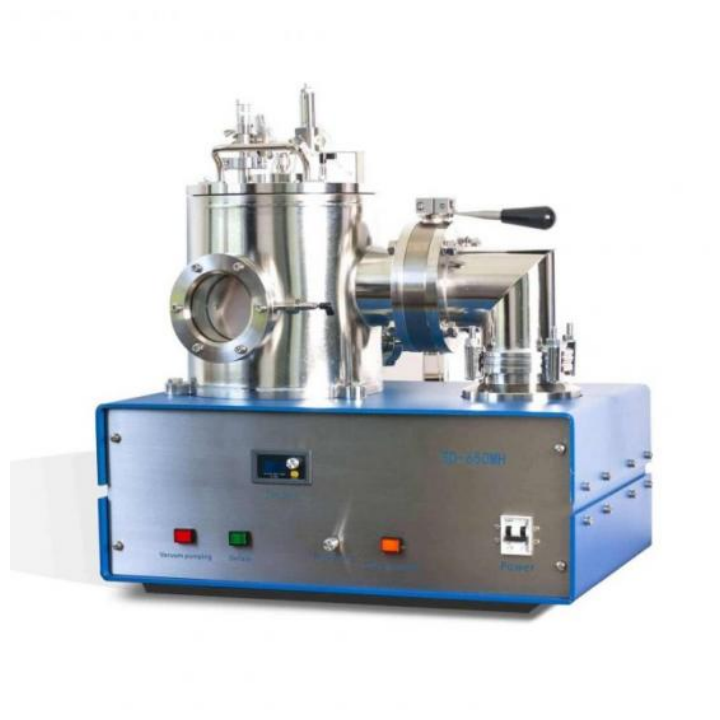

Lab High-efficiency Vacuum Desktop Magnetron Ion Sputtering Coater for Specimen Surface Treatment And Coating
Introduction
High Vacuum Magnetron Ion Sputtering Coater is ideal and designed for materials science and sample preparation. It is widely used for the majority of universities and scientific research institutes of materials science and engineering to coat, for metals, ceramics, semiconductors, insulators or other kinds of membrane material preparation.
High Vacuum Magnetron Ion Sputtering Coater provides the most stable sputtering environment and achieves the basic experimental conditions of magnetron sputtering in a very short period of time. It provides DC / RF two kinds of sputtering power options which allow sputtering conductive or non-conductive substance on specimen and improves physical vapor deposition (PVD) Performance. It is also excellent for surface treatment and coating. It is easy to operate and user friendly as well.

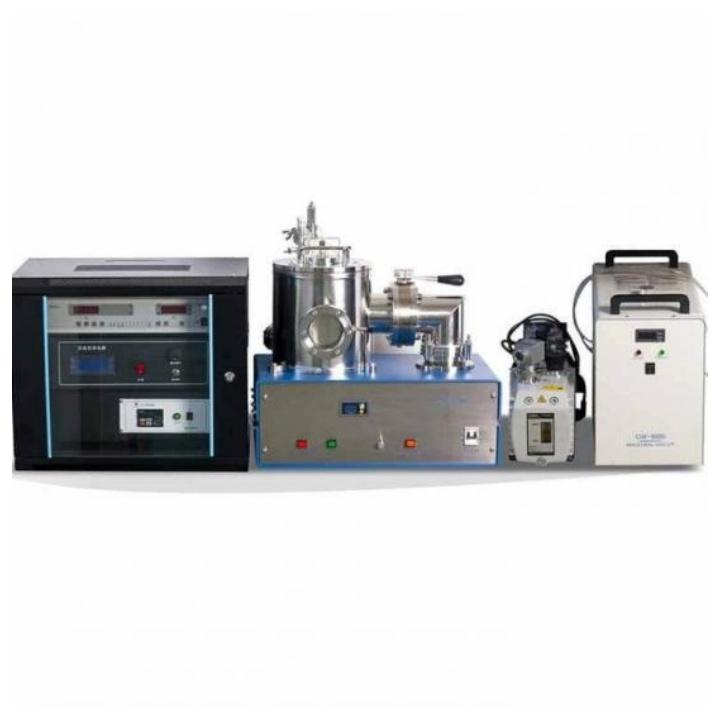

Vacuum pump and Chiller are included.
Parameter
Vacuum pump set |
(Oil required) rotary vacuum pump+(oil free) turbo moleculan pump set |
Rotary pumping speed |
50 Hz : 16 m³/h (4.4 L/s)/ 60 Hz : 19.2m³/h (5.2 L/s) |
Molecular pumping speed |
300 L/s |
Vacuum limit |
5x10-5Pa |
Working pressure |
0.5-5 Pa |
Vacuuming time |
>10 Min(10-3Pa) |
Vacuum measure |
Measuring range from atmosphere to 1*10Pa |
Gas control |
Gas flow controller |
Chamber size |
φ260*200mm (height) metal |
Magnetron target source |
Target size φ 50*3mm(Cu)/target source: weak magnetic substance /materials |
Operation method |
Instruction Manual |
Weight/size |
100kg/610mm length x 420mm wide x 490mm high |
Power supply |
AC 110V 60Hz or AC 220V 50Hz |
Power consumption |
<3000W |
Cooling method |
Air cooling(pump)+ water cooling(sputtering target) |
Warranty |
One year limited warranty with lifetime product support |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
