Lab Large-tonnage Split Type Double Flatbed Hot Press Optional Water Cooler

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna

  • Item no.:

    LITH-RYJ-600F
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

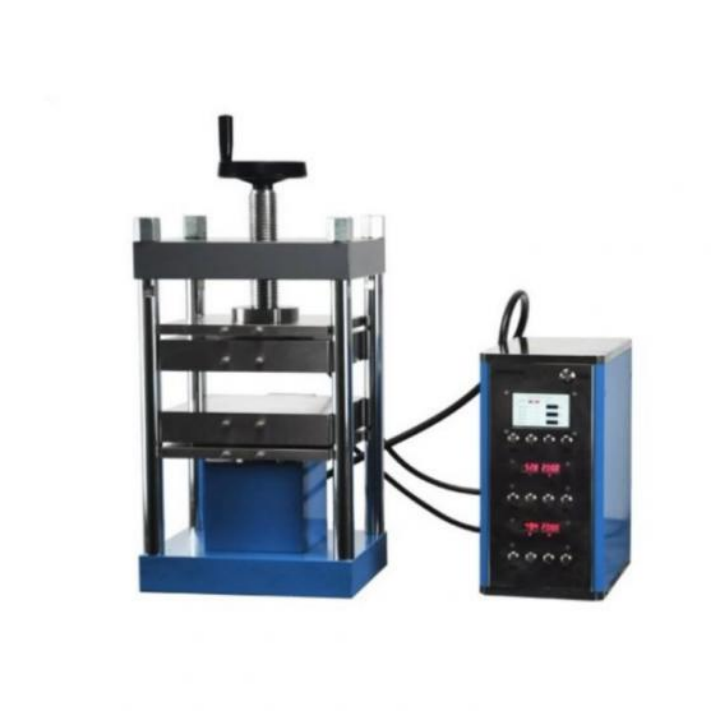

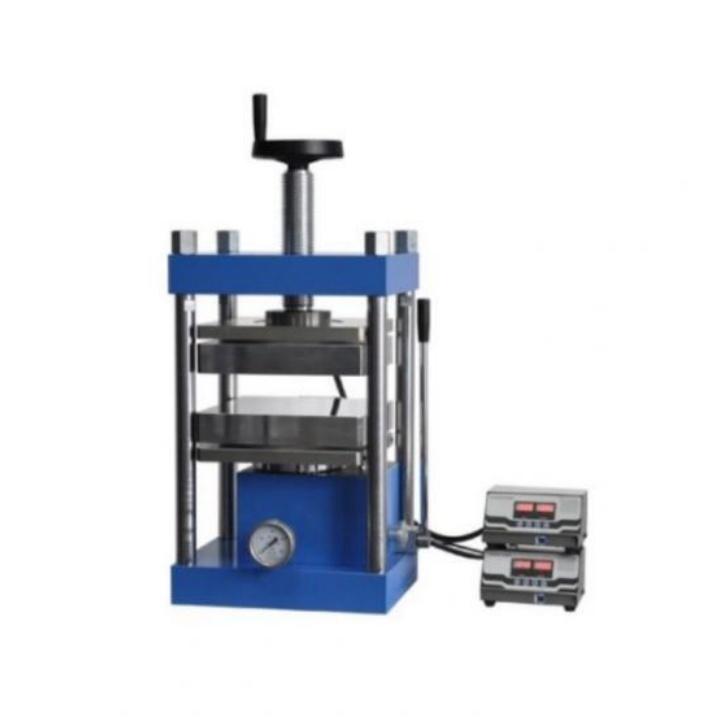

Lab Large-tonnage Split Type Double Flatbed Hot Press Optional Water Cooler





RYJ-600F series double plate heat press is a split type and widened heat press developed by our company based on the original manual heat press based on the market demand. This machine meets the needs of customers who need large-tonnage and large-area sample heating, and can be used for high-temperature and high-pressure compression experiments on powder samples, granular samples, plastic films, rubber products and other samples.


Main Parameter

Device model

RYJ-600F3

RYJ-600F4

RYJ-600DF3

RYJ-600DF4

Pressure range

0-30T(0-31.5Mpa)

0-40T(0-30Mpa)

1-30.0T/0.1t

1-40.0T/0.1t

Pressure conversion

1T-1.05Mpa

1T=0.75Mpa

No conversion required

Pressure gauge type

Pointer pressure gauge

4.3 inch LCD screen display

Pressurized method

Manual pressurization/compensation

Electric pressurization - program pressure maintaining/replenishing pressure - timing pressure relief

Compress time

Manual

0-999.59mins/sec.

Thermostat type

XNNETS PLC Program temperature controller

Thermostat temperature control range

Room temperature-600°C,accuracy 0.1°C

Mold heating temperature

Room temperature-300.0°C(500°C high temperature mold can be customized)

Hot pressing mold size

300*300mm

400*400mm

300*300mm

400*400mm

Power

220V/2500W

220V/5000W

220V/3000W

220V/6000W

Host size

380*350*600mm

500*480*650mm

380*350*600mm

500*480*650mm

Mold cooling method

Water cooling cycle rapid cooling (water cooler optional)

Insulation of equipment

Imported heat insulation board

The whole frame

Split structure

Model Description

Customized products, the above data are for reference only! Various heat presses can be customized according to user needs












PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
