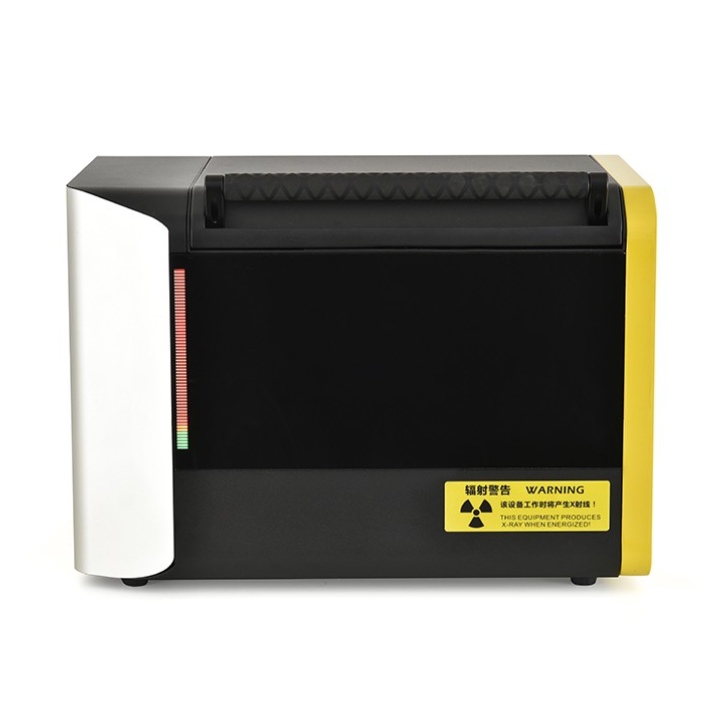

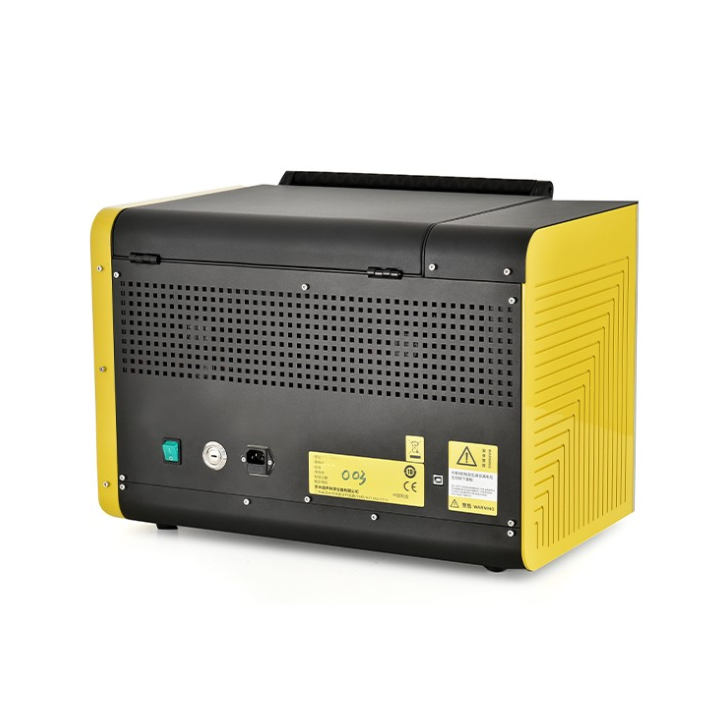

Industrial Benchtop Gold Silver Purity Precious Metal Analyzer
The ScopeX GOLD Precious Metal Analyzer provides rapid and easy determination of Au, Ag, Pt, Pd)and rare precious metals such as Os. Equipped with a variety of collimators and oversized sample chambers, the ScopeX GOLD Precious Metal Analyzer can be used for a wide variety of items and can be used to measure small individual parts on the items. Such as connectors, buttons, inserts and gemstones, etc., are ideal tools for gold and silver purity marking centers, gold refineries, smelters and testing laboratories.
Advantage
Accurate and Reliable Quantitative Method
LITH international XRF analysis software, integration correction curve method, fundamental parameter method (FP) and other analysis methods, the accuracy of the test data performance is fully guaranteed.
Simple and Intuitive
It can accurately depict and analyze the spectrogram, and has the spectrogram contrast function, which can quickly detect the possible change of the material composition and reduce the risk.
Easy Customization
On the basis of the built-in template, it provides a variety of customized options, which can realize the personalized filtering of different materials and elements according to the threshold value and decision string required by the filtering.
Facilitate Management
With hierarchical permission management, operators can log in to the system using different user names and passwords, thus binding test reports to testers. Various test report output formats (Excel, PDF, etc.), and can be customized test report content to meet different test data management requirements.
X-ray tube Aging Automatically
After the X-ray tube has been idle for a period of time, its internal vacuum degree will be reduced. If it is used directly without aging, the X-ray tube will be damaged. LITH is equipped with X-ray tube auto-aging function in the software to protect the equipment and minimize the effort required for device maintenance.
Application scenario
Inspection of incoming materials, process abrasives, recycled materials and finished products of the jewelry factory
Detection of recycled components of precious metals/gold products of banks
Finished product inspection of the gold store and jewelry recycling component inspection
Assessment of pawn value of precious metals and jewelry in pawnshops
Laboratory and college teaching of gold, silver and precious metals testing institutions
Product parameter
Range of element
Na—U
Sample room size
365×300×78mm（L×W×H）
Maximum sample weight
0-2.5KG
Cover open
Automatic
Mainframe size
570×400×400mm
Weight
47KG
X-ray tube
High power side window X-ray tube
Voltage
Up to 50kV
Current
Maximum 1mA
Cooling method
Air cooling
Type
Si-pin/SDD(Optional)
Test environment
Air mode, Vacuum mode(optional), Helium mode (optional)
Sample Observation
5 megapixel HD industrial camera
CPU
is I3-7100 with the same main frequency or above
RAM
DDR4 4 GB memory or above
ROM
1TB HDD or 256GB SSD or above
OS
Windows 10
Temperature conditions
10°C~35°C
Relative humidity
40%-70% No condensation
Power supply
220VAC
Rated power
100W
