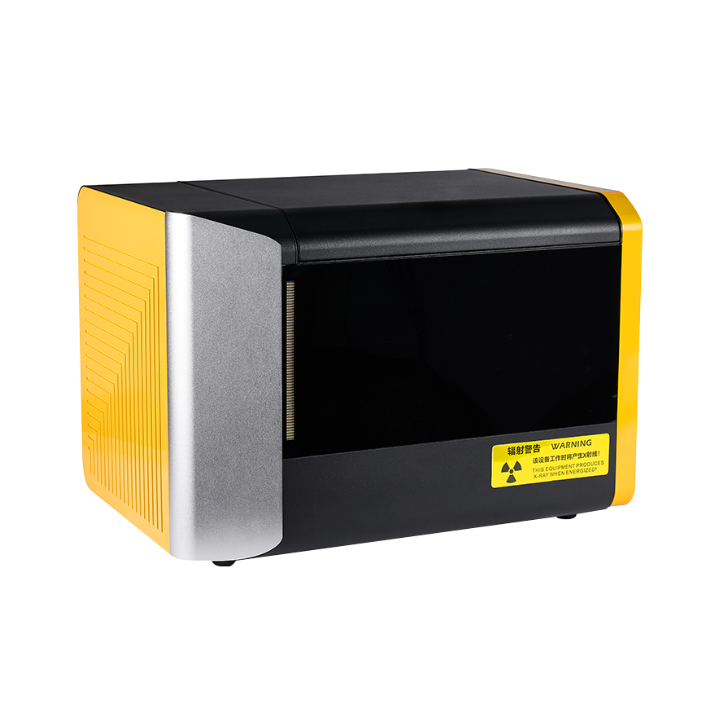

Benchtop ScopeX Metal Plastics XRF Analyzer
The ScopeX desktop XRF analyzer is equipped with highly intelligent software and high-quality hardware, featuring wide linear range, fast analysis, good reproducibility and high accuracy. Sample preparation is simple, sample size and shape can be diverse, and high sample handling capacity can be realized. Suitable for large-scale continuous analysis, process control, product quality inspection and other links, it is an ideal tool for petroleum, coating, precious metals, cement, minerals, metal materials and plastics and other industries.
Advantage
High performance configuration
Low energy X-ray with intelligent vacuum system, Si, P, S, Al, Mg and other light elements have a good excitation effect, XRF technology can be used to analyze the high content of Cr, Ni, Mo and other key elements.
A variety of collimator, filter automatic switch
5mm, 3mm, 1mm, 0.5mm four kinds of collimator, collimator and filter can be automatically switched by the software, save time and effort, through the appropriate combination of collimator and filter can improve the detection accuracy and sensitivity.
Nondestructive testing
Without damaging or affecting the performance of the tested object, the whole test process without any damage.
Peltier refrigeration
Peltier electric refrigeration without liquid nitrogen. Reduce the complexity of the device, and save manpower and equipment maintenance costs.
Data transmission
USB, WIFI, wireless Bluetooth and other methods for data transmission.
User-defined
The file can be in EXCEL, PDF and other formats. Users can customize the test report, including company logo, spectral spectrum and other sample information.
Safety
Fully enclosed metal chassis and leakage protection switch, radiation safety in line with international standards.
Application scenario
Minerals and Mining
Cement and Building Materials
Ceramics, glass and industrial materials
Coal ash, catalyst
Metal material
Petroleum chemical industry
Product parameter
Test object
Solid, liquid, powder
Range of element
Na—U
Sample room size
ScopeX 980CS/ScopeX 980CSR：304×368×78mm（L×W×H）
ScopeX 980/ScopeX 980S：365×300×78mm（L×W×H）
Sample weight range
0-2.5KG

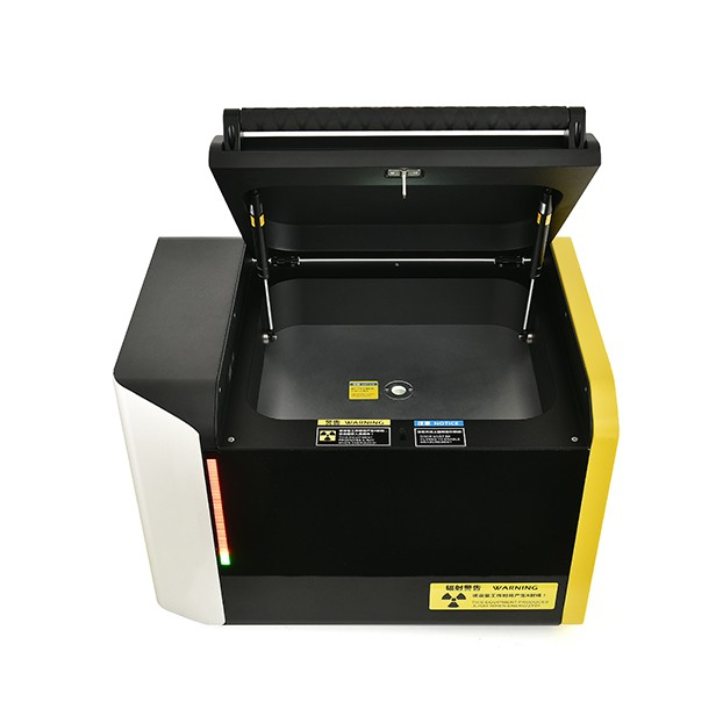

Cover open
Automatic
Mainframe size
570×400×400mm（L×W×H）
Mainframe weight
ScopeX 980CS/ScopeX 980CSR：64KG
ScopeX 980/ScopeX 980S：47KG
X-ray tube
High power side window X-ray tube
Voltage
Up to 50kV
Current
Maximum 1mA
Cooling Method
Air cooling
Detector
SDD
Test environment
Air mode、Helium mode、Vacuum mode
Sampling Method
Hand sampling、Autoinjection
Sample Observation
5 megapixel HD industrial camera
PC(CPU)
CPU is I3-7100 with the same main frequency or above
RAM
DDR4 4 GB memory or above
ROM
1TB HDD or 256GB SSD or above
OS
Windows 10
Temperature conditions
10°C~35°C
Relative humidity
40%-70% （No condensation）
Power supply
220VAC
Rated power
ScopeX 980/ScopeX 980S:100W
ScopeX 980CS/ScopeX980CSR:600W
