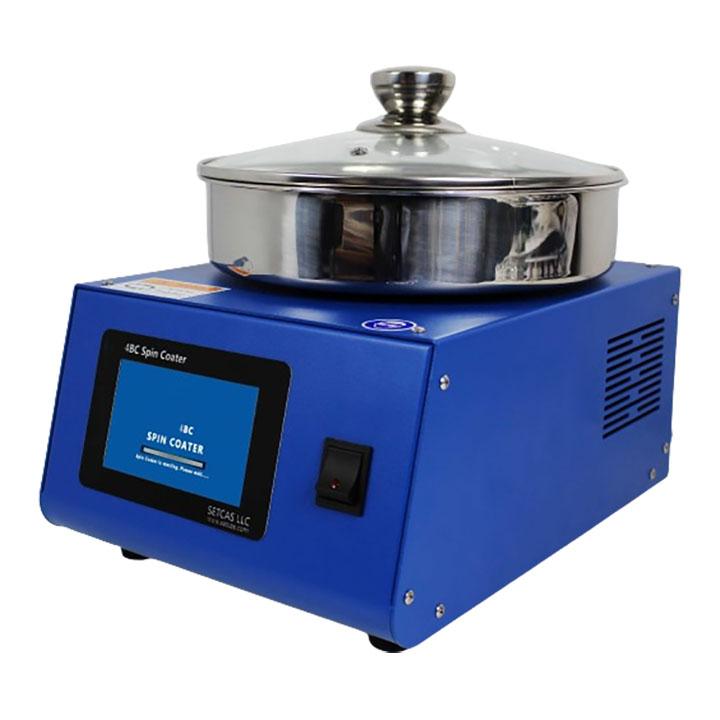

Lab 10000RPM Small Automatic Desktop Vacuum Spin Coater Machine
Key Features：
1. Human machine interface 4.3 inch touch screen.
2. Prevent anti-flying piece protection and alarm.
3. Prevent anti-adhesive protection and alarm .
4. Automatic pick-up alert function.
5. Set data Unlimited group data, each group of 10 speeds
6. Optional disposable pot lining: easy to clean up the waste liquid after coating.
Product parameter
|
Applicable substrate |
5-120mm silicon wafers and other materials (5 inches) |
|
Film speed range |
50-10000RPM |
|
Acceleration range |
10-10000RPM/S, adjustable |
|
Coating time |
The time can be set arbitrarily without limit |
|
Man-machine interface |
4.3 inch color touch screen |
|
Coating cavity (material) |
Stainless steel glue pot |
|
Vacuum cups (material) |
Aluminum alloy (free three sizes of suction cups, size 5-120mm customer choice) |
|
Speed accuracy and stability |
±1RPM |
|
The uniformity of the glue |
Plus or minus 1% |
|
Direction of rotation |
Reversible |
|
Stylus |
BAMBOO Resistance Pen (standard) |
|
Set data |
Unlimited group data, each group of 10 speeds(standard) |
|
Every time |
0-10000 seconds |
|
Store data |
Unlimited data |
|
Gluing machine power supply port |
AC100-250V |
|
Vacuum pump power supply port |
AC220V(standard) AC110V(optional) |
|
Vacuum pump model |
SC-310V oil-free vacuum pump |
|
Vacuum pump pumping speed |
≥50L/min |
|
Vacuum pump noise |
≤55DB |
|
Vacuum pump minimum vacuum |
-85KPA |
|
Glue machine power |
200W |
|
Vacuum pump power |
180W |
|
Dimensions(Spin Coater) |
210mm(W)X220mm(D)X160mm(H) |
|
Dimensions(Vacuum pump) |
185mm(L)*100mm(W)*210mm(H) |
|
Homogenizer weight |
10KG |
|
Pump weight |
4.5 KG |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0 to 40 ℃ |
|
Warranty period |
1 year |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
