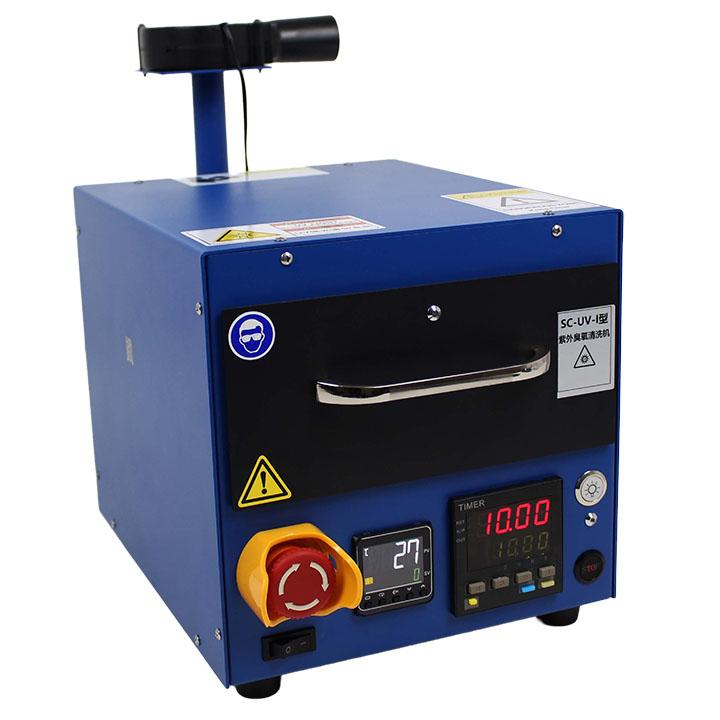

Lab Stainless Steel Anti-corrosion 200C UV-Ozone Cleaner Equipment
Key Features：
1. Drawer type sample stage, easier to take and place substrate.
2. Dual-band, wavelength: 185nm, 254nm, can pass various gases to enhance cleaning effect.
3. Plate holder size: 160mm (W) × 200mm (D) × 5~30mm (H)
4. Function: Countdown display, accurate timing, optional ozone neutralizer to avoid ozone harm.
5. The SC-UV-I model does not come with heating and temperature control function as standard, and the heating and temperature control function is optional (SC-UV-I+ model).
6. The inside of the fuselage is made of stainless steel, which is anti-acid, anti-alkali and anti-corrosion.
UV Ozone Cleaner Specifications （SC-UV-I 、SC-UV-I+）
|
Material |
Made of stainless steel ， which is resistant to acid and alkali, anti-corrosion |
|
Structure |
Drawer type sample stage, easier to take and place substrate |
|
Air channel |
Reserved intake port, a wide variety of cleaning equipment |
|
Protection |
The drawer opening and closing are interlocked with the UV lamp to avoid UV damage |
|
Timer |
Button timer, digital countdown, easy to look at it |
|
Operation |
The cleaning process can be manually terminated at any time |
|
Accessories |
Optional ozone neutralizer to avoid ozone damage |
|
Cleaning wave band |
185nm and 254nm |
|
Average light intensity at a distance of 3-5mm from the UV lamp |
28~32mW/cm² |
|
Light tube |
Dual wave low pressure mercury tube |
|
Light tube power |
150W |
|
Irradiation area |
150mm×200mm |
|
Adjustable irradiation distance |
5~30mm |
|
Timer range |
0~99min99s with automatic countdown function |
|
Heating area (SC-UV-I+model only) |
Room temperature–200℃ (suitable for SC-UV-I+model) |
|
Air intake, Aire outlet |
Air intake： φ8mm， Air outlet： φ25mm |
|
Outer dimension of the device |
250mm（W）×300mm（D）×260mm（H） |
|
Tray outer dimension |
160mm（W）×200mm（D）×5~30mm（H） |
|
Product Weight |
8KG |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty |
1 year |
