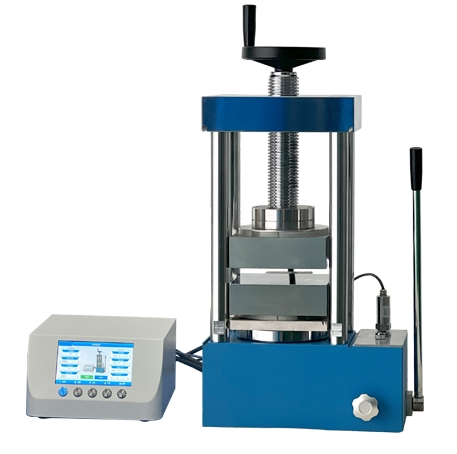

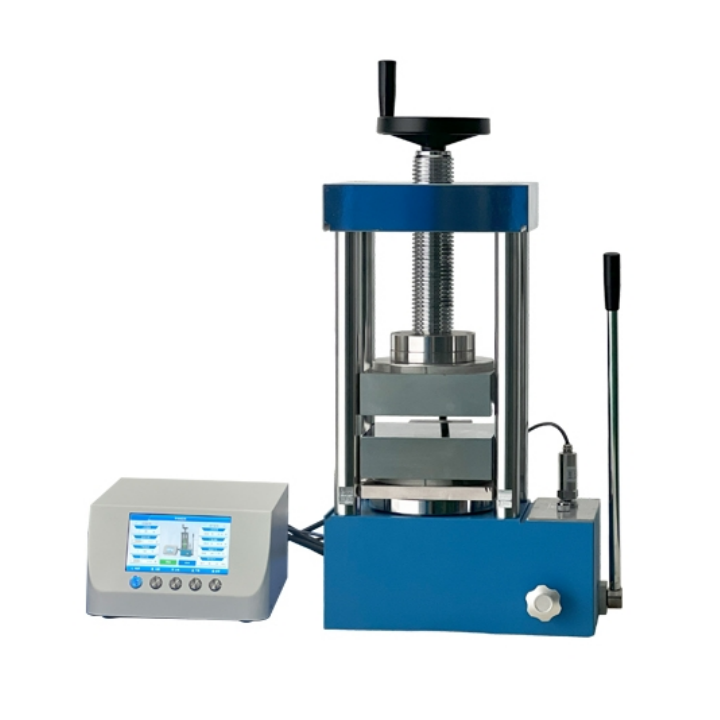

300C 500C Lab Double Plate Manual Hot Press

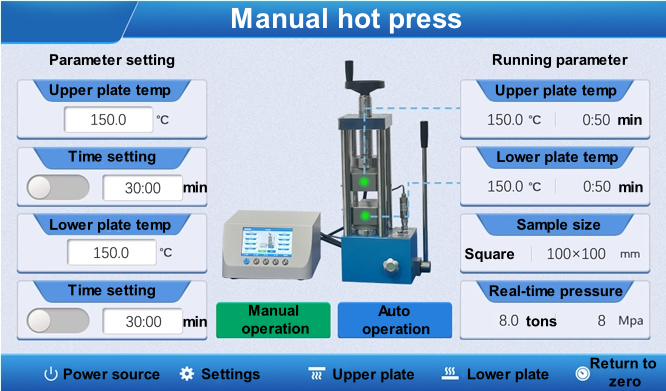

Operation interface (Manual mode)

a. Manual interface: The upper and lower plate heating temperature and constant temperature time can be set separately on this interface.

b. Reset button: Calibrates the pressure to zero.

c. Upper plate button: Heat the upper heating plate.

d. Lower plate button: heat the lower heating plate.

e. Timing switch: The timing function can be turned on and off.

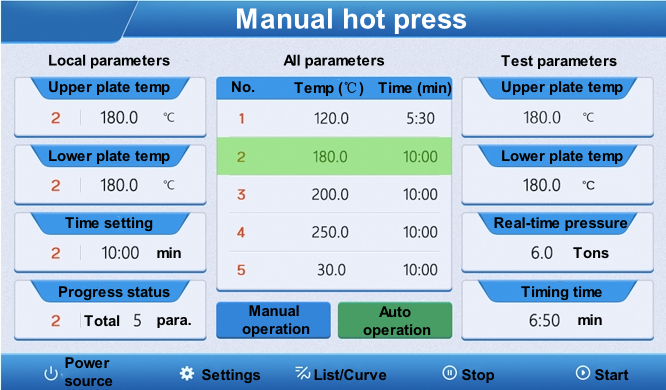

Operation interface (Automatic mode)

a. Start button: You can press the multi-stage heating program to heat up.

b. Stop button: During the heating process, you can stop the heating process.

c. List curve: You can switch the current display state, list and graph.

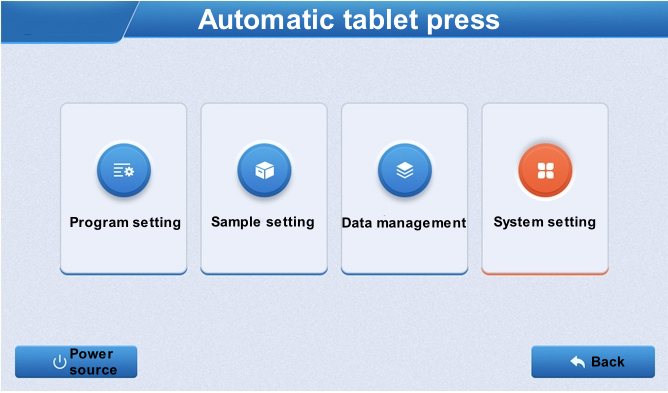

Setting interface

a. Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

b. Program Settings: you can set up multiple pressure procedures and pressure holding time.

c. Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

d. Data management: Calls can be made to modify previously saved data records.

e. System Settings: Administrators can set various parameters, enter the password "666"

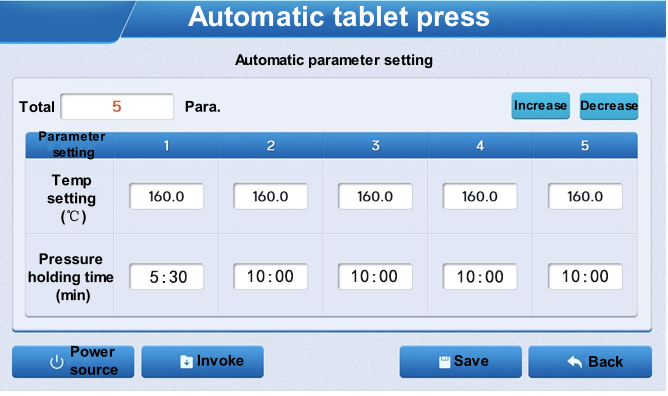

Setting interface

a. Multi-segment program setting, you can set the heating program within 5 segments.

b. Invoke button, you can invoke the set parameters, to the automatic operation interface, heating.

c. Save button, you can save the set parameters to the database, easy to call later.

d. Back button to return to the setting screen.

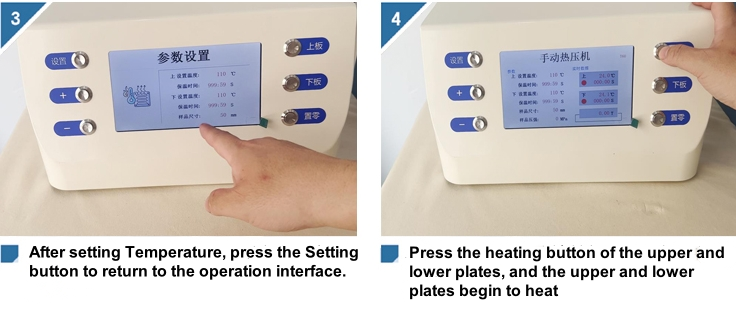

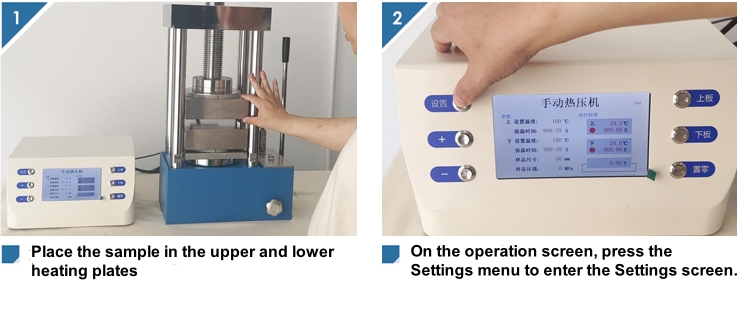

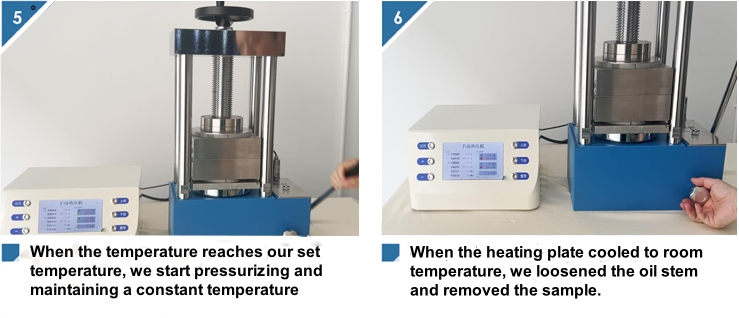

Operation procedure

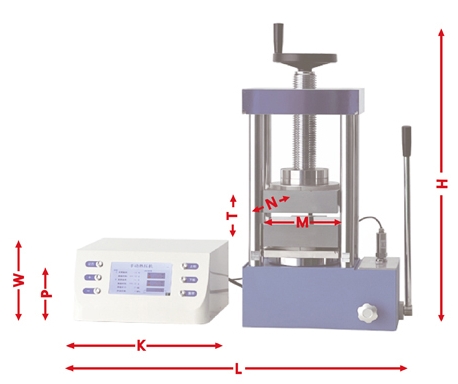

Technical parameter
