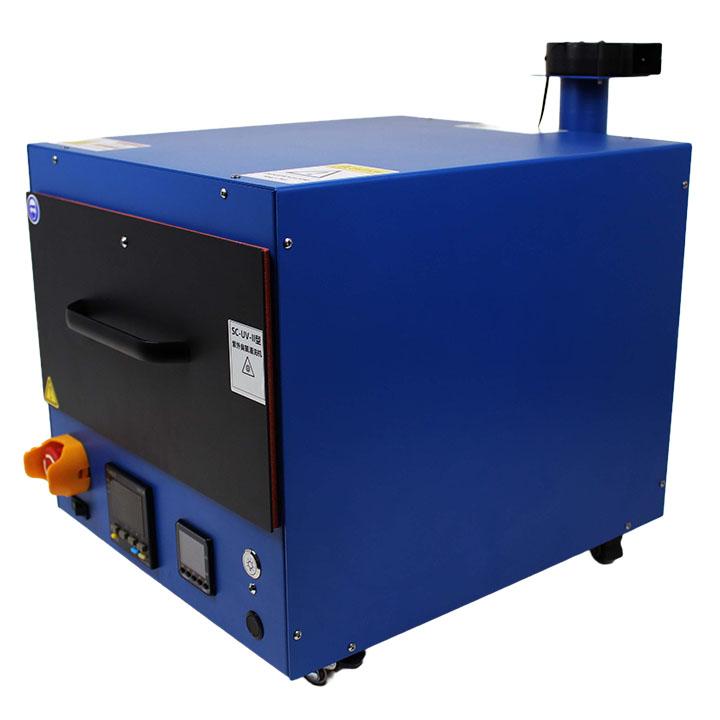

200C High Precision Drawer-type Sample Stage UV-Ozone Cleaner Optional Ozone Neutralizer
Key Features：
1. Super large cleaning area, super power, cleaning area up to 300 ×300mm.
2. Drawer-type sample stage, easy and convenient to pick up and place substrates.
3. Dual-band cleaning 185nm and 254nm, ultraviolet and ozone cleaning at the same time, the effect is excellent.
4. Function: Countdown display, accurate timing, optional ozone neutralizer to avoid ozone harm.
5. The interior of the fuselage is made of stainless steel, which is anti-acid, anti-alkali and anti-corrosion.
6. Optional heating system can effectively avoid contaminating the substrate during cleaning. The room temperature can be adjusted to -200 degrees (SC-UV-II+ model).
UV Ozone Cleaner Specifications （SC-UV-II 、SC-UV-II+）
|
Material |
Made of stainless steel ， which is resistant to acid and alkali, anti-corrosion |
|
Structure |
Drawer type sample stage, easier to take and place substrate |
|
Air channel |
Reserved intake port, a wide variety of cleaning equipment |
|
Protection |
The drawer opening and closing are interlocked with the UV lamp to avoid UV damage |
|
Timer |
Button timer, digital countdown, easy to look at it |
|
Operation |
The cleaning process can be manually terminated at any time |
|
Accessories |
Optional ozone neutralizer to avoid ozone damage |
|
Cleaning wave band |
185nm and 254nm |
|
Average light intensity at a distance of 3-5mm from the UV lamp |
28~32mW/cm² |
|
Light tube |
Dual wave low pressure mercury tube ×2 |
|
Light tube power |
300W |
|
Irradiation area |
300mm×300mm |
|
Adjustable irradiation distance |
5~60mm |
|
Timer range |
0~99min99s with automatic countdown function |
|
Heating area |
Room temperature–200℃ (suitable for SC-UV-II+model) |
|
Air intake,Air outlet |
Air intake： φ8mm， Air outlet： φ50mm |
|
Outer dimension of the device |
380mm(W)×430mm(D) ×320mm(H) |
|
Tray outer dimension |
300mm(W)×300mm(D) ×5~ 100mm(H) |
|
Product Weight |
26 KG |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty |
1 year |
