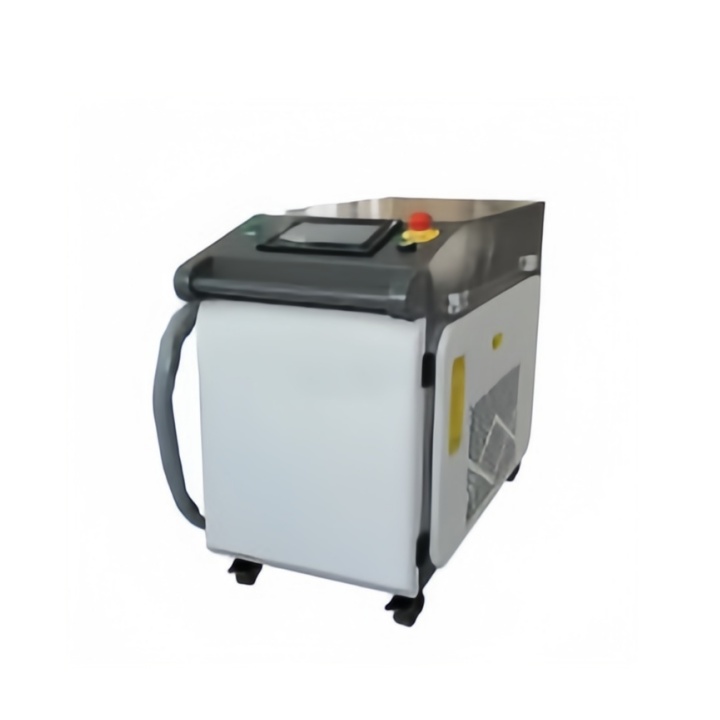

Single Optical Fiber Series Laser Cleaning Machine with 3000W Laser Power
Single optical fiber series cleaning machine configuration:
|
Configuration and model |
CF3000W |
Remark |
|
Laser system |
Configuration and model |
Customized by TMAXCN |
|
Transmission mechanism |
Laser system |
Customized by TMAXCN |
|
Cleaning head |
Transmission mechanism |
TMAXCN |
|
Control mode |
Cleaning head |
TMAXCN |
|
Gas protection |
Control mode |
TMAXCN |
|
Refrigeration system |
Gas protection |
TMAXCN |
|
Cabinet |
Refrigeration system |
TMAXCN |
|
Gift |
One pair of protective glasses and 5 protective lenses are included |
|
Technical parameters:
|
Model number |
CF3000W |
|
Maximum laser power |
3000W |
|
Output center wavelength |
1070±10 |
|
Cleaning method |
Continuous |
|
Cleaning width |
≤250mm |
|
Cleaning speed |
1.5 ㎡/min |
|
Fiber length |
10m |
|
Cleaning speed |
6000mm/s |
|
Operating voltage |
380V/20A |
|
Operating temperature |
0-40℃ |
Fiber laser life of about 100,000 hours.
Warranty and after-sales service: the whole machine warranty for one year, laser warranty for two years;
Service response time within 24 hours.
Ambient temperature: 0℃ to 40℃ recommended.
Laser can not condensation;
Keep cooling water clean;
Reliable grounding.
