Lab High Temperature PLC Ultrasonic Spray Pyrolysis Coater Equipment Widely Used in The Preparation of Perovskite Solar Cells
|
|
|
|
|
|
|
|
Product introduction

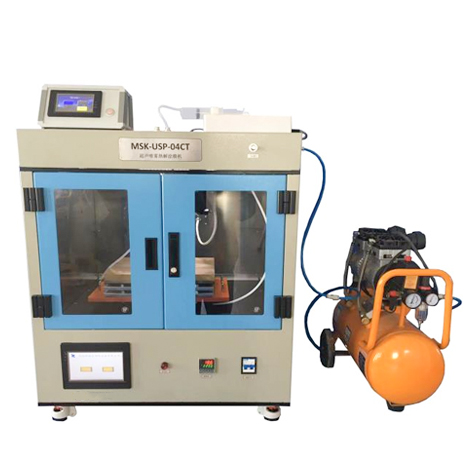

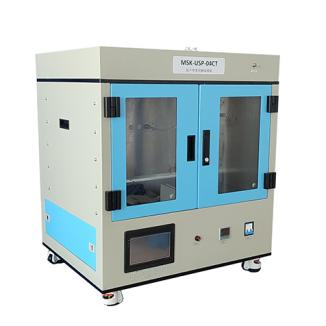

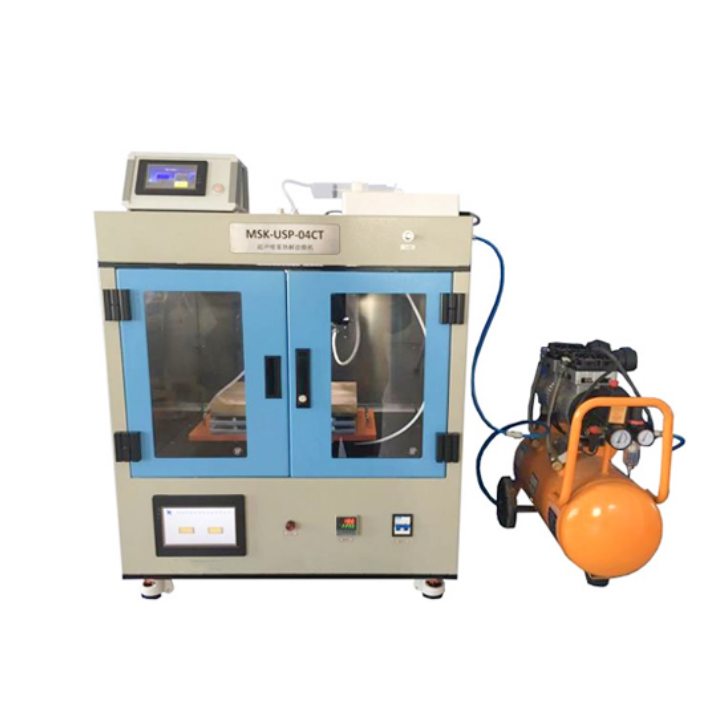

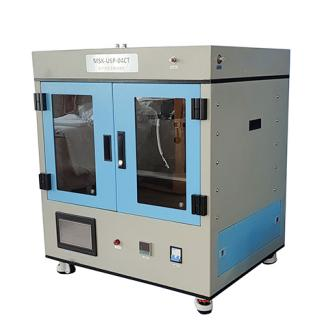

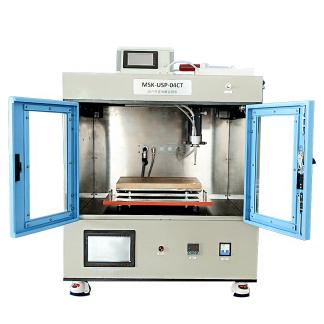

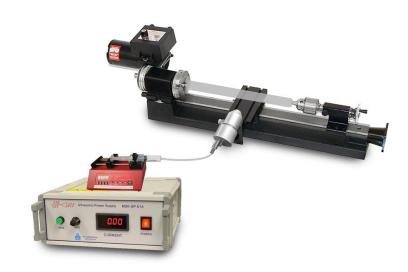

MSK-USP-04CT ultrasonic spray pyrolysis coating machine, the spray machine uses a stepper motor and a microprocessor to control the positive displacement pump, so as to ensure that the infusion device accurately transport solvent, to ensure the continuity of the ultrasonic spray process. The thin micro-nano coating is prepared by an ultrasonic atomizer, and the atomizer is controlled by a stepper motor to move in the X and Y axis directions, and the moving speed can be adjusted within a certain range to ensure the uniformity of the coating on the substrate surface after spraying. MSK-USP-04CT ultrasonic spray pyrolysis coating machine, the glue spraying machine through a heating platform to control the temperature of the substrate, so as to accelerate the drying speed of the film, the heating temperature of the heating platform can be as high as 300℃, in this temperature range can basically meet the needs of most experiments.
Main feature
Spray pyrolysis film production method is to spray the solution to the heated substrate after atomization, and then obtain the desired material structure on the substrate. This material preparation method is particularly suitable for depositing oxides and has a long history in the application of preparing transparent electrodes. This method is now widely used in the preparation of perovskite solar cells.
Technical parameter
|
Product name |
MSK-USP-04CT ultrasonic spray pyrolysis coating machine |
|
|
Product model |
MSK-USP-04CT |
|
|
Product characteristics |
1.PLC program control, touch screen operation is simple. 2. Adopt synchronous pulley connecting linear guide rail structure, high speed and low noise. 3. Sheet metal frame structure, beautiful appearance. 4. Different nozzles can be replaced, and the height can be adjusted to achieve the best effect of atomizing surface. 5. The nozzle is equipped with pneumatic assistance, which can effectively control the deposition of atomized solution particles in the specified area. |
|
|
Installation condition |
1. Temperature and humidity: 10-85%RH (at 25℃ no condensation) Temperature: 5-45℃. 2. There is no strong source and corrosive gas around the equipment, and the surrounding space is not less than 200mm. 3. Water source: No demand 4. Power supply: single-phase: AC220V 50Hz national standard three-pole socket 16A must be well grounded 5. Air source: compressed gas (air compressor) > 0.4Mpa 6. Workbench: Recommended size: 1000x800x550mm, bearing 150Kg or more solid platform 7. Ventilation device: The device needs to be connected to the exhaust pipeline |
|
|
Main parameter |
1. Power port: AC220V 50Hz 16A |
|
|
2. Total power of the main engine: 2.8KW (excluding air compressor) |
||
|
3.X-axis travel: 1-300mm |
||
|
4. Y-axis travel: 1-220mm |
||
|
5. X-axis speed range: Manual operation control: 10-300mm/s Automatic operation control: 10-600mm/s |
||
|
6. Y-axis speed range: Manual operation control: 10-300mm/s Automatic operation control: 10-600mm/s |
||
|
7. Layer spacing: 1-100mm |
||
|
8. Z-axis manual maximum adjustment: 90mm |
||
|
9. Atomizing nozzle: CSA40-1 Mushroom head: Wider spray diameter -40mm 1 pc CSA40-2 Cylindrical tip: Narrower spray diameter -20mm 1 pc |
||
|
10. Ultrasonic nozzle frequency: 40KHz±10% : |
||
|
11. Maximum ultrasonic power: 200W |
||
|
12. Particle size: 10-20um |
||
|
13. Flow size: 0.6pl-4ml/min |
||
|
14. Viscosity: ≤100cps |
||
|
15. Solid content: ≤10% |
||
|
16. Exhaust outlet: Φ75mm |
||
|
17. Host operation control mode: 7 inch touch screen +AT intelligent temperature control meter |
||
|
18. Cast copper heating plate surface size: 350×240mm 19. Heating range: room temperature -300 ℃ 20. Heating power: 2.5KW |
|
|
|
21. Injection pump dimensions: 250×65×50 mm 22. Liquid injection speed: 0.001-20 mm/min 23. Fine tuning speed: 0.001-10 mm/min 24. Syringe diameter: 0.04-30mm 25. Standard syringe volume: 20ml 26. Stroke setting range: 0.01-90mm 27. Operation control mode: 4.3 inch touch screen independent setting (and host linkage operation) 28. Pump power: ≤50W 29. Pump power supply port: DC24V (standard "power adapter" IN:AC100-240V 50/60Hz OUT: DC24V 3.75A) |
|
|
|

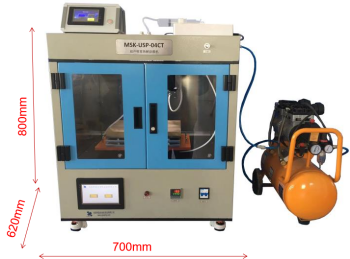

30. Product Specifications: Size: 700×620×800mm Total weight: 120Kg |
|
|
|
Note: 1. The power supply of the equipment is the domestic standard AC220V 50Hz power supply, the actual power supply is subject to the label parameters at the back of the product. 2. The injection pump supplies power to an independent power adapter, sets parameters independently, and starts with the host. |
||
