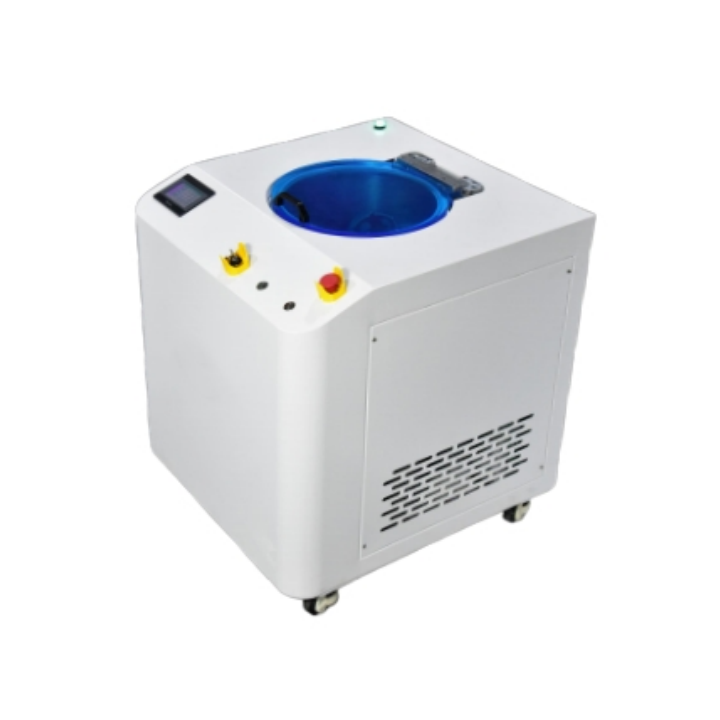

Lab 350ML High Speed Vacuum Stirring Defoaming Machine Optional Non-Vacuum
Product characteristics
It can evenly stir a variety of materials in a short time, including high-viscosity materials, liquids, and even nanoscale powder materials, and can also stir materials with large mixing ratios or specific gravity differences. Mixing and defoaming at the same time with super strength and high speed.
Product application
Application field
|
LED package/display |
Adhesive |
Silicone rubber |
|
|
Polymer material |
Argentol |
Epoxy resin |
Medicine |
|
Printing ink |
Conductive adhesive |
LCD |
Subject |
Product performance
l Vacuum type, high configuration, experimental type, non-contact mixing
l Using German planetary stirring technology.
l At the same time of rotation/revolution, with a high-efficiency vacuum pump, the material is stirred evenly in tens of seconds to a few minutes, stirring and vacuuming are carried out simultaneously.
l The rotation speed of the revolution can be independently controlled, and it is designed for some materials that are very difficult to stir evenly.

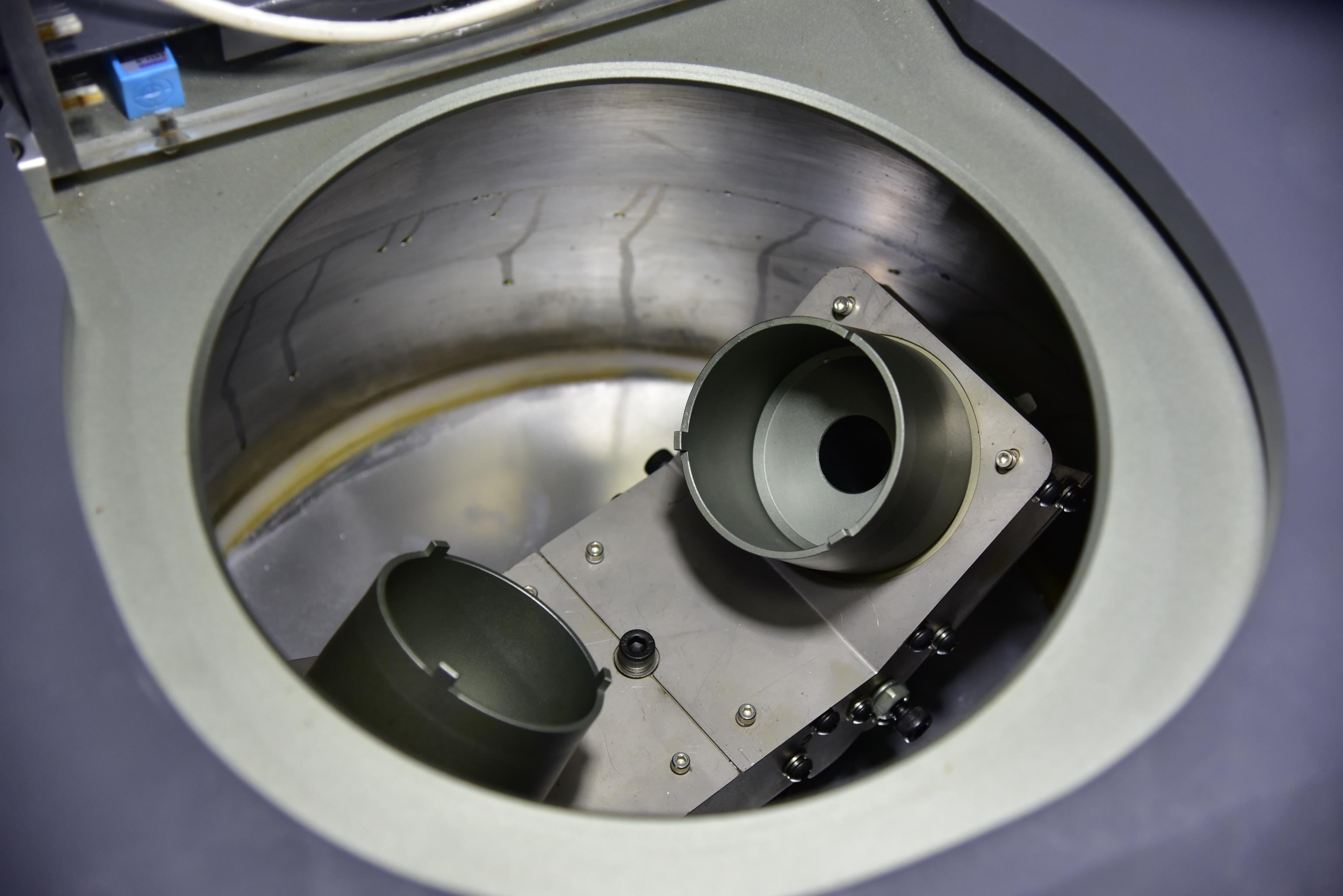

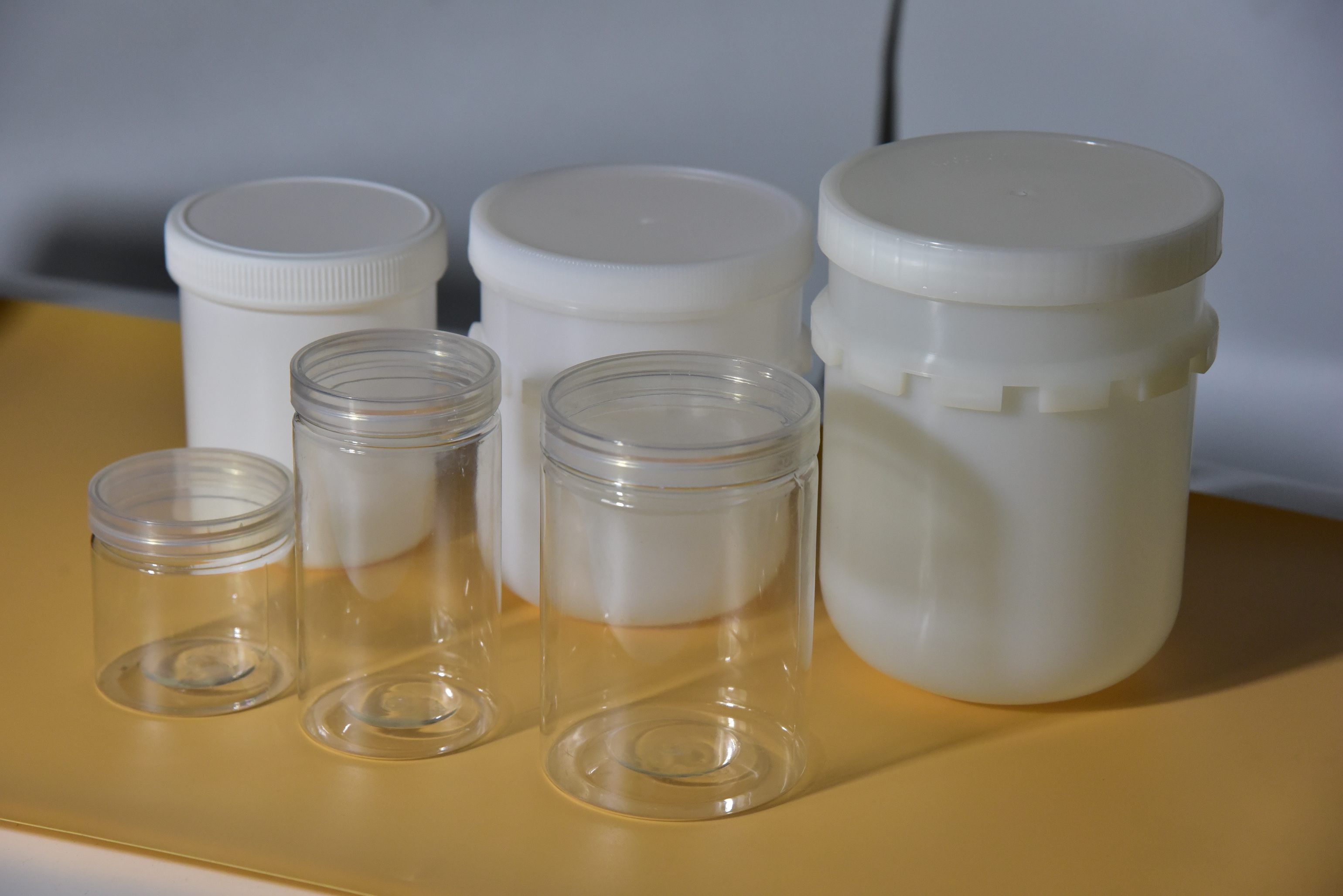

l Equipped with different switching fixtures, pins and cups, materials within a few grams to 300 grams can be stirred, which can meet all requirements from test to mass production.
l It can store 20 sets of data (can be customized), and each set of data can be divided into 5 sections to set different parameters such as time, speed, vacuum degree, etc., which can cope with the stirring defoaming requirements of most materials.
l The maximum speed can reach 2500 revolutions per minute, and all kinds of high-viscosity materials can be evenly stirred in a short time.
l The key components are made of big brands in the industry to ensure the stability of long-term use of the machine with high load.
l Some functions of the machine can be customized according to customer requirements.
Technical parameter
|
Equipment type |
BL-THA700(350ml) |
|
Maximum agitation |
350ml,2*180g |
|
Working mode |
Vacuum/rotation/revolution/non-contact |
|
Revolution speed |
200-2500rpm, accuracy 1rpm(asynchronous motor) |
|
Rotation speed |
Fixed specific speed, accuracy 1rpm(servo motor) |
|
Setting time |
0-300SX5(total 5 stages), accuracy 1S |
|
Continuous running time |
30mins |
|
Seal chamber |
One die molding |
|
Stored program |
Group 5 (Willenton touch screen) |
|
Vacuum degree |
100kPa to-100kPa |
|
Power supply |
AC220V,50Hz/60Hz,2.3KW |
|
Working environment |
10-35℃,35-80%RH |
|

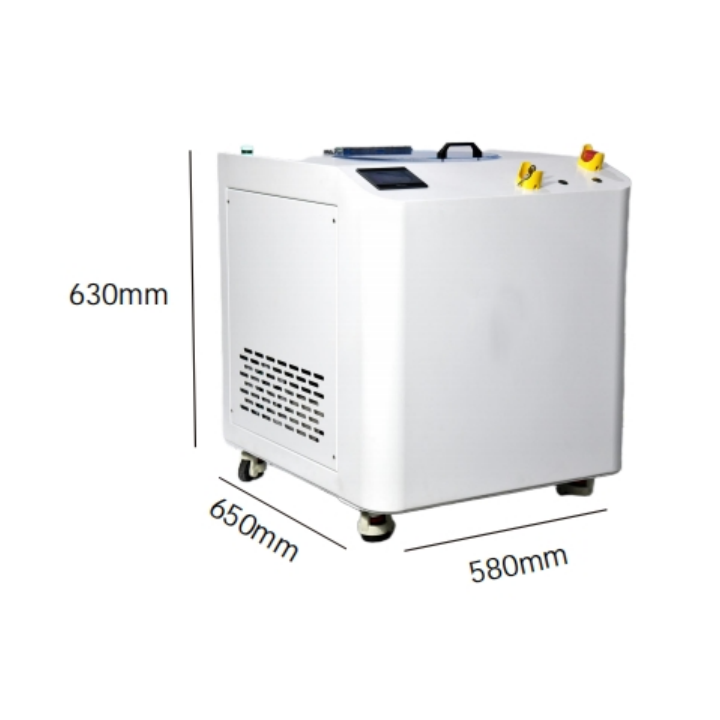

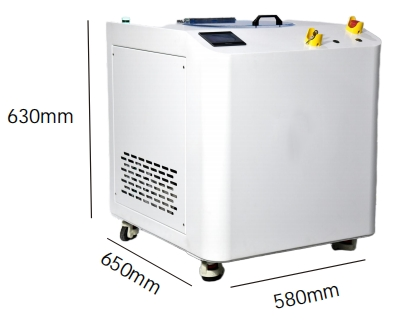

Overall dimension |
L650mm*W580mm*H630mm |
|
Main engine weight |
150kg |
|
Vacuum setting |
Independent switch/with delay control function/manual setting |
|
Self-check function |
Unbalance over limit automatic alarm reminder |
|
Security protection |
The equipment will stop automatically if it fails The equipment will automatically lock when it is running The equipment will stop immediately once the cover is opened |
Product details:
