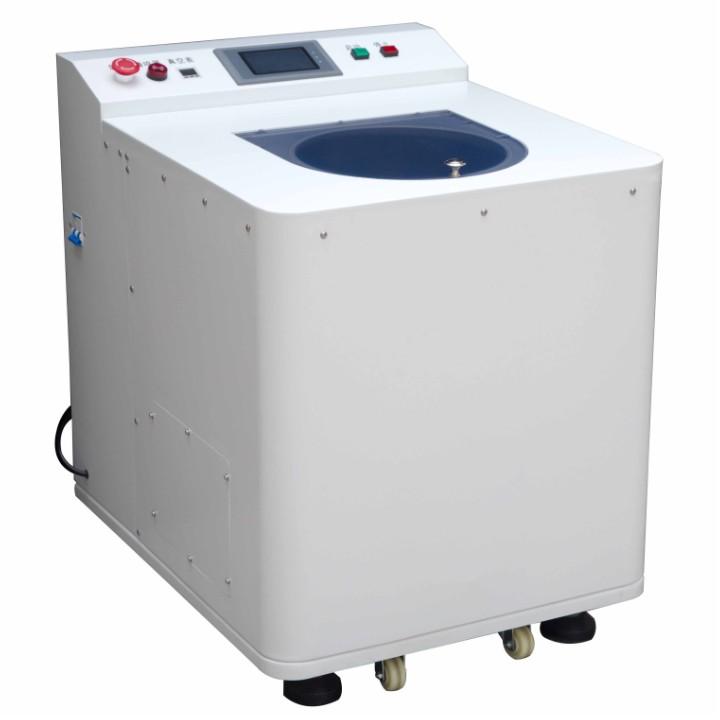

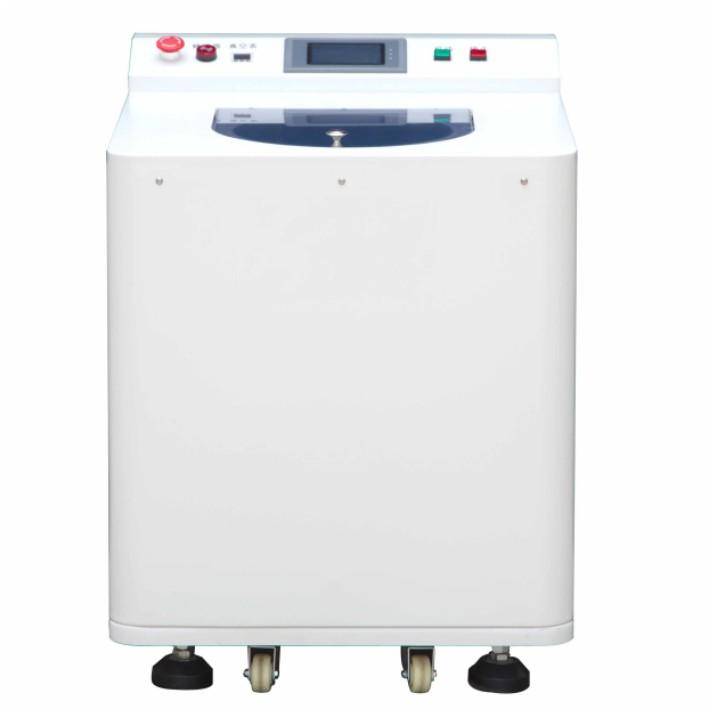

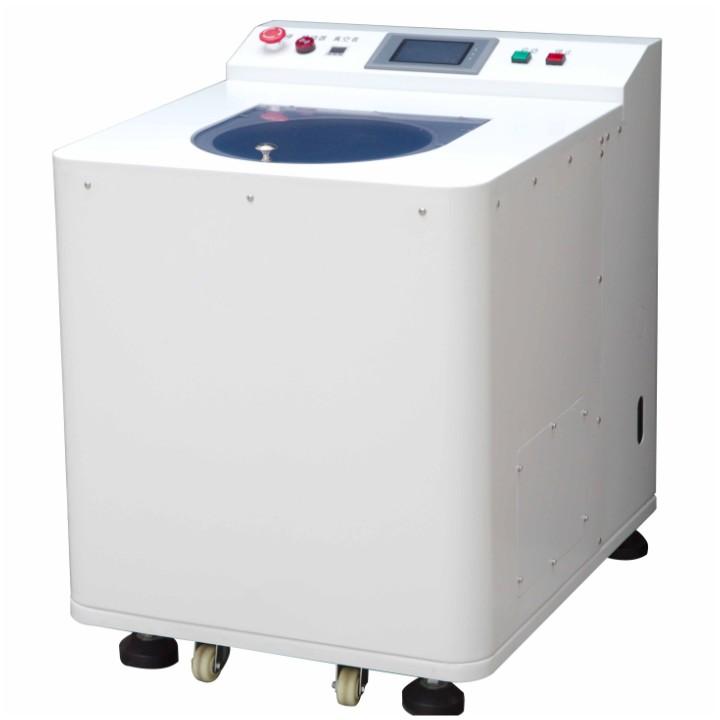

Lab 4000ML Vacuum Stirring Deaeration Mixer with 3 Standard Containers of 4000ML 1500ML 900ML
Product introduction
1. The material is vacuumized while rotating in the container, and the stirring, dispersing and defoaming of high viscosity materials can be realized in a few minutes
2. Spiral bevel gear drive; Its stable and low noise mechanical transmission. Low failure rate and long service life
3. The overall rotary arm is convenient to maintain. Our company can first provide assembly parts to ensure that customers work 24 hours a day
4. No rod stirring no pollution, no damage to material properties
5. High rotation speed, high efficiency, high viscosity glue can also be perfectly mixed evenly
6. Equipped with unused cups and transition sleeve, large machine can choose small cups, easy to realize the size of the container conversion.
7. Various jigs can be customized according to customers' requirements to meet customers' requirements of directly using different containers
Industries used: Semiconductor lighting (LED), photovoltaic, lithium batteries, capacitors, fine chemicals, etc
Applicable materials: all kinds of particles (phosphor, chemical powder, metal particles, etc.), liquid glue (silica gel, all kinds of adhesives, conductive glue, printing ink, etc.), metal slurry (silver slurry aluminum slurry, etc.)
Characteristics
Main shaft: Swiss Yisheng Hundred S136 mirror mold steel, after multiple heat treatment, the overall hardness of HRC62 degrees. The whole shaft is ground, and the whole runout is not more than 1 wire. Sealing surface after mirror grinding, to achieve surface roughness 0.02um mirror effect, very low friction coefficient, its own super wear wear on the sealing ring is very little, to achieve a long life of high tightness. No air leakage for 10 years
Seal ring: The ultra-wear-resistant seal ring made by Bayer company of Germany is adopted. The wear-resistant capacity can reach the linear speed of 40M/S. The linear speed of our equipment is only 6M/S at 2500 RPM. The pressure can withstand 20KG/CM3. No air leakage for ten years
Vacuum pump: Small Diamad(s masonry class) vacuum pump adopted German technology, the noise is 50 decibels in the limit vacuum, one of the highest levels in the same level
Transmission: The first domestic bicycle spiral BEvel gear type structure used in stirring and defoaming machine, stable operation, low noise, long life
Rotating body: The whole rotating arm, all imported from the United States aviation magnesium aluminum 7075 whole processing, to ensure the precision and stability of the product, the center error is not more than ±0.02. High interchangeability, the rotary arm of the same type of machine is interchangeable, easy to maintain.
Parameter
|
Name |
Vacuum planetary gravity mixer (vacuum stirring deaerator) |
|
Model |
ITT-4000S |
|
Purpose |
It is suitable for dispersion, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin etc.). |
|
Standard container |
4000ml（HDPE φ173*193） 1500ML(HDPEφ130×146) 900ML(HDPEφ104×124) |
|
Maximum handling capacity |
400g~6KG；≤2200mL； |
|
Revolution |
200~1500 rpm stepless speed regulation, input at will according to the actual needs of users, and adjust 1 rpm; |
|
Rotation |
Constant speed ratio 0.9; |
|
Set time |
0~3000S ⅹ 5 (five steps in total), accuracy 1s; |
|
Parameter storage |
5 groups; |
|
Vacuum degree |
-100KPa, accuracy 0.1KPa; |
|
Vacuum source |
Built in two-stage advanced vacuum pump 240L/min (=4L/s=14~16m ²/ Hours);
Absolute limit pressure (partial pressure 5 * 10-2Pa and 0.05Pa);
Absolute limit pressure (full pressure 4 * 10-1Pa and 0.4Pa); |
|
Vacuum setting |
Vacuum independent switch, with vacuum delay function, the vacuum degree can be adjusted at will; |
|
Bearing |
Japan NSK bearing; |
|
Control system |
Man machine dialogue, Chinese and English interface, touch screen operation; |
|
Balance adjustment |
Double cup configuration is balanced; |
|
Transmission mode |
Gear transmission; |
|
Working principle |
Public autorotation wingless centrifugal gravity mode; |
|
Alarm device |
Detection of uncovered upper cover during operation; |
|
Safeguard |
When the upper cover is locked during operation, it will stop working when the upper cover is opened; |
|
Applicable temperature and humidity |
10~40 ℃； 20~80% RH (without dense mist like moisture); |
|
Voltage |
AC220V±5%； 1-Phase； 50~60Hz； |
|
Power |
The rated power of main engine is 2000w, including vacuum pump; |
|
Overall dimensions |
L800×W670×H820mm； |
|
Main engine weight |
170Kg； |
|
Equipment characteristics |
The rotation and revolution movement can produce nearly 800G centrifugal gravity at most, which can disperse and defoaming strongly; There is no spiral blade to realize mixing and dispersion in the container; No need to clean and do not pollute materials; No damage to the properties of materials (especially fibrous materials); Human computer interaction, convenient operation; Ultra small, ultra light and ultra quiet optimized design. |
|
Selection Guide |
||||
|
|
Model |
Full capacity of machine standard cup |
Maximum loading capacity of single cup |
Total charge capacity |
|
Single cup |
ITT-300 |
300ML |
150ML |
150ML |
|
ITT-900 |
900ML |
450ML |
450ML |
|
|
Double cup： |
ITT-300S |
300ML |
150ML |
300ML |
|
ITT-900S |
900ML |
540ML |
1080ML |
|
|
ITT-1500S |
1500ML |
900ML |
1800ML |
|
|
ITT-4000S |
4000ML |
2200ML |
4400ML |
|
|
ITT-10000S |
10L |
5L |
10L |
|
