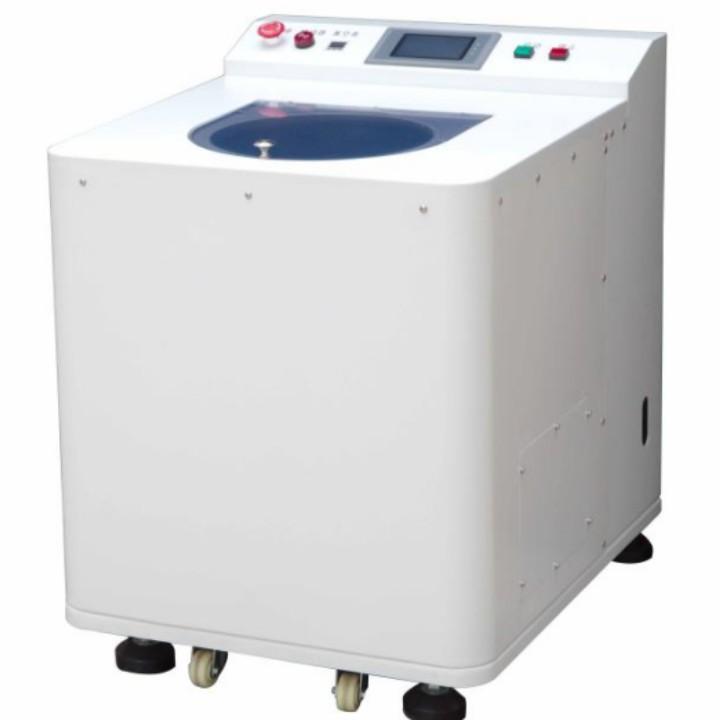

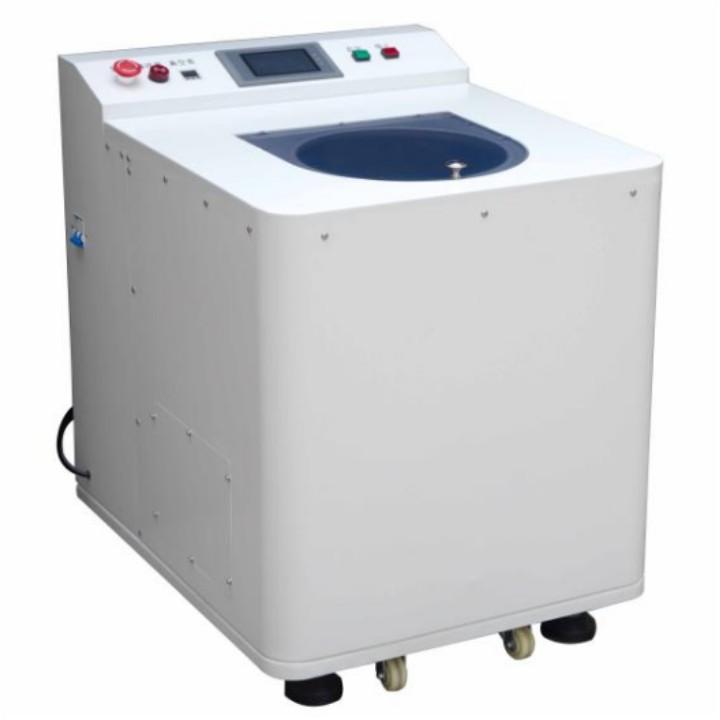

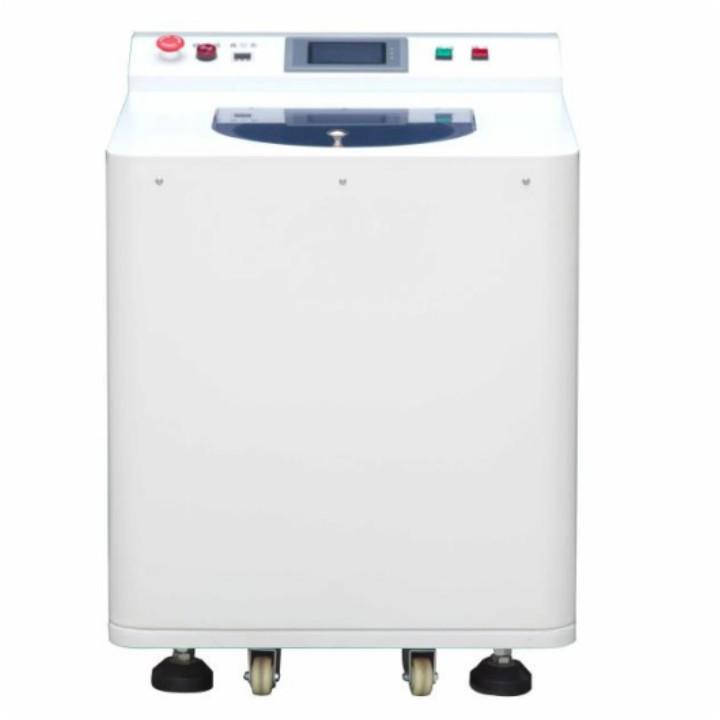

Double Cup Vacuum Stirring and Defoaming Mixer with 6 Containers
Product description:
1. The material is evacuated while rotating and revolving in the container, and the stirring, dispersion and defoaming of high-viscosity materials can be realized in a few minutes.
2. Spiral bevel gear drive: It has a stable and low-noise mechanical drive. Low machine failure rate and long service life
3. The overall arm maintenance is convenient. Our company can first provide assembly accessories to ensure that customers work 24 hours a day.
4. Rodless stirring is pollution-free and does not damage the material properties.
5. High-speed revolution and rotation, high efficiency, high-viscosity glue can also be perfectly mixed evenly.
6. Equipped with unused cups and transition sleeves, large machines can choose small cups, and easily realize the conversion of large and small containers.
7. Various fixtures can be customized according to customer requirements to meet the requirements of customers directly using different containers.
Application field: semiconductor lighting (LED), photovoltaic, lithium batteries, capacitors, fine chemicals, etc.
Applicable materials: various particles (phosphor powder, chemical powder, metal microparticles, etc.), liquid glue (silica gel, various adhesives, conductive glue, printing ink, etc.), metal paste (silver paste, aluminum paste, etc.)
Features:
1. Spindle: Adopt Swiss ASSAB S136 mirror mold steel, after multiple heat treatment, the overall hardness reaches HRC62 degrees. The shaft is ground as a whole, and the full runout does not exceed 1 wire. The sealing surface is then mirror-polished to achieve a mirror-like effect with a surface roughness of 0.02um. The friction coefficient is extremely low, and the self-super wear-resisting wear of the sealing ring is very small, achieving high sealing performance with a long life. 10 years without air leakage.
2. Sealing ring: The super wear-resistant sealing ring of German Bayer company is adopted, and the wear resistance capacity can reach the line speed of 40M/S. The line speed of our equipment is only 6M/S at 2500 rpm. The pressure can withstand 20KG/CM3. Ten years without leaks.
3. Vacuum pump: Using German technology Small Diamad (s masonry grade) vacuum pump, the noise is 50 decibels in the ultimate vacuum, one of the highest levels in the same level.
4. Transmission: The bicycle spiral bevel gear structure pioneered in China is used in the stirring and defoaming machine, with stable operation, low noise and long service life.
5. Rotating body: It adopts an integral rotating arm, which is all made of magnesium-aluminum 7075 imported from the United States, which ensures the accuracy and later stability of the product, and the center error is not greater than ±0.02. The whole arm can be interchanged arbitrarily, which is convenient for maintenance.
Parameter:
|
Name |
Vacuum stirring and defoaming machine (vacuum planetary centrifugal mixer) |
|
Model: |
ITT-300S |
|
Purpose: |
It is suitable for dispersing, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin, etc.). |
|
Standard container: |
300ml (HDPE φ78*90) or 150ml (HDPE φ60*72); Syringe below 300cc; |
|
Maximum throughput: |
10g-350g; ≤150ml; |
|
Revolution: |
200-2500rpm stepless speed regulation, adjust 1rpm according to the actual needs of users; |
|
Rotation: |
Fixed speed ratio 0.65; |
|
Set time: |
0-3000Sⅹ5 (five steps in total), precision 1s; |
|
Parameter storage: |
5 groups; |
|
Vacuum degree: |
-100KPa, precision 0.1KPa; |
|
Vacuum source: |
Built-in two-stage advanced vacuum pump 240L/min (=4L/sec=14-16m²/hour);Absolute limit pressure (partial pressure 5*10-2Pa and 0.05Pa); Absolute limit pressure (full pressure 4*10-1Pa and 0.4Pa); |
|
Vacuum settings: |
Vacuum independent switch, with vacuum delay function, vacuum degree can be adjusted arbitrarily; |
|
Bearing: |
Japan NSK bearing; |
|
Control system: |
Human-machine dialogue, Chinese and English interface, touch screen operation; |
|
Balance adjustment: |
Double cup configuration balance; |
|
Transfer method: |
Gear drive; |
|
Working principle: |
Public rotation wingless centrifugal gravity method; |
|
Alarm system: |
Detection of uncovered upper cover during operation; |
|
Safety protection: |
During operation, the upper cover is locked, and when the upper cover is opened, it stops working; |
|
Applicable temperature and humidity: |
10-40 ℃; 20-80%RH (no foggy moisture, just fine); |
|
Voltage: |
AC220V±5%; 1-Phase; 50-60Hz; |
|
Power: |
The rated power of the host is 1000w, including the vacuum pump, and the standby is 15w; |
|
Dimensions: |
L670×W560×H610mm; |
|
Host weight: |
120Kg; |
|
Features: |
Rotation and revolution motion can generate a centrifugal gravity of up to 800G, strong dispersion and de-foaming; no spiral blades, realize stirring and dispersion in the container; no need to clean, no pollution to materials; no damage to the properties of materials (especially fibrous materials); Human-computer interaction, easy to operate; ultra-small, ultra-light, ultra-quiet optimized design. |
Selection guide
Machine type
Machine standard cup full cup capacity
Maximum filling capacity of a single cup
Total charge capacity
Single cup:
ITT-300
300ML
150ML
150ML
ITT-900
900ML
450ML
450ML
Double cup:
ITT-300S
300ML
150ML
300ML
ITT-900S
900ML
540ML
1080ML
ITT-1500S
1500ML
900ML
1800ML
ITT-4000S
4000ML
2200ML
4400ML
ITT-10000S
10L
5L
10L
