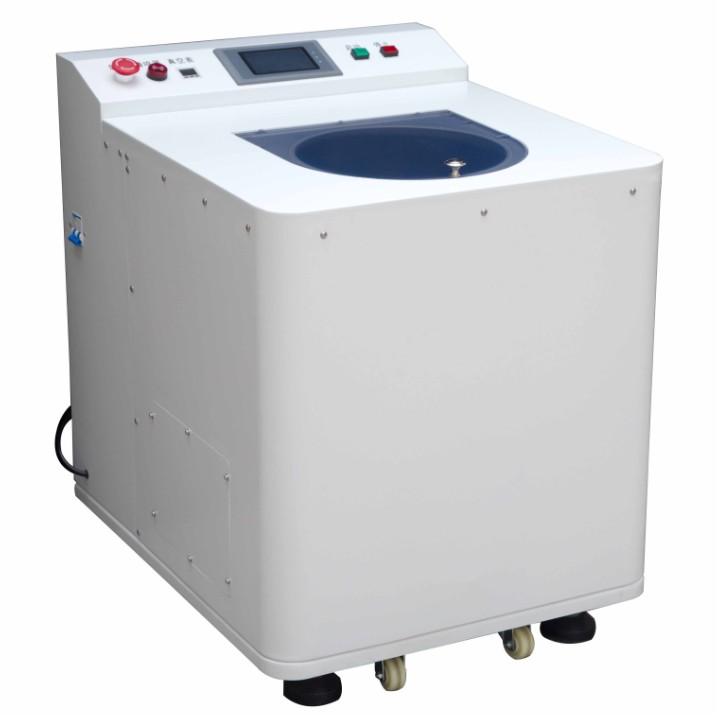

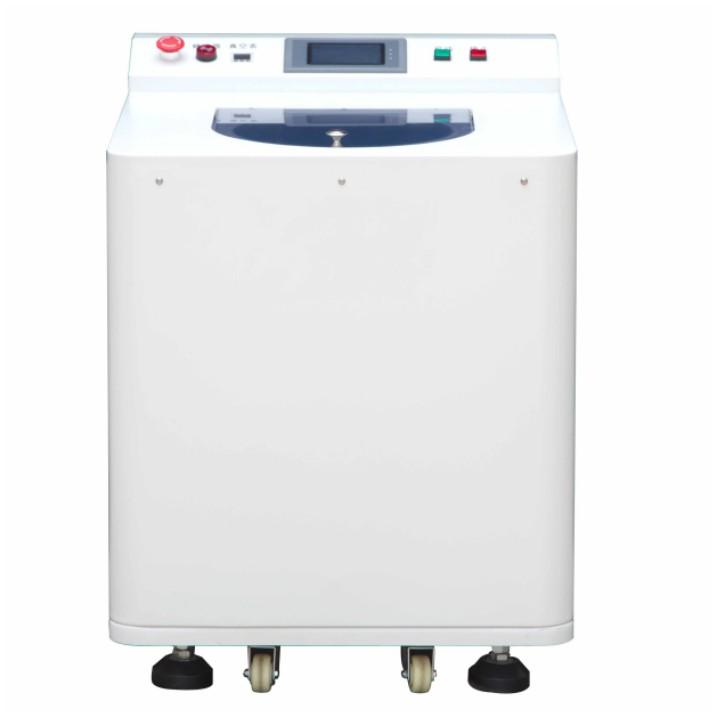

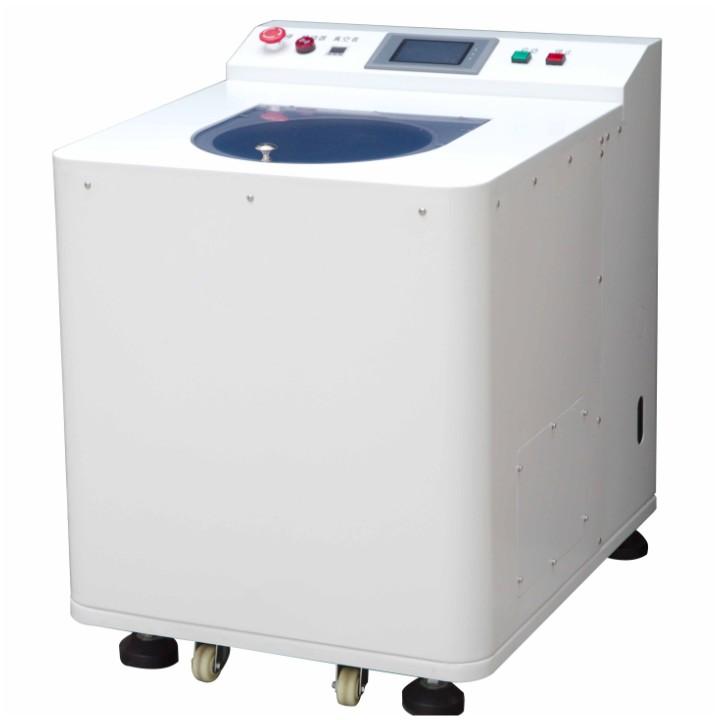

Laboratory Vacuum Stirring Defoaming Machine with Adjustable Rotation Ratio
Product Introduction
1. The material rotates in the container at the same time vacuum, a few minutes to achieve high viscosity material mixing, dispersion, defoaming treatment
2. Helical bevel gear transmission: its stable and low noise mechanical transmission.The machine has low failure rate and long life
3. The overall swivel arm is easy to maintain.Our company can provide assembly parts to ensure customers 24 hours non-stop work
4. Rod-free mixing is pollution-free and does not damage the material properties.
5. High rotation speed, high efficiency, high viscosity glue can also perfect mixing
6. Equipped with different cups and transition sets, large machine can choose small cups, easy to realize the size of the container
7. According to customer requirements can be customized a variety of fixtures, to meet the requirements of customers directly using different containers
Applicable industries: semiconductor lighting (LED), photovoltaic, batteries, capacitors, fine chemicals, etc
Applicable materials: all kinds of particles (phosphor, chemical powder, metal particles, etc.), liquid glue (silicone, various adhesives, conductive glue, printing ink, etc.), metal paste (silver paste, aluminum paste, etc.)
Introduction to the characteristics of Stirring and defoaming machines
|
Spindle |
Adopt Swiss Yisheng Bai S136 mirror die steel, after multiple heat treatment, the overall hardness reaches HRC62 degrees.The shaft is grinded as a whole, and the total runout is not more than 1 wire.After mirror grinding, the sealing surface achieves surface roughness 0.02um mirror effect, the friction coefficient is very low, the wear of its own super wear-resistant sealing ring is very little, and the high sealing performance of super long life is realized. 10 years no air leakage |
|
Sealing ring |
The seal is made by Bayer, Germany, with a wear-resistant capacity of 40M/S, compared to 6M/S at 2500 rpm. The pressure can withstand 20KG/c m. No air leakage for 10 years. |
|
Vacuum pump |
Small Diamad(s) vacuum pump with German technology, 50 dB noise at ultimate vacuum, one of the highest levels in its class. |
|
Transmission |
Adopt the first domestic automobile helical bevel gear type structure used in the agitator defoaming machine, stable operation, low noise, long life |
|
Rotating body |
Adopt the whole rotary arm, all adopt the United States imported aviation magnesium aluminum 7075 integral processing, to ensure the accuracy and later stability of the product, the center error is not more than 0.02.High interchangeability, the same type of machine swivel into arbitrary interchange, easy maintenance. |
Product parameters
|
Name |
Vacuum Planetary Gravity Mixer (Vacuum stirring Defoaming Machine) |
|
Model number: |
ITT-4000SS |
|
Uses: |
Suitable for dispersion, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin etc.).Standard container: 4000ml (HDPEφ 173*193) 1500ML(HDPEφ130×146)900ML(HDPEφ104×124). |
|
Standard container: |
4000ml (HDPEφ 173*193) 1500ML(HDPEφ130×146) 900ML(HDPEφ104×124) |
|
Maximum processing capacity: |
400g~5.5KG*2;≤2200mL*2; |
|
Revolution: |
200~1500rpm stepless speed regulation, adjust 1rpm according to user's actual demand;Rotation and revolution speed ratio 0~130% adjustable; |
|
Set time: |
0~3000S x 5(five steps in total), accuracy 1s; |
|
Parameter storage: |
5 groups; |
|
Vacuum: |
-100KPa, accuracy 0.1KPa; |
|
Vacuum source: |
Built-in two-stage advanced vacuum pump 240L/ min (=4L/ s =14~16m²/ hour); |
|
Vacuum setting: |
Vacuum independent switch, with vacuum delay function, vacuum degree arbitrary adjustment; |
|
Bearing: |
Japanese NSK bearings; |
|
Control system: |
Man-machine dialogue, Chinese and English interface, touch screen operation; |
|
Balance adjustment: |
Double cup configuration balance; |
|
Transmission mode: |
Gear drive; |
|
Working principle: |
Male rotation without wing type centrifugal gravity mode; |
|
Alarm device: |
Run the upper cover is not covered detection; |
|
Safety protection: |
When the upper cover is locked and the upper cover is opened, it stops working; |
|
Applicable temperature and humidity: |
10~40 ℃;20~80%RH (no fog-like moisture, can); |
|
Electric pressure: |
AC220V±5%;1-Phase;50 to 60Hz; |
|
Power rate: |
Rated power of main engine 2000w including vacuum pump; |
|
Appearance size: |
L800×W670×H820mm; |
|
Main machine weight: |
170Kg; |
|
Equipment features: |
The maximum rotation and revolution motion produces nearly 400G centrifugal gravity, strong dispersion and defoaming;There is no spiral blade to achieve stirring and dispersion in the container;No cleaning, will not pollute the material;Does not damage the material (especially fiber material) character;Man-machine interaction, easy to operate;The optimized design of super small, super light and super quiet. |
|
Selection guide |
||||
|
|
Machine model |
Machine standard cup full cup capacity |
Maximm filling capacity for a single cup |
Total loading capacity |
|
Single cup: |
ITT-300 |
300ML |
150ML |
150ML |
|
ITT-900 |
900ML |
450ML |
450ML |
|
|
Double cup: |
ITT-300S |
300ML |
150ML |
300ML |
|
ITT-900S |
900ML |
540ML |
1080ML |
|
|
ITT-1500S |
1500ML |
900ML |
1800ML |
|
|
ITT-4000S |
4000ML |
2200ML |
4400ML |
|
|
ITT-4000SS |
4000ML |
2200ML |
4400ML |
|
|
ITT-5000S |
5000ML |
2200ML |
4400ML |
|
|
ITT-5000SS |
5000ML |
2200ML |
4400ML |
|
|
ITT-10000S |
10L |
5L |
10L |
|
|
Others: public rotation adjustable version, no oil pump version, no vacuum version of stirring capacity refer to the above |
||||
