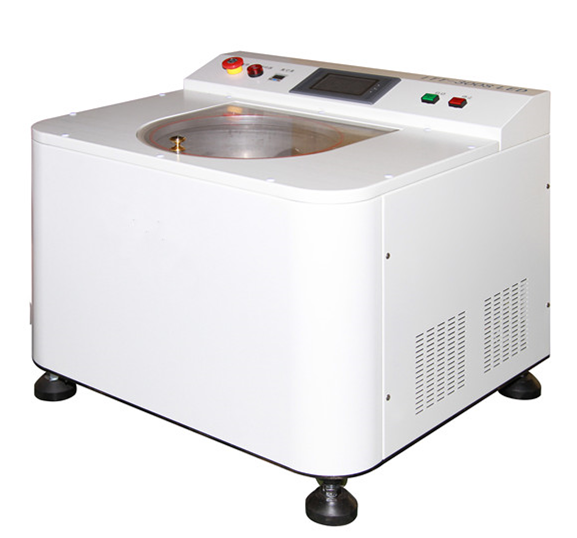

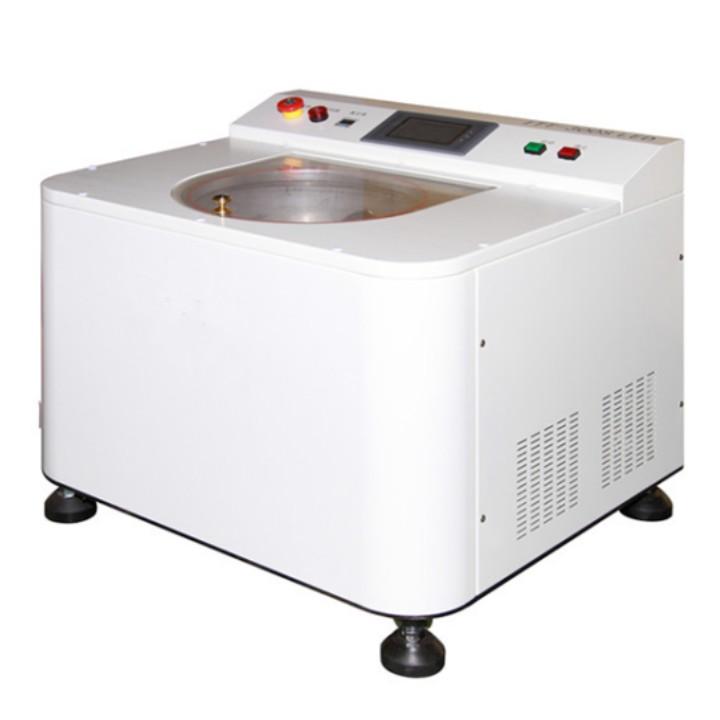

Double Cup Vacuum Centrifugal Stirring Defoaming Machine with Vacuum Pump

Product Description

1: The material rotates in the container at the same time vacuum, a few minutes to achieve high viscosity material mixing, dispersion, defoaming treatment.

2: spiral bevel gear transmission: and stable and low noise mechanical transmission.The machine has low failure rate and long life.

3: The overall boom maintenance is convenient.Our company can provide assembly parts to ensure you 24 hours non-stop work.

4: No rod stirring pollution-free, no damage to material properties.

5: Standard machine 0~2000RPM, high speed and efficient.Machines up to 3000RPM can be customized for special requirements.

6: According to customer requirements can be customized a variety of fixtures, to meet customers directly use different packaging requirements.

Applicable industries: semiconductor lighting (LED), photovoltaic, lithium batteries, capacitors, fine chemicals, etc

Applicable materials: all kinds of particles (phosphor, chemical powder, metal particles, etc.), liquid glue (silicone, various adhesives, conductive glue, printing ink, etc.), metal paste (silver paste, aluminum paste, etc.).

Introduction to the characteristics of Intite Agitating defoaming machine

Spindle: Made from Swiss ASSAB S136 mirror finish mould steel, with multiple heat treatments to achieve an overall hardness of HRC 62 degrees. The shaft is ground as a whole, with a full runout of no more than 1 thread. The sealing surface is then mirror ground to achieve a surface roughness of 0.02um mirror effect, with a very low coefficient of friction and super wear resistance to itself, resulting in minimal wear to the seal ring and a high sealing performance with a very long life. This is one of the reasons why many of our customers maintain a negative pressure of -98Kpa or more after several years of use.

Sealing ring: Adopting German Bayer super wear-resistant seals, wear resistance can reach 40M / S line speed, our equipment in 2000 rpm line speed only 4M / S. Pressure can withstand 20KG / c square meters. This is the second treasure of many of our customers after several years of use, the negative pressure still remains above -98Kpa.

Vacuum pump: Adopting international advanced technology to improve the forced oil circulation lubrication of the pump, good lubrication, low wear, long life. This is the third treasure of many of our customers to maintain the negative pressure above -98Kpa after several years of use.

Gear: Adopting the structure of automobile spiral bevel gear, it runs smoothly with low noise and long life.

Swivel arm: The whole rotating arm is made of 7075 imported from the United States, which ensures the accuracy and stability of the product, with a central error of no more than ±0.02. The interchangeability is high, and the rotating arm of the same type of machine can be interchanged at will, making maintenance easy.

Specification parameters:
