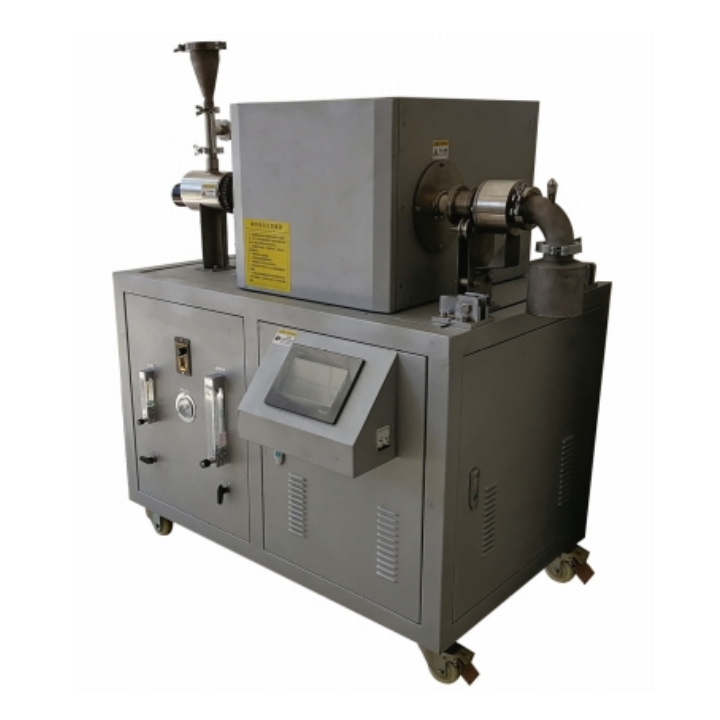

Lab 1100C Rotary Tube Furnace Optional Resistive, Microwave, or Hybrid Heating Modes
Summarize
The double heat source rotary tube furnace is a standard multi-heat source rotary tube furnace. Resistive, microwave, or hybrid heating modes can be set. It is suitable for the preparation of new materials and the synthesis, burning and reduction of other particles and powders.
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) The material is dynamically turned in the furnace, and the heat is uniform, and the reaction is fast and sufficient;
3) Adopt a variety of heating methods, suitable for a wider range of materials;
4) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved
Technical parameter
|
Model
Parameter |
HY-XZ1510E |
HY-XZ3010E |
|
|
Voltage |
220±10V，50Hz |
380±10V，50Hz |
|
|
Microwave output power |
0.01~1.40kW, continuously adjustable (Panasonic) |
0.01~2.80kW, continuously adjustable (Panasonic) |
|
|
Electric power |
3kw |
4kw |
|
|
Heating space (diameter x length) |
φ40x130mm |
Φ80x250mm |
|
|
Microwave frequency |
2.45GHz |
||
|
Tilt Angle |
-5~+35° |
||
|
Rotational speed |
5~30 RPM |
||
|
Operating temperature |
≤1100℃ |
||
|
Temperature measurement method |
Thermocouple/infrared |
||
|
Static limit vacuum |
≤100Pa |
||
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
||
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
||
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
||
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
||
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
||
|
Main body (L x W x H) |
About 650x700x1200mm |
About 850x850x1300mm |
|
Consumables and optional accessories
