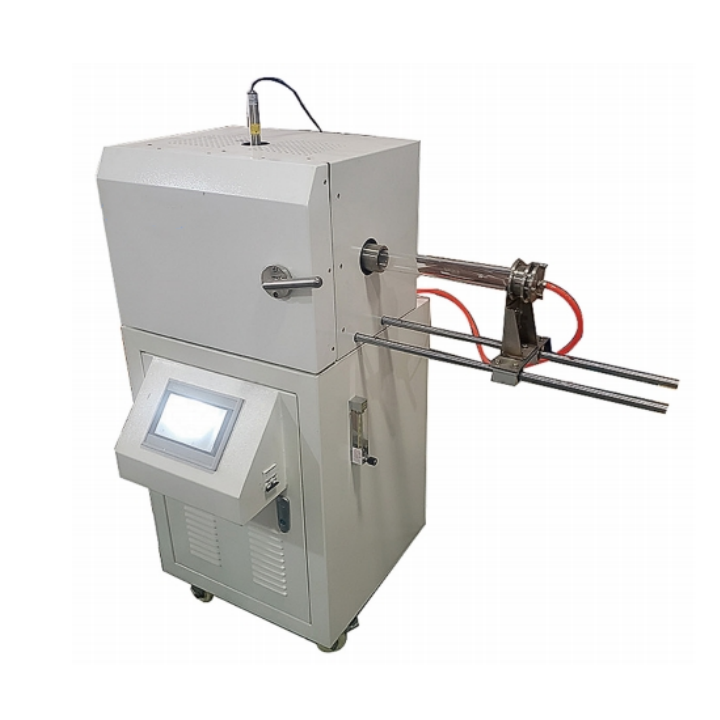

1200C 100Pa Vacuum Microwave Slide Tube Furnace Optional Heating Space φ40x130mm or φ60x140mm
Summarize
Microwave slide tube furnace is a kind of microwave tube furnace with vacuum atmosphere which can be heated up quickly and cooled down quickly. It has vacuum controllable atmosphere and high temperature experimental environment. It is suitable for silicon carbide coating, ceramic substrate conductivity test, ZnO nanostructure controlled growth, ceramic capacitive atmosphere sintering and graphene oxide reduction expansion experiments.
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) Furnace body and vacuum system integrated design, simple structure, safe and reliable;
3) The furnace tube can be moved to realize rapid heating and cooling; Special insulation structure, energy saving and high efficiency;
4) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved.
Technical parameter
|
Model
Parameter |
HY-ZGS1512 |
HY-ZGS3012 |
|
|
Voltage |
220±10V，50Hz |
220±10V，50Hz |
|
|
Microwave output power |
0.01~1.40kW, continuously adjustable (Panasonic) |
0.01~2.80kW, continuously adjustable (Panasonic) |
|
|
Heating space (diameter x length) |
φ40x130mm |
φ60x140mm |
|
|
Microwave frequency |
2.45GHz |
||
|
Operating temperature |
<1200℃ |
||
|
Temperature measurement method |
Thermocouple/infrared |
||
|
Static limit vacuum |
≤100Pa |
||
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
||
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
||
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
||
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
||
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
||
|
Main body (L x W x H) |
About 700x550x900mm |
About 800x600x1000mm |
|
