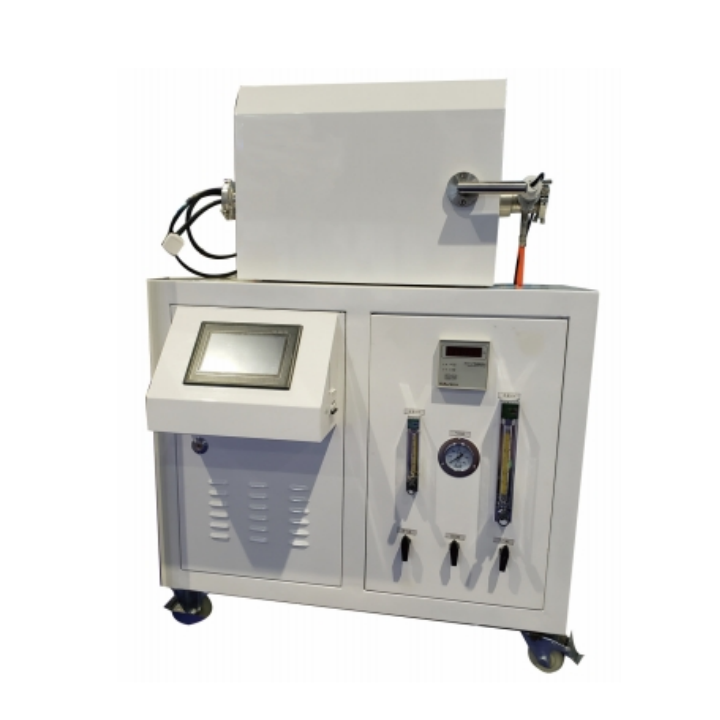

Intelligent Heating High Temperature Microwave Tube Furnace with Double Heat Source
Summarize
Double heat source high temperature tube furnace is a standard multi-heat source microwave high temperature tube experimental workstation, can be set resistance, microwave or mixed heating mode, especially suitable for different heating methods of synthesis, roasting, heat treatment and sintering and other comparative process research.
Main feature
1) Industrial brand microwave source, high quality resistance components, various heating methods;
2) Furnace body and vacuum system integrated design, simple structure, safe and reliable;
3) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved;
4) Intelligent switching of heating modes, wider application scenarios.
Technical parameter
|
Model
Parameter |
HY-ZG1512E |
HY-ZG1516E |
|
|
Voltage |
220±10V，50Hz |
220±10V，50Hz |
|
|
Microwave output power |
0.01~1.40kW, continuously adjustable (Panasonic) |
||
|
Electric power |
3KW |
||
|
Heating space (diameter x length) |
φ40x130mm |
||
|
Microwave frequency |
2.45GHz |
||
|
Operating temperature |
<1200℃ |
<1600℃ |
|
|
Temperature measurement method |
Thermocouple/infrared |
||
|
Static limit vacuum |
≤100Pa |
||
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
||
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
||
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
||
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
||
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
||
|
Main body (L x W x H) |
About 530x430x380mm |
||
